SECURITRON CEPT-10 CONCEALED POWER TRANSFER
Quick Overview
Manufactured By: SECURITRON
Manufacturer Part Number: CEPT-10
IMS Product Code: 2143761
Packaging: Sold Individually
Description:
Securitron CEPT-10 Concealed Power Transfer
Heavy-duty, tamper-resistant concealed electrical power transfer for electrified hardware on doors. Transfers power and data from hinge side of frame to door hardware.
Specifications
- Base Material: Stainless Steel
- Dimensions: 9-1/16"L x 1-3/16"W x 1-7/16"D
- Durability Testing: 1,000,000 cycles
- Finish: 630/US32D - Satin Stainless Steel
- Fire Rating: 3 Hour (ANSI/UL 10C)
- Hinge Compatibility: Butt hinges up to 6in. and continuous hinges
- Material: Stainless Steel
- Power Transfer: 2-18GA and 8-22GA wires
- Wire Configuration: 10 wire
- Windstorm Rating: ANSI/SDI-BHMA A250.13

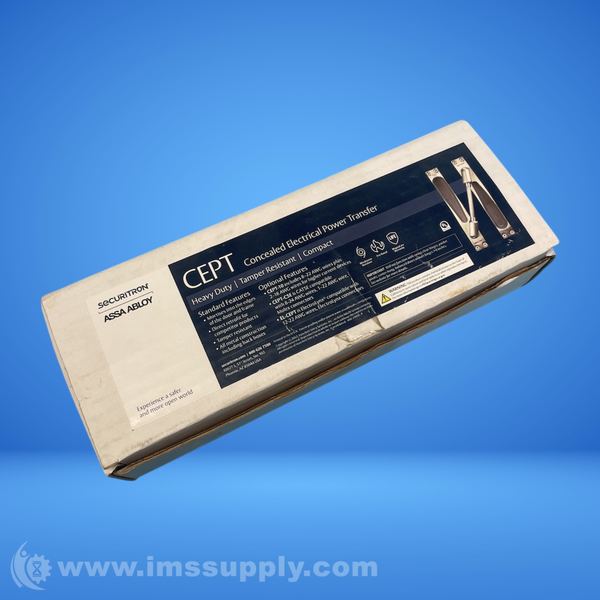

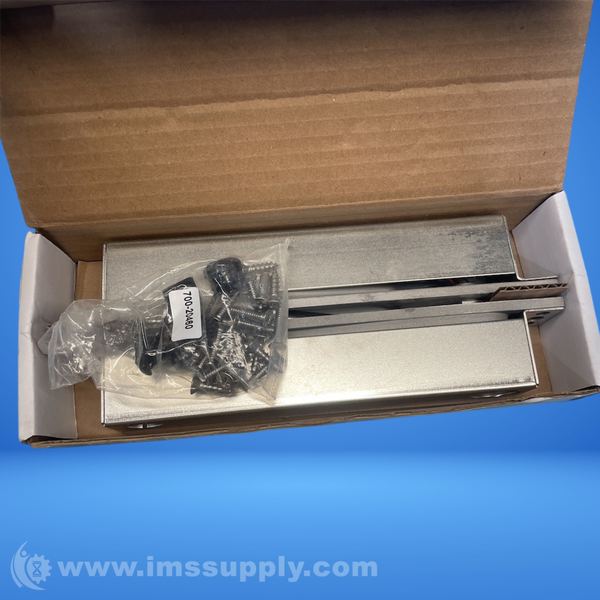

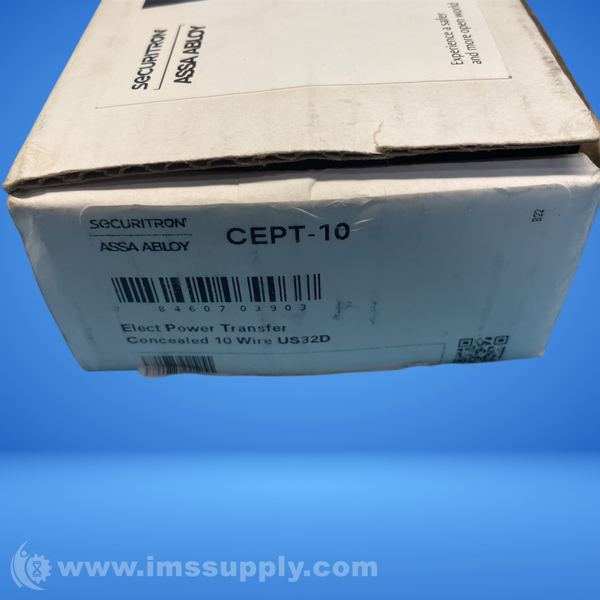

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 33 minutes.
