SECURITRON MKSA MORTISE KEY SWITCH
Quick Overview
Manufactured By: SECURITRON
Manufacturer Part Number: MKSA
IMS Product Code: 2130638
Packaging: Sold Individually
Description:

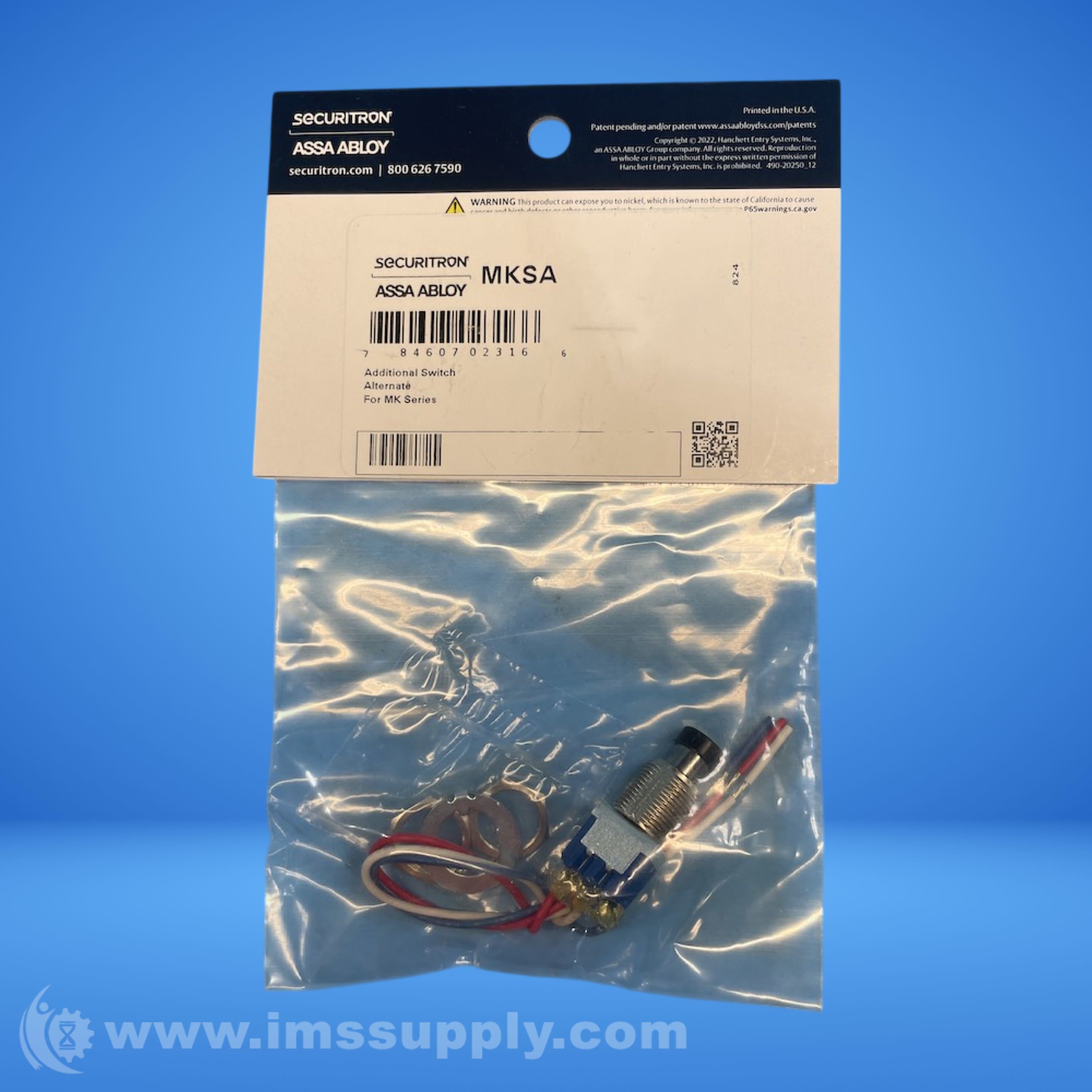

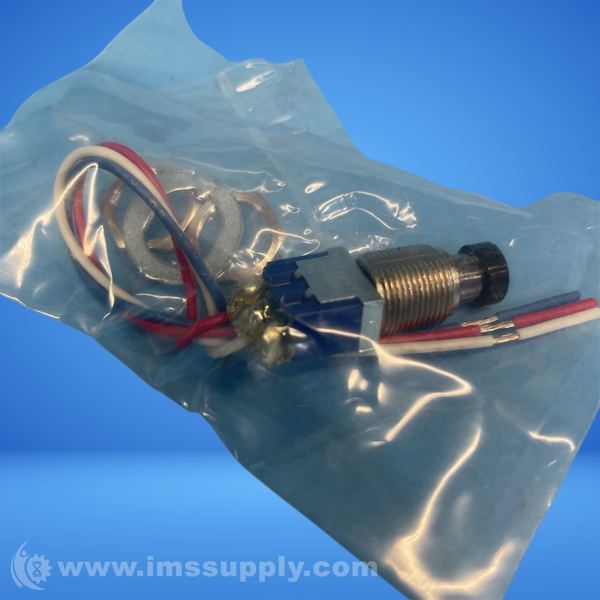

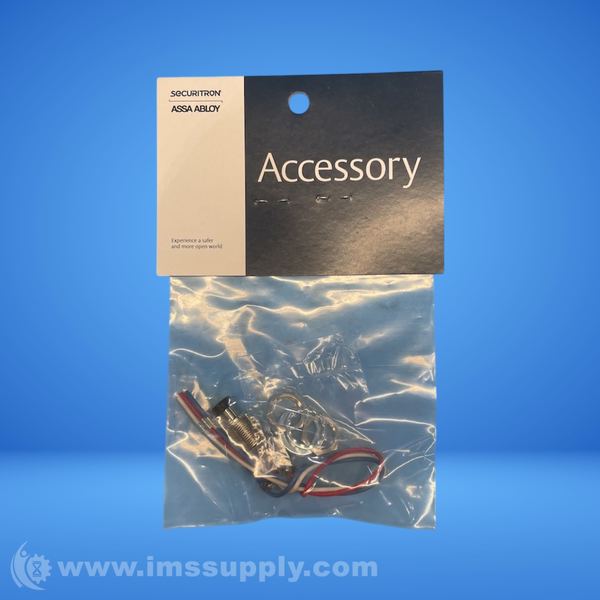

Securitron MKSA Mortise Key Switch
The Securitron MKSA is a mortise key switch designed for electric lock control, alarm panel arming, reset, and override when paired with a mortise cylinder. It features a single-pole, double-throw (SPDT) switch configuration with a 5-amp rating.
Specifications
- Amp Rating: 5
- Circuit State: Double Throw (Select No Or Nc)
- Dimensions: 1-1/8" Length
- Faceplate Size: Approx. 2-3/4" X 4-1/2"
- Finish: US32D Satin Stainless Steel
- Integration: Compatible with 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder
- LED Type: Bi-color
- Lock Type: Accepts Mortise Cylinder
- Material: Stainless Steel
- Mounting: Single-Gang Electrical Box
- Operating Current: 5 Amps
- Security Features: Anti-tamper screws included
- Switch Configuration: SPDT
- Switch Mode: Alternate Action
- Switch State: Maintained
- Switch Type: Single-Pole, Double-Throw
- Type: Mortise Key Switch
- Voltage: 12/24VDC
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 26 In Stock
Ships today if ordered in the next 14 hours and 10 minutes.
