SENSORSWITCH WSX PDT WH WALL SWITCH OCCUPANCY SENSOR
Quick Overview
Manufactured By: SENSORSWITCH
Manufacturer Part Number: WSX PDT WH
IMS Product Code: 2156436
Packaging: Sold Individually
Description:

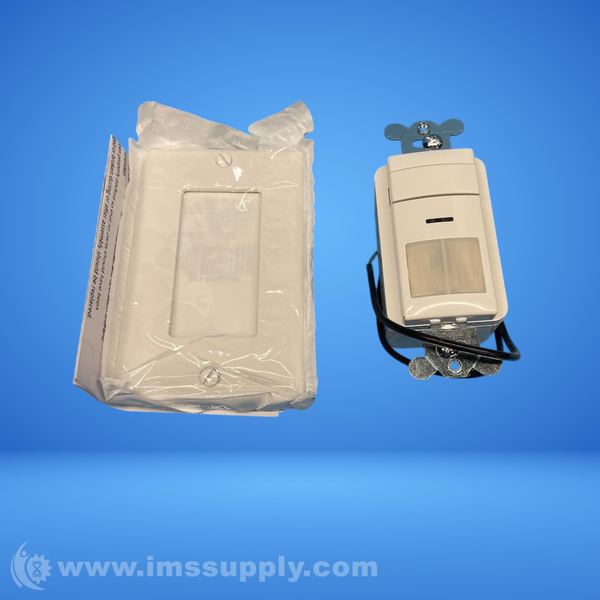

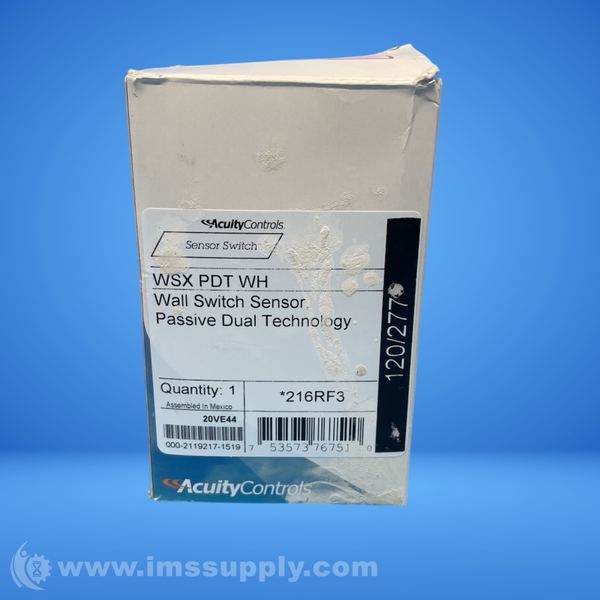

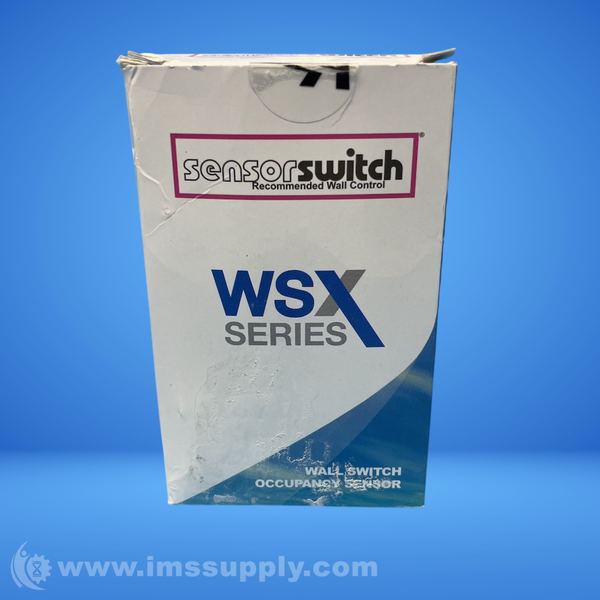

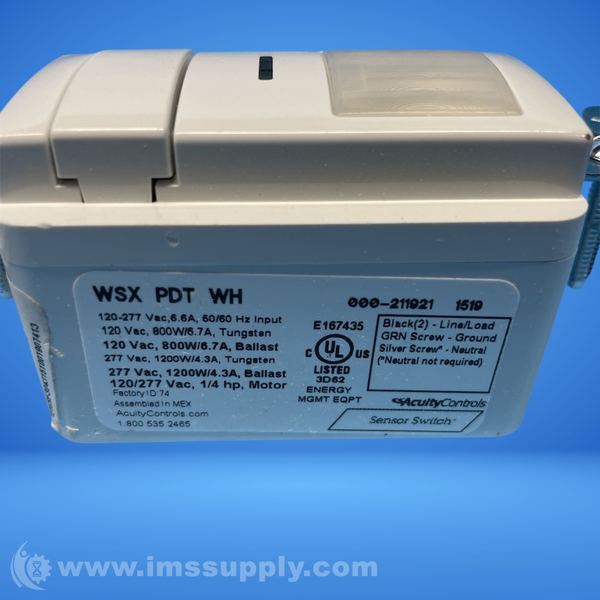

Sensorswitch WSX PDT WH Wall Switch Occupancy Sensor
The WSX family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications.
Specifications
- Material: Plastic
- Mounting Type: Wall
- Sensor Type: Passive Infrared Dual
- Type: Decorator Style Single Relay
- Voltage Rating: 120/277 VAC
- Power Rating: 800/1200 W
- Dimensions: 2.74 in H x 1.68 in W x 1.63 in D
- Coverage: >36 ft
- Series: WSX
- Response Frequency: 50/60 Hz
- Connection Type: Wire
- Color: White
- Load Type: Motor
- Load Rating: 800 Watt at 120 Volt AC, 1200 Watt at 277 Volt AC (Relay), 1/4 HP (Motor)
- Area Coverage: 20 Foot
- Finish: Gloss
- Mounting: Semi Recessed, Surface, 1-Gang Switch Box
- Size: 1.68 Inch Width x 1.63 Inch Depth x 2.74 Inch Height
- Temperature Rating: 0 to 60 degrees C
- Operating Mode: Auto On (Default) or Vacancy
- Time Delay: 30 sec to 20 min
- Standard & Approvals: cULus Listed, RoHS Compliant
- Dimmable: Yes
- Power Source: Hardwired
- Supply Voltage: 120, 277
