SENTRY SC250 AC CURRENT SWITCH
Quick Overview
Manufactured By: SENTRY
Manufacturer Part Number: SC250
IMS Product Code: 1908183
Packaging: Sold Individually
Description:

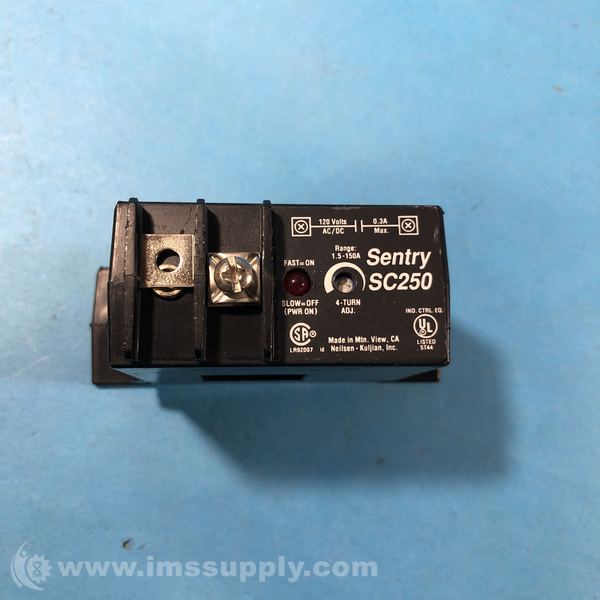

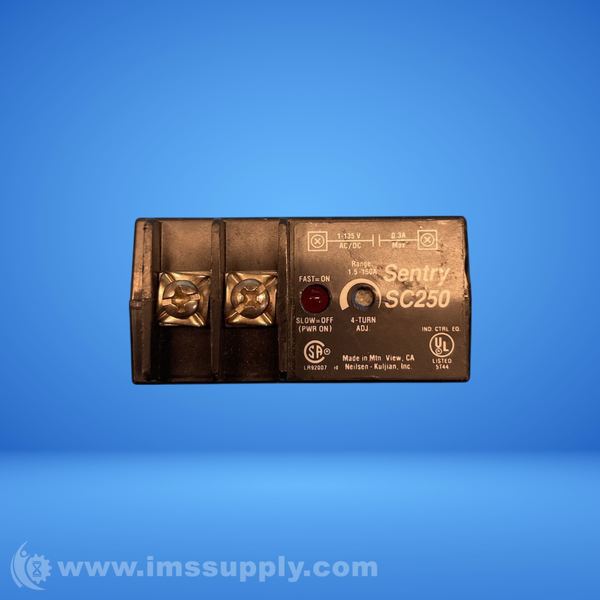

Sentry SC250 AC Current Switch

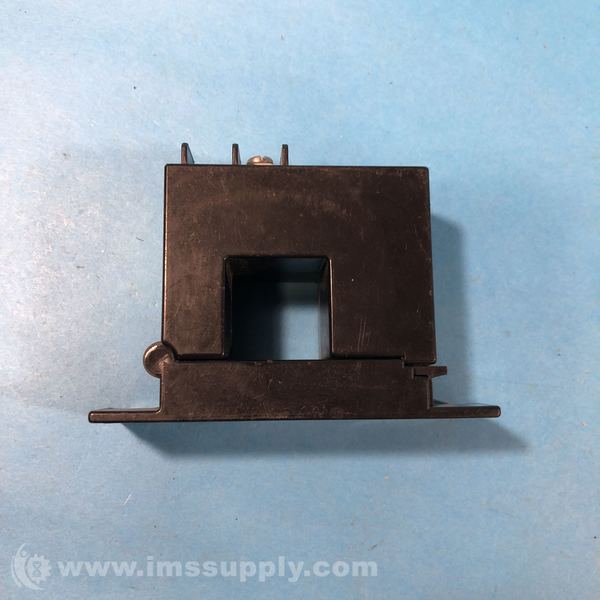

Split core current switch with LED indicator, 1.5-150A range
Specifications
- Contact Form: SPST
- Current Range: 1 - 200 A
- Trip Point Type: Fixed
- Mount: Split Core
- Supply Voltage: 24 - 40 VDC
- Frequency: 50 - 60 Hz
- Output: 4 - 20 mA, loop-powered
- Output Impedance: 600O max @ 24 VDC
- Insulation Voltage: 600 VAC
- Accuracy: 1.0% FS
- Response Time: 500 mS to 90% of step change
- Overrange Limit: Sensor self-limits to 25 mA output
- Terminations: Screw terminals
- Materials Of Construction: UL 94 flammability rated thermoplastic
- Weight: 1.3 lb (0.6 Kg)
- Approvals: UL File #E129625, CE pending
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, September 28, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
