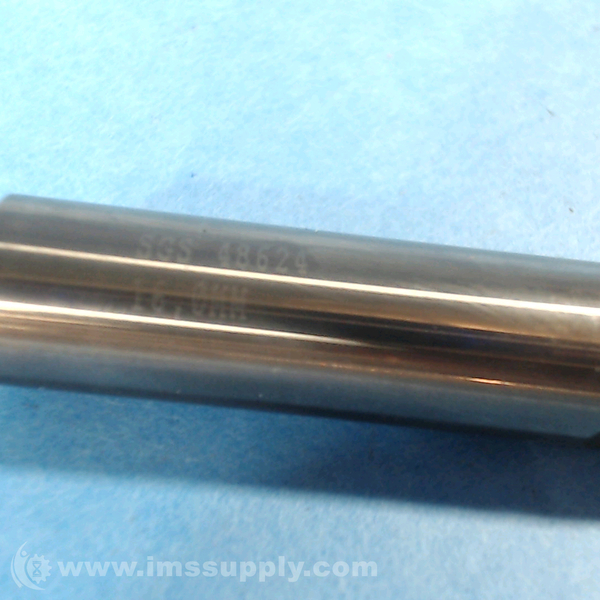

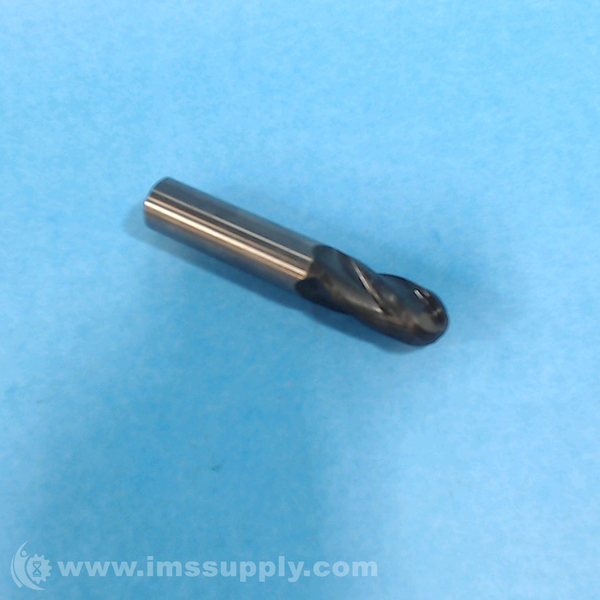

SGS TOOL 48624 16MM DIA 4 FLUTE BALL NOSE END MILL
Quick Overview
Manufactured By: SGS TOOL
Manufacturer Part Number: 48624
IMS Product Code: 1730915
Packaging: Sold Individually
Description:
SGS Tool 48624 16mm Dia 4 Flute Ball Nose End Mill
16.00mm Diameter, 32.00mm Length of Cut, 16.00mm Shank Diameter, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 01B, Ball Nose End Mill
Specifications
- End Configuration: Ball Nose
- Number of Flutes: 4
- Cutting Diameter (DC): 16.00 mm
- Shank Diameter (DCON): 16.00 mm
- Length of Cut (APMX): 32.00 mm
- Overall Length (LF): 89.00 mm
- Shank Length (LS): 56.90 mm
- Helix Angle: 30 degrees
- Material: Carbide
- Coating Description: AlTiN (Ti-NAMITE-A)
- Shank Type: Straight
- Center Cutting: Yes
