SHARP JW-21MN ME-NET MODULE
Quick Overview
Manufactured By: SHARP
Manufacturer Part Number: JW-21MN
IMS Product Code: 2174401
Packaging: Sold Individually
Description:

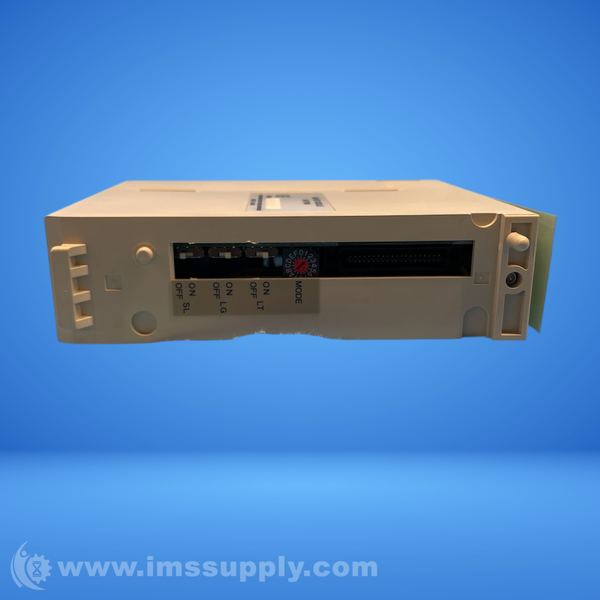

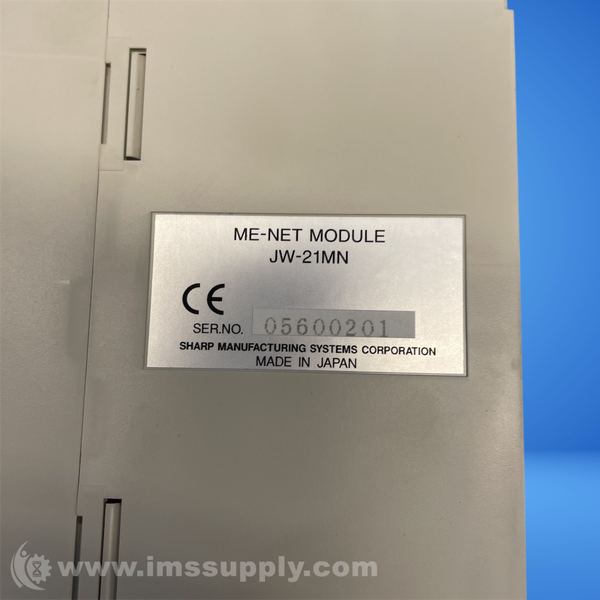

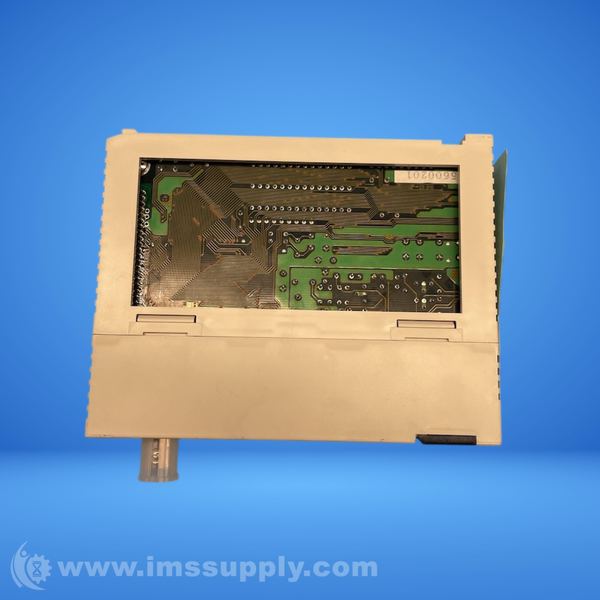

Sharp JW-21MN ME-NET Module
ME-NET module for data transmission and reception between compatible devices.
Specifications
- Rated Load Voltage: 5/12/24 VDC
- Load Voltage Range: 4.75 to 30 VDC
- Rated Max. Load Current: 0.1 A/point, 1.6 A/common
- No. of Output: 32 points
- Surge Killer: Zener diode
- Internal Current Consumption (5 VDC): 320 mA max.
- Operation Indication: LED lights at ON condition
- External Wire Connection System: 40 P connector (soldering)
- Dielectrical Strength: 1000 VAC for 1 minute (between output terminal and secondary circuit)
- Insulation Resistance: 500 VDC, 10 M ohm or more (between output terminal and secondary circuit)
- Weight: Approx. 410g
- Maximum Data Transmission: 1024 bytes
- Number of Linkage Points - Relay Link: 2048 (256 bytes) in total
- Number of Linkage Points - Register Link: 2048 bytes in total
- Computer Link Function: Triggered by commands from a host computer with a compatible network module, starts reading and writing memory in JW20/ JW20H/ JW30H
- Maximum Number of Stations: 64
- Maximum Cable Extension: 1 km
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
