SICK 1043784 SAFETY CONTROLLER
Quick Overview
Manufactured By: SICK
Manufacturer Part Number: 1043784
IMS Product Code: 2134555
Packaging: Sold Individually
Description:

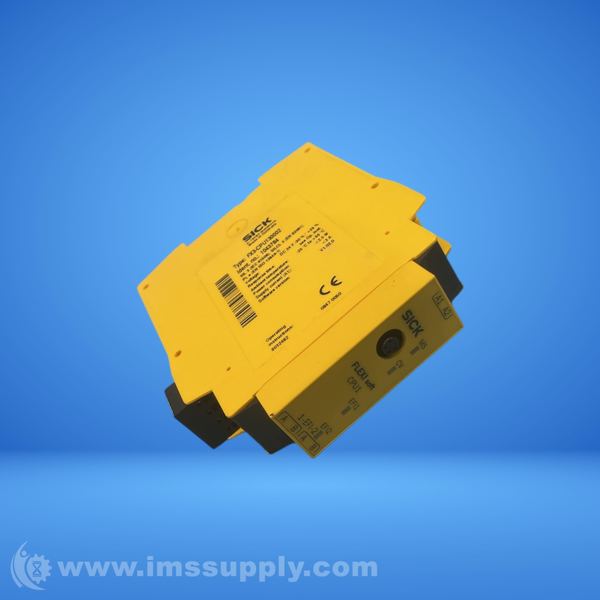

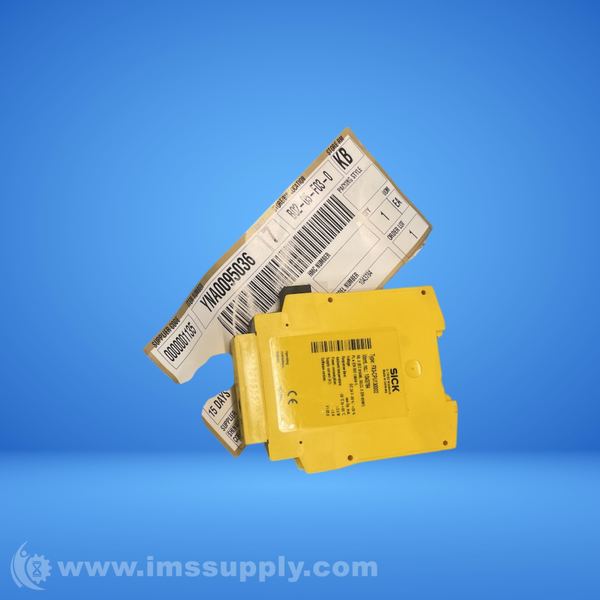

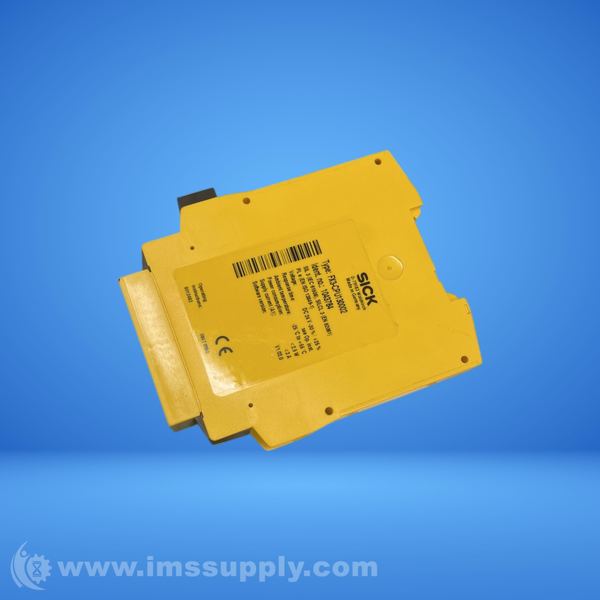

Sick 1043784 Safety Controller
Safety controller with EFI safe SICK device communication - main module - controller networking (Flexi Link) - configuration via software (Flexi Soft Designer) - PL.e SIL3 SILCL3 Cat.4 - plug-in spring term. + 4-pin M8 female connector (configuration and diagnostic interface RS-232) - 16.8Vdc-30Vdc (24Vdc nom.) supply voltage - IP20 - with RS-232 communication capability - Rated for -13°F...+131°F / -25°C...+55°C ambient
Specifications
- Main Function: Safety controller
- Sub-range Name: Flexi Soft series
- Design: EFI safe SICK device communication main module controller networking (Flexi Link) configuration via software (Flexi Soft Designer)
- Supply Voltage (DC): 16.8Vdc-30Vdc (24Vdc nom.)
- Connection Type: plug-in spring term. 4-pin M8 female connector (configuration and diagnostic interface RS-232)
- Communication Protocol: RS-232
- Degree of Protection: IP20
- Dimensions: H96.5mm x W22.5mm x D120.6mm
- Ambient Air Temperature for Operation: -13°F...+131°F / -25°C...+55 °C
- Ambient Air Temperature for Storage: -13°F...+158°F / -25°C...+70 °C
- Power Consumption: 2.5 W
- Contents: main module without system plug terminal plug spring for EFI interface safety instruction operating instructions for download
- Class: PL.e SIL3 SILCL3 Cat.4 Class III
- Configuration Method: Via software (Flexi Soft Designer)
- Number of EFI Interfaces: 2
- Protection Class: III (EN 61140)
- Type of Voltage Supply: PELV or SELV
- Supply Voltage VS: 24 V DC (16.8 V DC ... 30 V DC)
- Internal Power Consumption: = 2.5 W
- Overvoltage Category: II (EN 61131-2)
- Switch-on Time: = 18 s
- Weight: 119 g (± 5 %)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 24 minutes.
