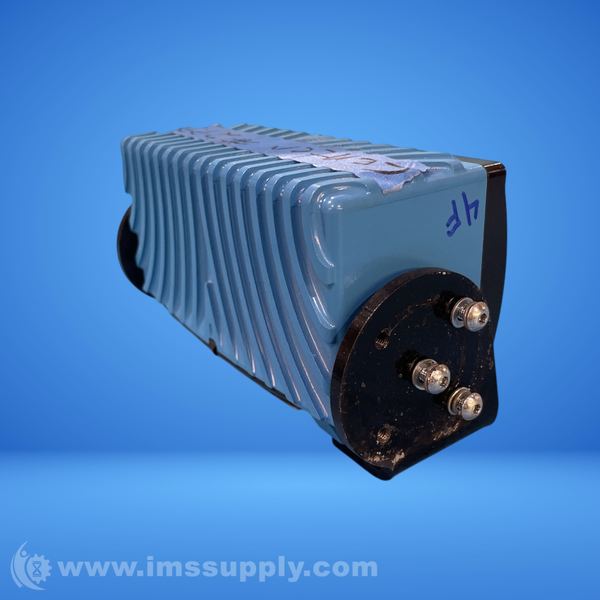

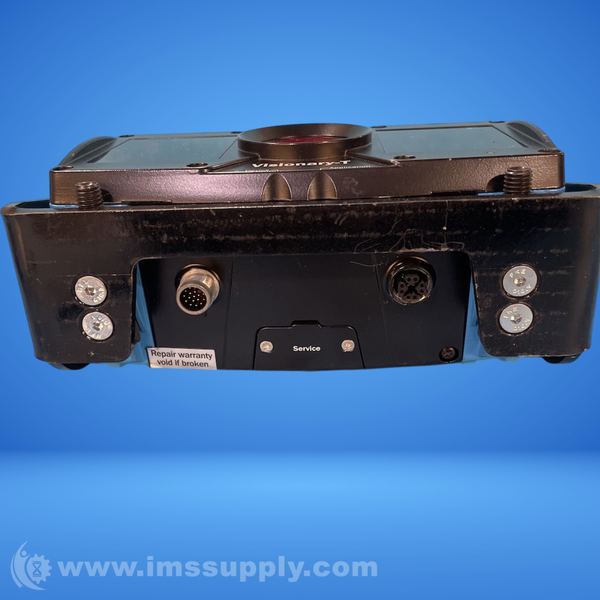

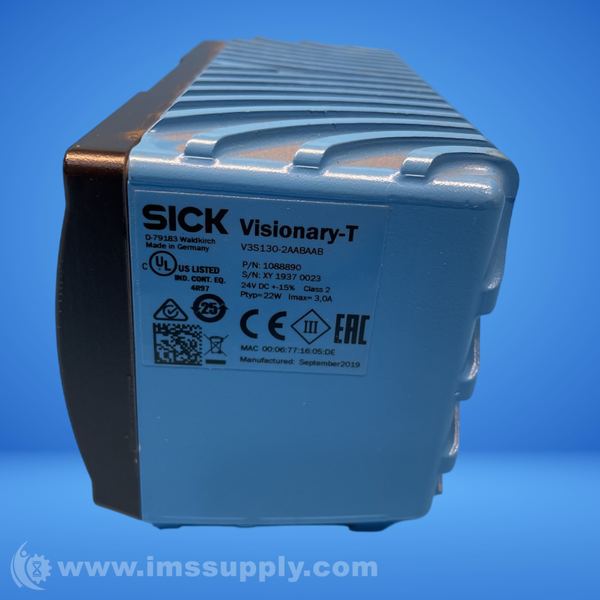

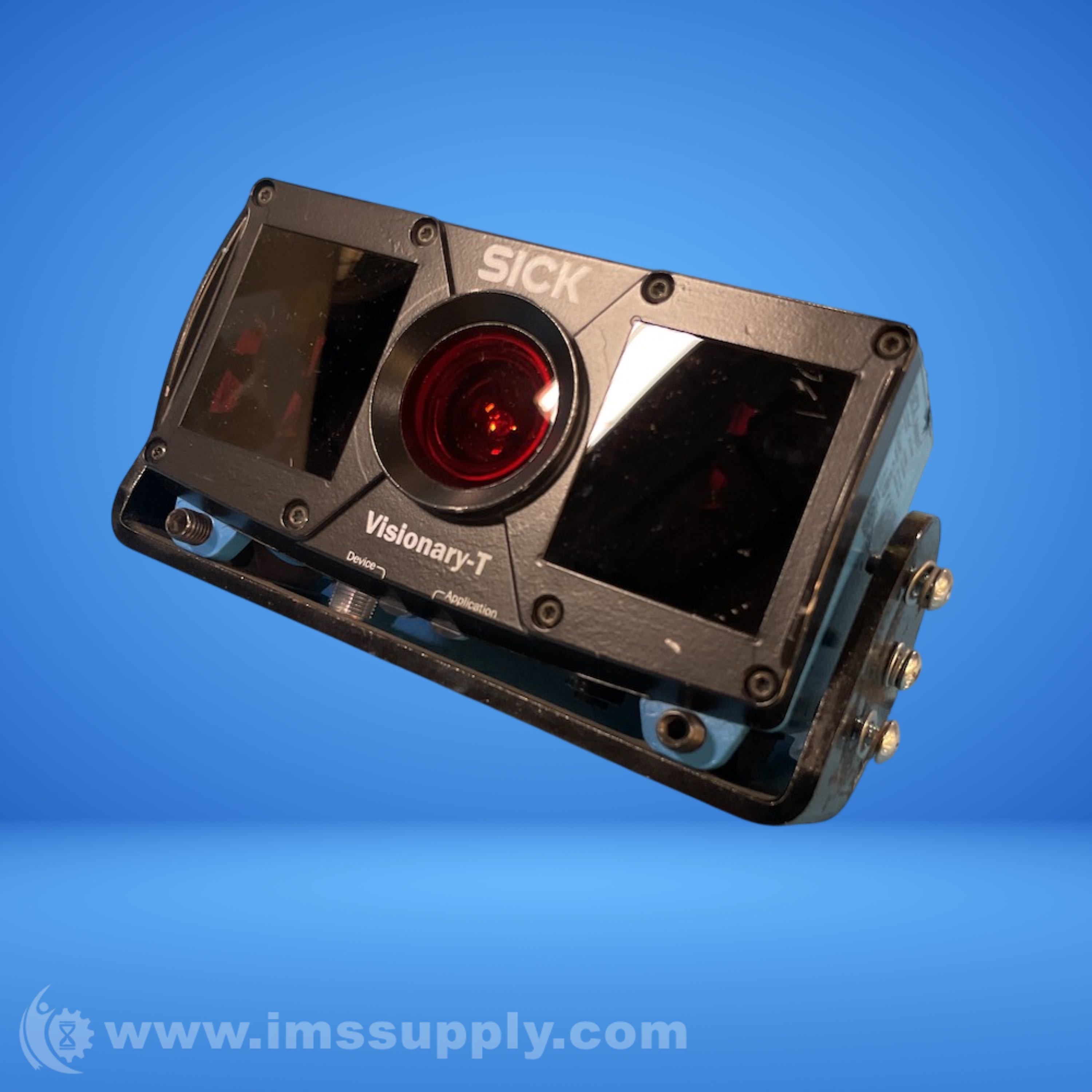

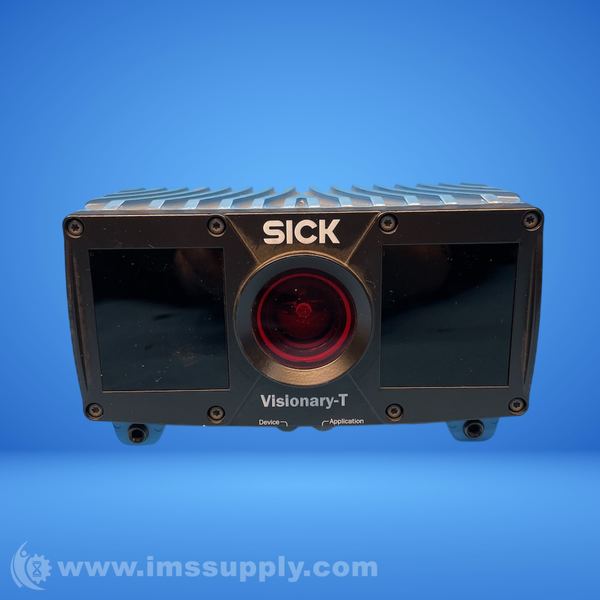

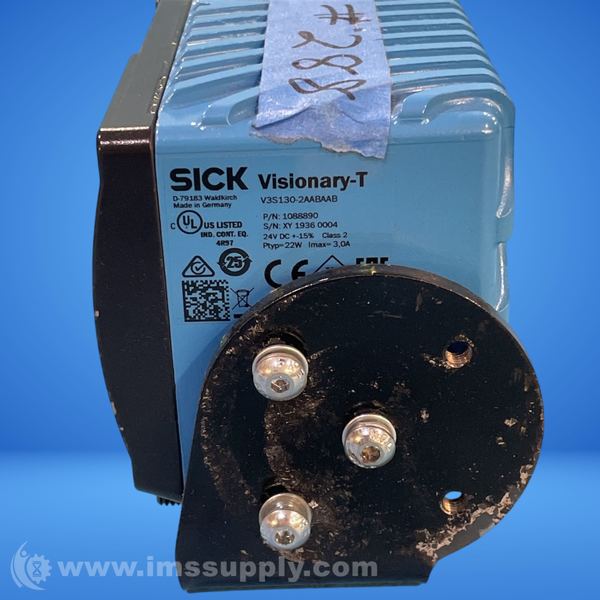

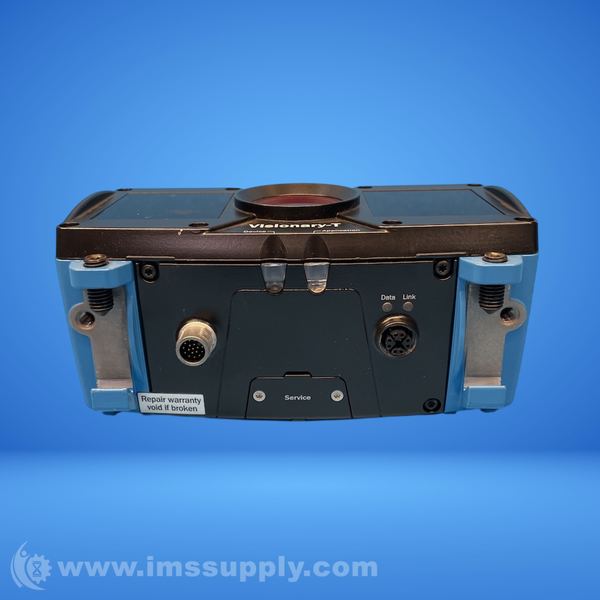

SICK 1088890 3D MACHINE VISION CAMERA
Quick Overview
Manufactured By: SICK
Manufacturer Part Number: 1088890
IMS Product Code: 2153845
Packaging: Sold Individually
Description:
Sick 1088890 3D Machine Vision Camera
3D Machine Vision Camera
Specifications
- Technology: 3D snapshot, image analysis
- Product category: Configurable, programmable, Streaming, pre-calibrated
- Working distance: 0.5 m ... 60 m
- Example field of view: 7 m x 5.3 m
- Detection angle: 69° x 56°
- Angular resolution: 0.39° x 0.38°
- Light source: Internal lighting
- Internal lighting: LED, invisible, infrared, 850 nm
- LED class: Risk group 0 in accordance with EN 62471
- Connection type: M12 8-pin Gigabit Ethernet, X-coded; M12 17-pin (voltage supply/data), system plug, digital IOs (24 V)
- Supply voltage: 24 V DC
- Power consumption: = 22 W, Typical (without digital I/Os)
- Peak current: 3 A
- Enclosure rating: IP67
- Protection class: III
- Housing color: Blue, black
- Dimensions (L x W x H): 162 mm x 93 mm x 78 mm
- Pixel count: 176 px x 144 px
- Repeatability: = 2 mm, at 1 m range; = 7 mm, at 7 m range
- On delay: < 15 s
- Response time: < 100 ms
- Integrated application: 3D detection e. g., collision warning, emptiness check, layer check, Intrusion controll, object security
- Interfaces: Ethernet
- Function: Device control, position and detection status of each cuboid and group
- Data transmission rate: = 36 Mbit/s
- Configuration software: SOPAS ET, Telegram interface, API (Java), Web-Interface
- Digital input: 2, allowing to access 32 configurations
- Digital output: 4
- Optical indicators: 2 status LEDs
- Electromagnetic compatibility (EMC): EN 61000-6-2:2005-08, EN 61000-6-3:2007-01
- Shock load: EN 60068-2-27:2009
- Vibration load: EN 60068-2-6, EN 60068-2-64
- Ambient operating temperature: 0 °C ... +45 °C, without cooling fins
- Storage temperature: –20 °C ... +70 °C
- Ambient light immunity: < 50 klx, Sunlight
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 5 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
