SICK 6042158 PRESSURE SENSOR
Quick Overview
Manufactured By: SICK
Manufacturer Part Number: 6042158
IMS Product Code: 1903613
Packaging: Sold Individually
Description:

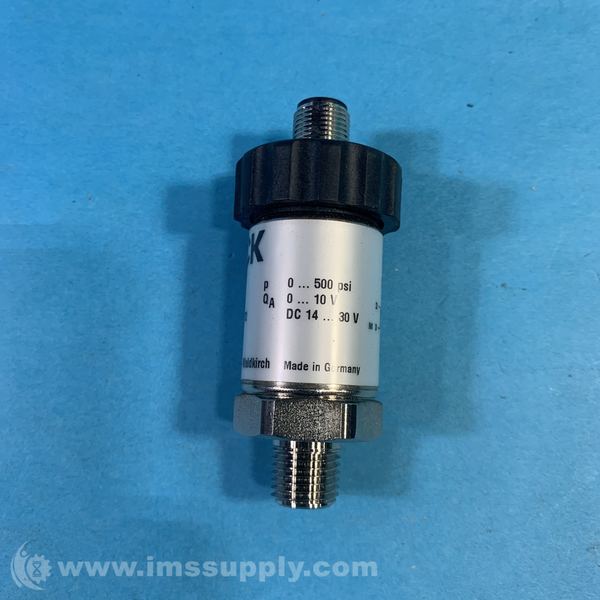

Sick 6042158 Pressure Sensor
Electronic pressure gauge sensor/transmitter for liquids and gaseous fluids - standard pressure port
Specifications
- Main function: Sensor (Pressure)
- Product series / family name: PFT
- Pressure type: Gauge pressure
- Pressure unit: Psi
- Measuring range: 0 psi to 500 psi
- Accuracy: = ± 0.5 % of the span
- Non-linearity: = ± 0.2 %, of span (best fit straight line, bfsl) according to IEC 61298-2
- Process connection: ¼'' NPT
- Process temperature: –30 °C to +100 °C
- Output signal: 0 V to 10 V, 3-wire
- Connection type: M12 round connector x 1, 4-pin
- Enclosure rating: IP67
- Supply voltage: 14 V DC to 30 V DC
- Material: Stainless steel 1.4571 / 316Ti (housing), Stainless steel 1.4571 (wetted part)
- Protection functions: Overvoltage, Short-circuit, Reverse polarity
- Analog outputs: 1 x analog output (0-10Vdc; 3-wire)
- Response time: 10ms / 0.01 s
- Measurement accuracy: +/-0.5% of span
- Degree of protection: IP67
- Ambient air temperature for operation: -20...+80 °C
- Mechanical resistance: Shock resistance, Vibration resistance
- Medium: Liquid, gaseous
- Maximum ohmic load RA: 4 mA ... 20 mA, 2-wire (RA = (L+ – 10 V) / 0.02 A [Ohm])0 V ... 5 V, 3-wire (RA > 5 kOhm)0 V ... 10 V, 3-wire (RA > 10 kOhm)
- Wetted parts: Standard memrane: Stainless steel 1.4571, stainless steel 1.4534 for measuring ranges > 25 bar
- Internal transmission fluid: Synthetic oil (Not available for version with standard membrane for pressure ranges > 25 bar)
- Pressure port: Standard
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection: 36 V DCShort-circuit protection: QA towards MReverse polarity protection: L+ to MProtection class: III
- Dielectric strength: 500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even in the event of a fault)
- CE-conformity: Pressure equipment directive: 2014/68/EUEMC directive: 2004/108/EC, EN 61326-2-3
- Weight sensor: Approx. 200 g
- Seal: Without seal
- Protection class III: ?
- MTTF: 452 years
- Non-repeatability: = ± 0.1 % of the span
- Response time (10 % ... 90 %): = 1 ms = 10 ms at medium temperatures below < –30°C for pressure ranges up to 25 bar or with flush-mounted membrane
- Long-term drift/one-year stability: = ± 0.2 % of span (at reference conditions)
- Temperature coefficient in rated temperature range: Mean TC of zero: = 0.2 % of span / 10 K (< 0.4 % for pressure ranges = 0.25 bar)Mean TC of span = 0.2 % of span / 10 K
- Rated temperature range: 0 °C ... +80 °C
- Service life: Minimum 100 Mio. load cycles
- Ambient temperature: –20 °C ... +80 °C
- Storage temperature: –40 °C ... +100 °C, with flush-mounted membrane and cooling element –20 °C ... +100 °C
- Shock load: 1000 g according to IEC 60068-2-27 (mechanical shock)400 g according to IEC 60068-2-27 (mechanical shock) for version with integrated cooling element
- Vibration load: 20 g according to IEC 60068-2-6 (vibration under resonance)10 g according to IEC 60068-2-6 (vibration undencr resonae) for version with integrated cooling element
- Unit weight: 0.206 Kilograms
- Net unit weight: 0.206 Kilograms
- Unit volume: 765 Cubic Centimetres (cm³)
- Measurements: 9.000*5.000*17.000
- Country of origin: Germany

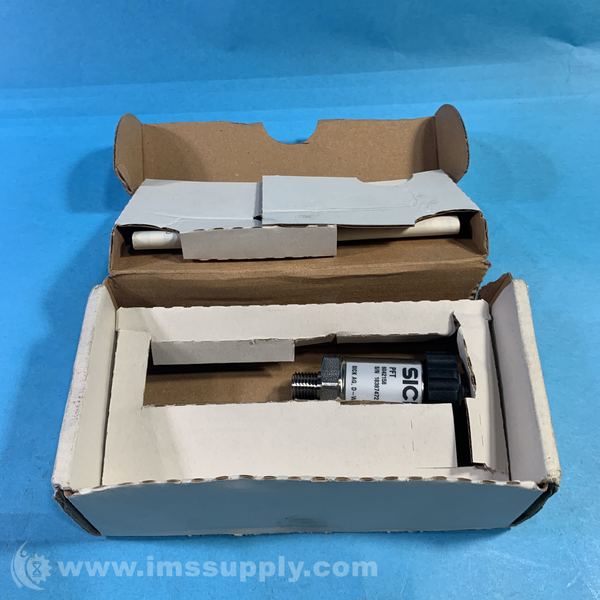

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
