SICK WF5-40B410 FORK SENSOR
Quick Overview
Manufactured By: SICK
Manufacturer Part Number: WF5-40B410
IMS Product Code: 1929411
Packaging: Sold Individually
Description:

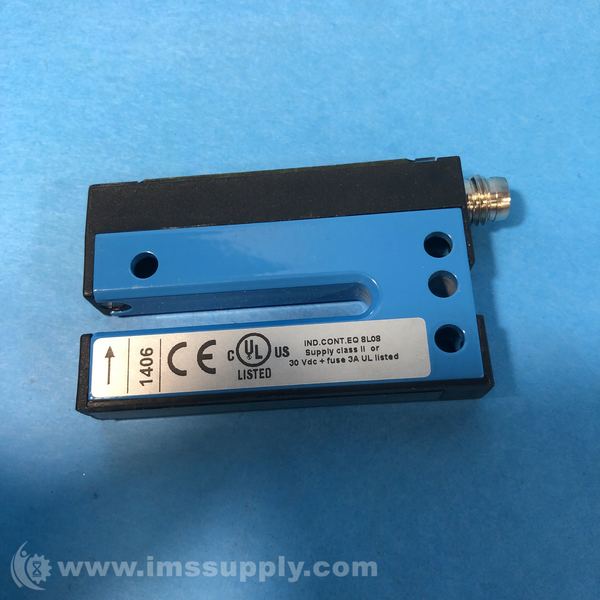

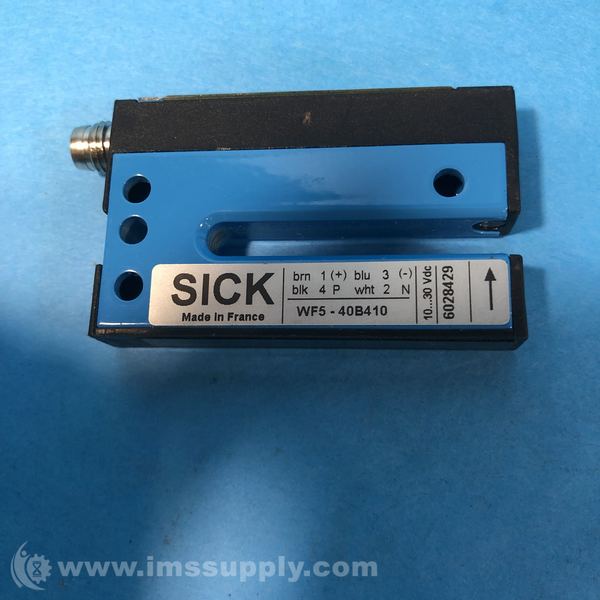

Sick WF5-40B410 Fork Sensor
Fork sensor with 5 mm slot width and 42 mm depth. Minimum detectable object size is 0.2 mm. Features light/dark switching output with selectable function via button and plus/minus adjustment. Connects via M8 4-pin connector. Supply voltage ranges from 10-30 VDC. Response time is 100 us with 10 kHz switching frequency. Made in France with aluminum housing and IP65 rating.
Specifications
- Fork Width: 5 mm
- Fork Depth: 42 mm
- Minimum Detectable Object: 0.2 mm
- Connection Type: M8 4-pin
- Switching Output: Light/dark switching
- Output Function: Light/dark switching, selectable via button
- Supply Voltage: 10-30 VDC
- Housing Material: Aluminum
- IP Rating: IP65
- Response Time: 100 us
- Switching Frequency: 10 kHz
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 40 minutes.
