SICK WLL2000-B4300 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: SICK
Manufacturer Part Number: WLL2000-B4300
IMS Product Code: 1760438
Packaging: Sold Individually
Description:

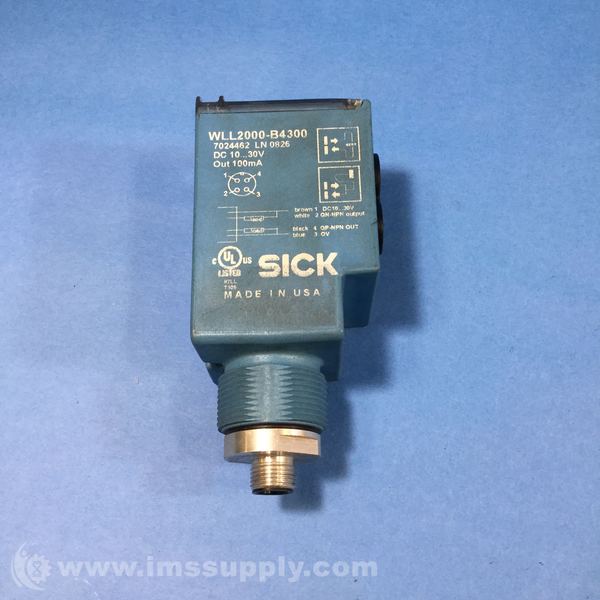

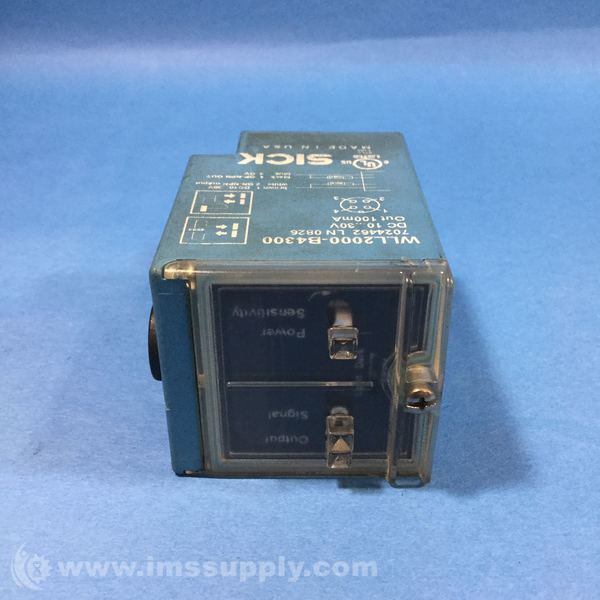

Sick WLL2000-B4300 Photoelectric Sensor
Compact photoelectric sensor with fiber-optic connection, PNP/NPN output, visible red light, and 4-pin M12 connector
Specifications
- Connection Type: Male Connector M12, 4-Pin
- Supply Voltage: 10 V DC ... 30 V DC
- Switching Frequency: 500 Hz
- Output Type: PNP
- Response Time: 1 ms
- Dimensions (W x H x D): 45 mm x 73.5 mm x 48.6 mm
- Housing Design (Light Emission): Rectangular
- Sensing Range Max.: Depends on Fiber
- Type of Light: Visible Red Light
- Switching Mode: Light/Dark Switching
- Switching Mode Selector: Selectable Via Light/Dark Selector
- Ambient Operating Temperature: -25 degrees C ... +40 degrees C
- Ambient Storage Temperature: -40 degrees C ... +70 degrees C
- Weight: 150 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 56 minutes.
