SICK WT12-2P440 PHOTOELECTRIC PROXIMITY SENSOR
Quick Overview
Manufactured By: SICK
Manufacturer Part Number: WT12-2P440
IMS Product Code: 1786839
Packaging: Sold Individually
Description:

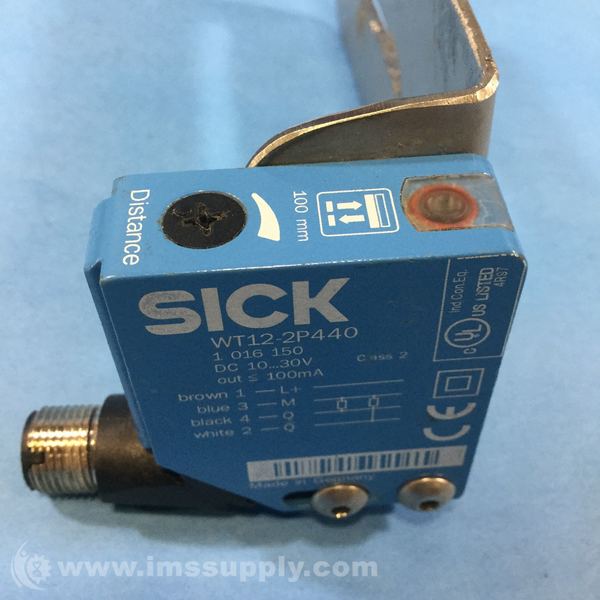

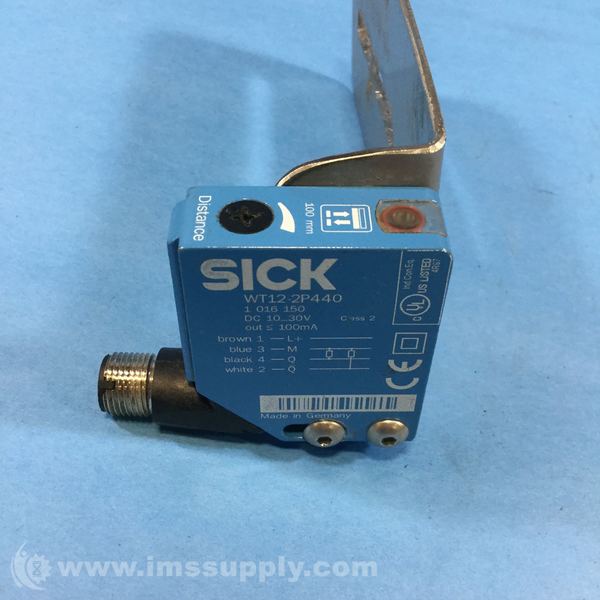

Sick WT12-2P440 Photoelectric Proximity Sensor
Photoelectric proximity sensor with foreground suppression, PNP output, visible red LED light source, adjustable sensing range 35 mm to 100 mm, M12 4-pin male connector, metal housing, IP67/IP69K enclosure rating.
Specifications
- Connection Type: M12, 4-pin male connector
- Sensing Range: 35 mm to 100 mm
- Supply Voltage: 10 V DC to 30 V DC
- Switching Output: PNP
- Switching Mode: Light/dark switching
- Housing Material: Metal, zinc diecast
- Enclosure Rating: IP67, IP69K
- Ambient Operating Temperature: -40 degrees C to +60 degrees C
- Dimensions (W x H x D): 15 mm x 49 mm x 41.5 mm
- Light Source: Visible red LED
- Adjustment: Potentiometer
- Response Time: <= 330 µs
- Switching Frequency: 1500 Hz
Used (Special):

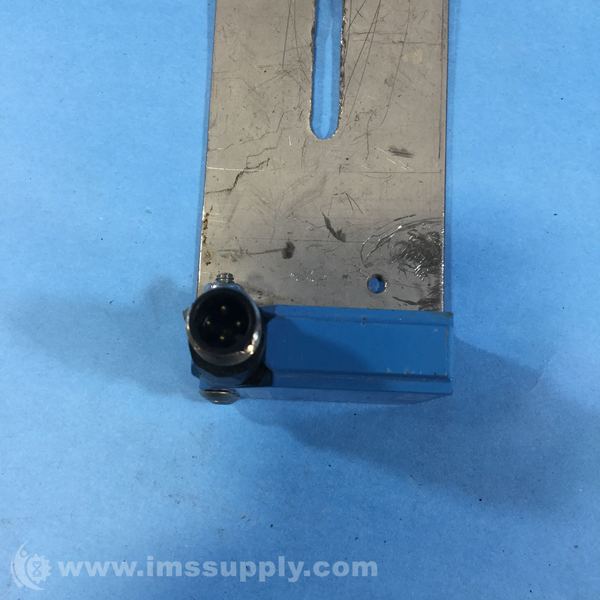

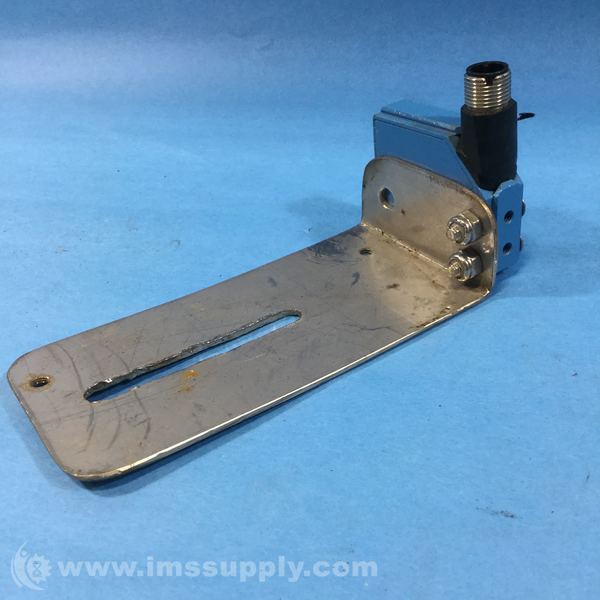

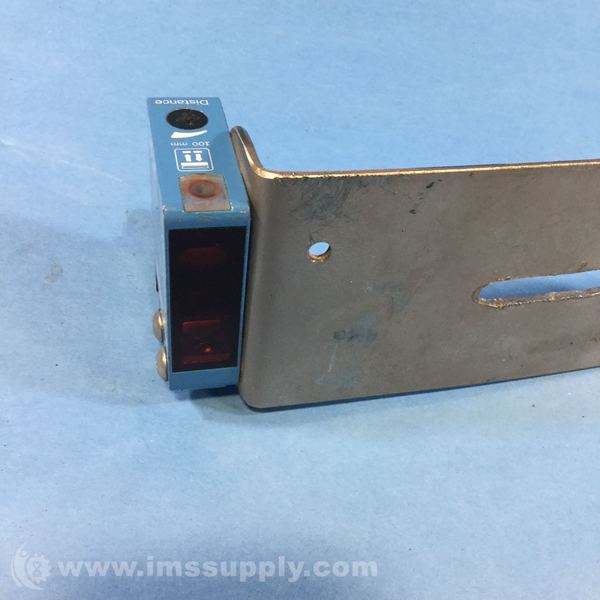

attached to metal mount
