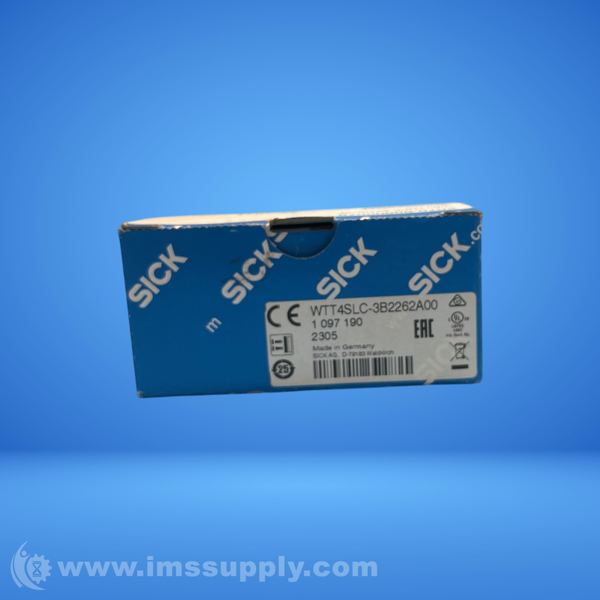

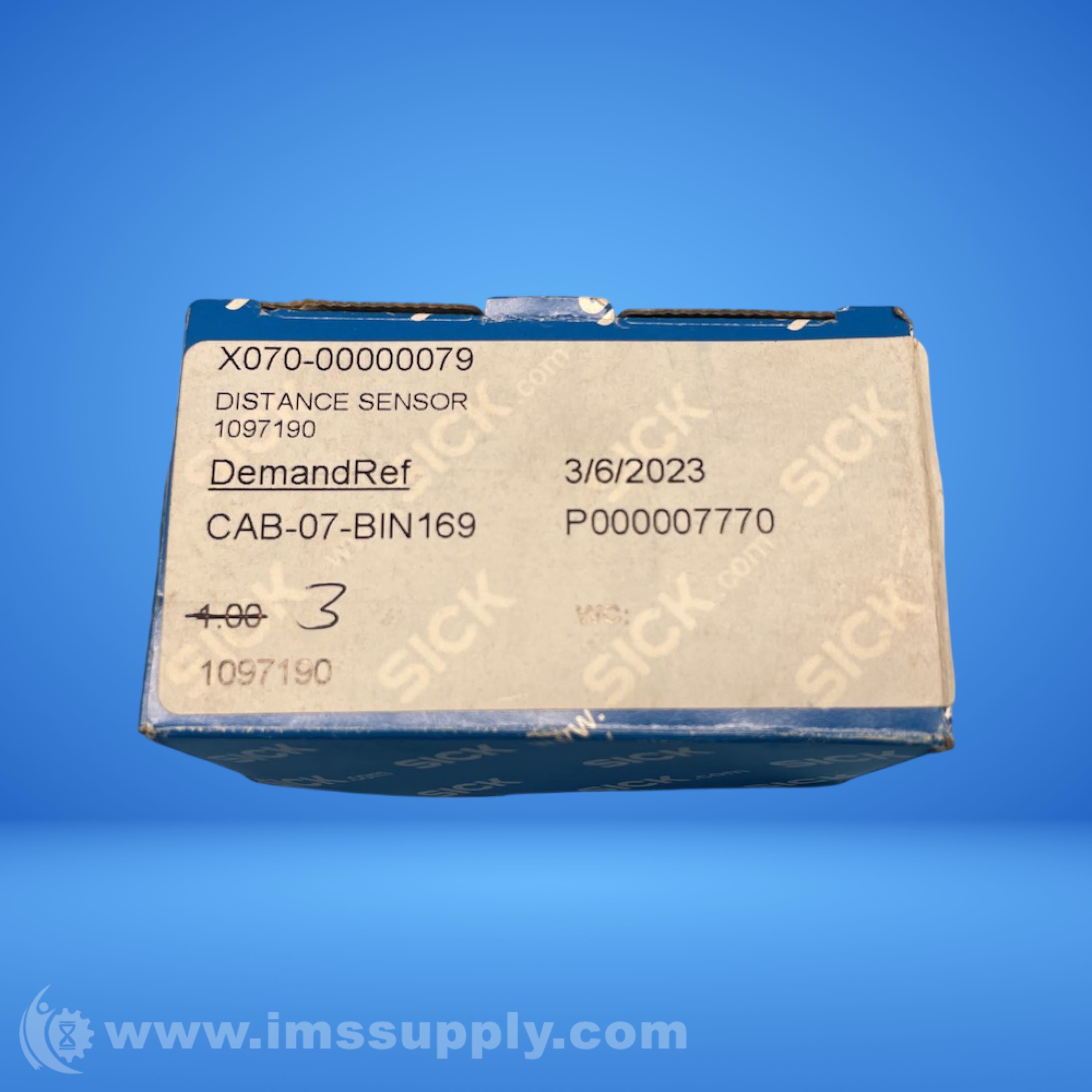

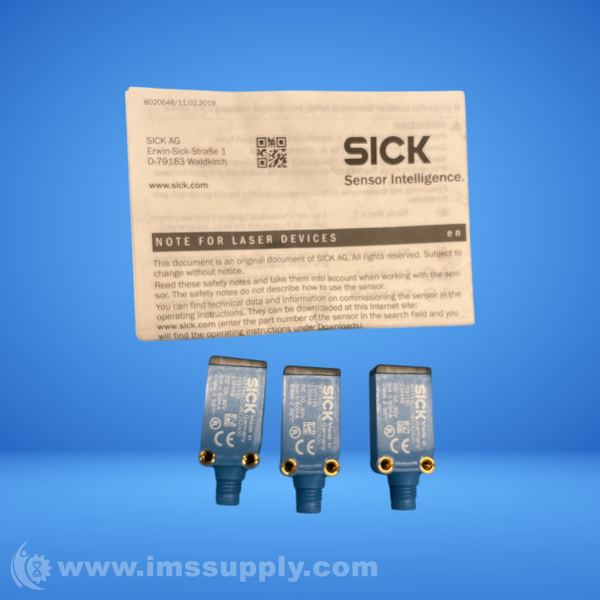

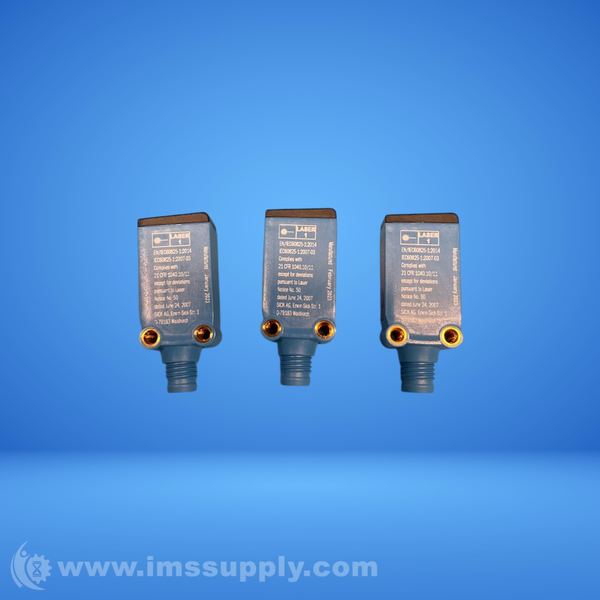

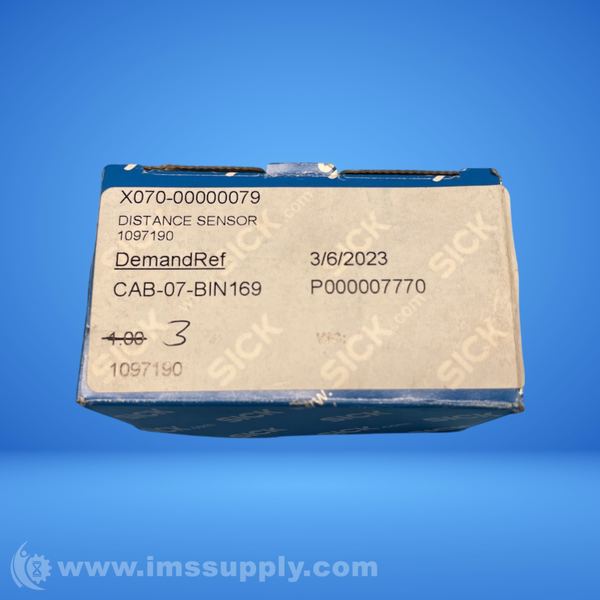

SICK WTT4SLC-3B2262A00 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: SICK
Manufacturer Part Number: WTT4SLC-3B2262A00
IMS Product Code: 2129563
Packaging: Box of 4
Description:
Sick WTT4SLC-3B2262A00 Photoelectric Sensor
Laser distance sensor with 50-1,300 mm sensing range, PNP/NPN push-pull output, M8 4-pin male connector, IO-Link interface, IP67 protection.
Specifications
- type: WTT4SLC
- detection principle: Through-beam
- operating range: 0 m ... 50 m
- output type: PNP
- switching output: Push-pull: PNP/NPN
- connection type: Male connector M8, 4-pin
- cable material: PVC
- housing material: Plastic
- degree of protection: IP67
- ambient operating temperature: -25 degrees C ... 55 degrees C
- dimensions: 12 mm x 31.5 mm x 21 mm
- sensing range: 50 mm to 1,300 mm
- functional principle: Photoelectric proximity sensor
- functional principle detail: Background suppression, optical time-of-flight
- switching mode: Light/dark switching
- communication interface: IO-Link
- smart task: Base logics
- voltage: 10-30 VDC
- nominal voltage: 12 VDC, 24 VDC
- light source: Laser-Red
- measurement range: 50-1,300 mm
- approvals: CE, cULus
- weight: 0.06 kgs
New - Open Box (Special):
Box of three (3) remaining.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 15 minutes.
