SIEMENS 141-0575 DIFFERENTIAL STATIC AIRFLOW SWITCH
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 141-0575
IMS Product Code: 1877194
Packaging: Sold Individually
Description:

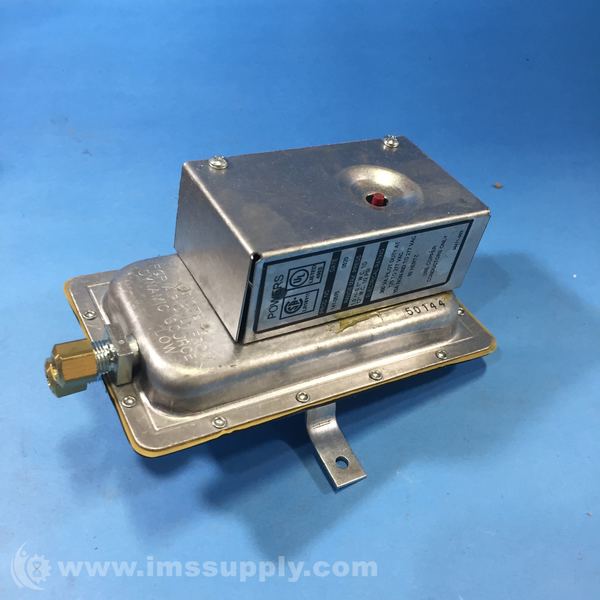

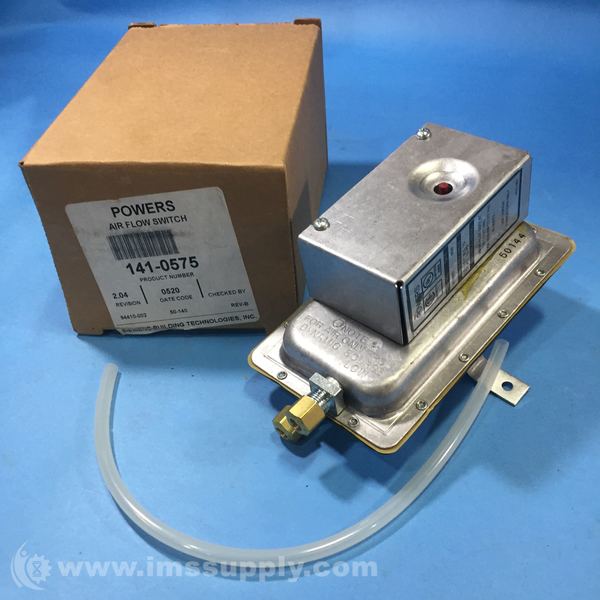

Siemens 141-0575 Differential Static Airflow Switch
Manual reset differential static airflow switch with SPST switch type, 120 to 277 VAC voltage rating, and 1 to 12 in. w.c. pressure range. Made of steel with integral compression sample line connection.
Specifications
- Reset Type: Manual
- Switch Type: SPST
- Voltage: 120 To 277 VAC
- Pressure Range: 1 To 12 in. w.c.
- Type of Set Point: Adjustable
- Pressure Set Point: 1 in wc to 12 in wc
- Switching Differential: 0.06 in wc to 0.6 in wc
- For Pressure Type: Differential
- Mounting Orientation: Vertical
- Mounting Hole Center to Center Distance: 3-7/8 in
- Minimum Operating Temperature: -40 degrees F
- Maximum Operating Temperature: 180 degrees F
- Sample Line Connection Size: 1/4 in
- Sample Line Connector Type: Integral Compression
- Electrical Rating: 15 A Non-Inductive 120 to 277V AC; 300 VA Pilot Duty @ 120 to 277V AC
- Contact Form: SPST
- Number of Switches: 1
- Electrical Connection Type: Hardwired
- Housing Type: Conduit Box
- Housing Material: Steel
- Overall Height: 6-1/8 in
- Overall Width: 3-1/4 in
- Overall Depth: 3-1/4 in
- Standards: CSA Certified 1811M25; UL Listed MFHX File MH9888
- Maximum Pressure Rating: 12 in wc
- Country of Origin: United States
