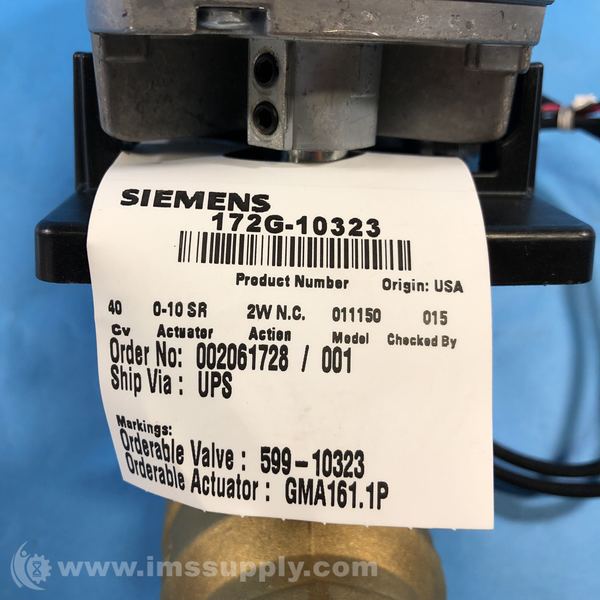

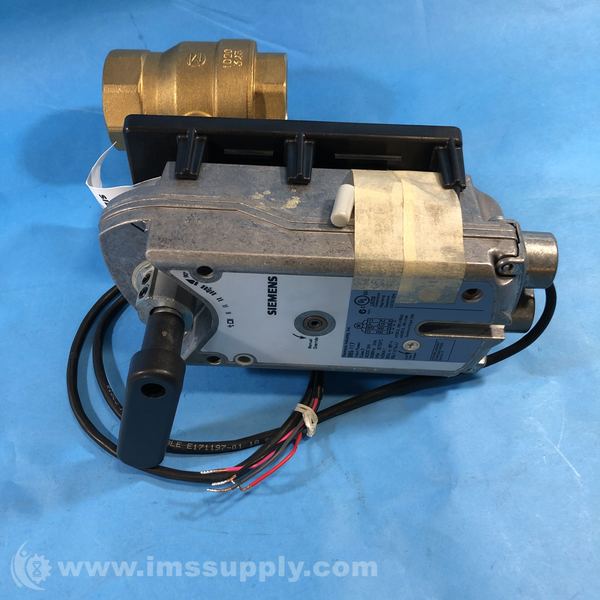

SIEMENS 172G-10323 2-WAY 1-1/2" BALL VALVE ASSEMBLY
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 172G-10323
IMS Product Code: 1902508
Packaging: Sold Individually
Description:
Siemens 172G-10323 2-Way 1-1/2" Ball Valve Assembly
2-way 1-1/2 inch ball valve assembly with chrome-plated brass ball and brass stem, normally closed, spring return actuator, 24 VAC/DC, 0-10 VDC control signal
Specifications
- type: Assembly
- connection: NPT
- Cv: 40
- fail-safe: Spring Return
- supply voltage: 24 VAC
- trim material: Brass
- pattern: 2-way
- size: 1-1/2 in
- control signal: Analog
- actuator type: Spring Return Damper Actuator
- voltage: 24 VAC/DC
- control signal: 0-10 VDC
- run time: 90 Second
- spring return time: 15 Second
- enclosure type: NEMA 1
- cable length: 3' Plenum Cable
- ball material: Chrome-Plated
- stem material: Brass
- close-off pressure: 200 psi
- normal position: Normally Closed
- torque: 62 in-lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
