SIEMENS 17DUD82BF11 COMBINATION STARTER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 17DUD82BF11
IMS Product Code: 1878197
Packaging: Sold Individually
Description:
Siemens 17DUD82BF11 Combination Starter
Non-reversing motor starter with solid-state overload relay and fusible disconnect.
Specifications
- Starter Type: Combination Full Voltage Non-Reversing Magnetic
- Rating - Volts: NEMA 600V AC
- Size: NEMA Size 1
- Disconnect: Fusible
- Disconnect Amps: 30A
- Phase: 3
- Coil Voltage: 120/110VAC 60/50Hz
- Enclosure Type: NEMA 1
- Overload Relay: Solid State
- Motor FLA: 5.50-22.00A
- Weight: 47.000000000 lbs
- Degree of protection (NEMA): 1
- External reset possible: true
- Number of auxiliary contacts as normally closed contact: 0
- Number of auxiliary contacts as normally open contact: 1
- Overload release current setting: 5.5 A
- Rated power, 460 V, 60 Hz, 3-phase: 7.3549875 kW
- Voltage type for actuating: AC
- With short-circuit release: true

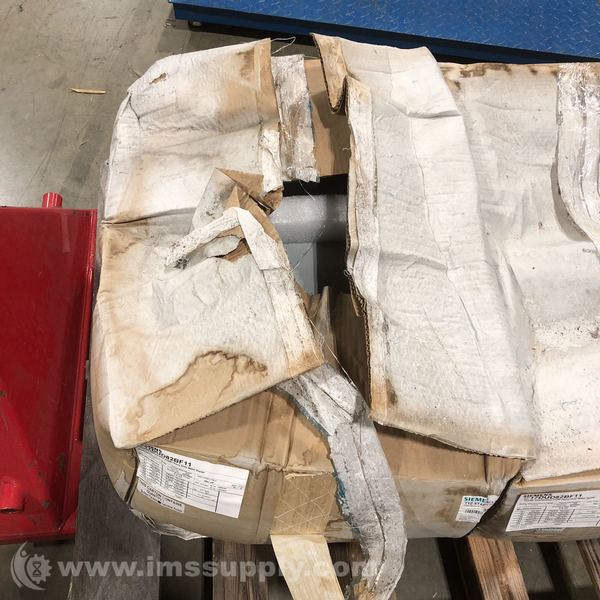

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 20 minutes.
