SIEMENS 192-256W WHITE PLASTIC THERMOSTAT COVER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 192-256W
IMS Product Code: 1834366
Packaging: Sold Individually
Description:

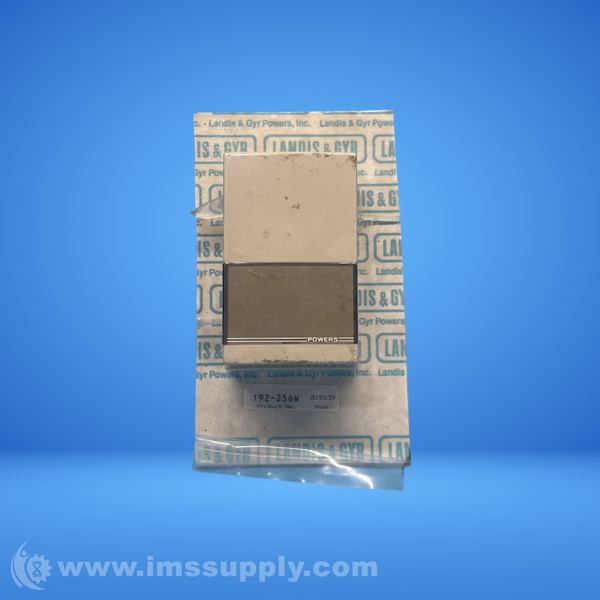

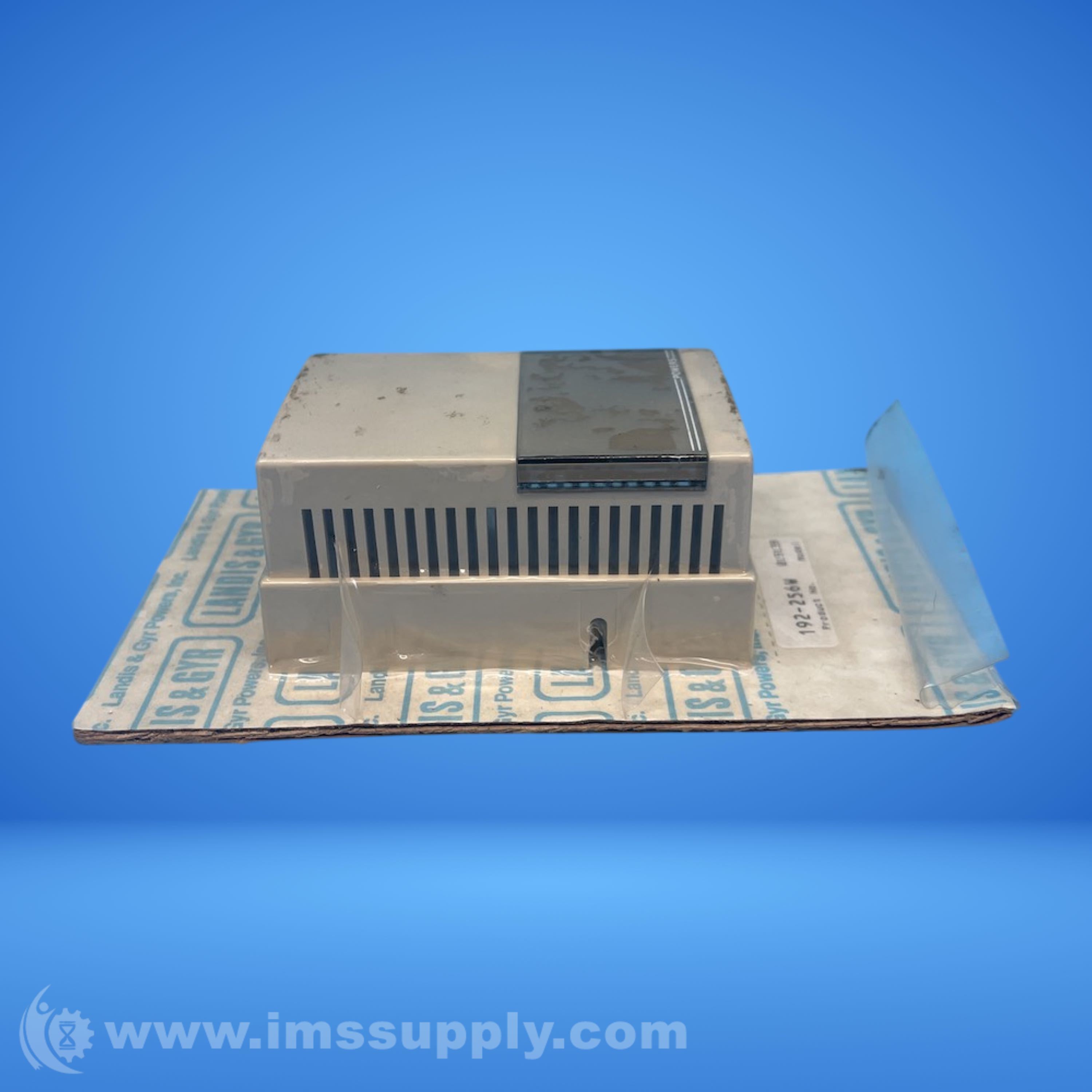

Siemens 192-256W White Plastic Thermostat Cover
White plastic thermostat cover for 192S series thermostats with concealed adjustable set point, concealed indicator set point, and concealed chassis thermometer.
Specifications
- type: Cover
- control action: Direct or reverse acting
- connections: Barbs for 5/32? OD poly tubing
- number of pipes: 1 or 2 depending on model selected
- sensor element: Bi-metal
- sensitivity adjustment: 1 to 4 psi/°F (12 to 50 kPa/°C)
- setpoint temperature ranges: 45 to 85°F (7 to 30°C)
- temperature response: 0.1°F to (0.06°C)
- dial graduations: 2°F (1°C)
- factory settings calibration: 72°F (22°C) 7.5 psi (52 kPa)
- factory settings sensitivity: 2.5 psi/°F (31 kPa/°C)
- limit stop adjustment: 45°F and 85°F (7°C and 30°C)
- maximum operating pressure: 30 psi (207 kPa)
- normal air pressure: 18 to 25 psi (124 to 172 kPa)
- nominal air consumption: 25 scim (6.8 ml/sec)
- storage temperature: -10 to 140°F (-23 to 60°C)
- ambient operating temperature: 40 to 140°F (4 to 60°C)
- standard cover: Cycolac, desert beige
- dimensions: 3 11/32?H x 2 5/32?W x 1 19/32?D (8.5 x 5.5 x 4.0 cm)
- construction: Plastic
- color: White
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 5 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
