SIEMENS 1FT6064-6AF71-4TH0 BRUSHLESS SERVOMOTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 1FT6064-6AF71-4TH0
IMS Product Code: 1792660
Packaging: Sold Individually
Description:

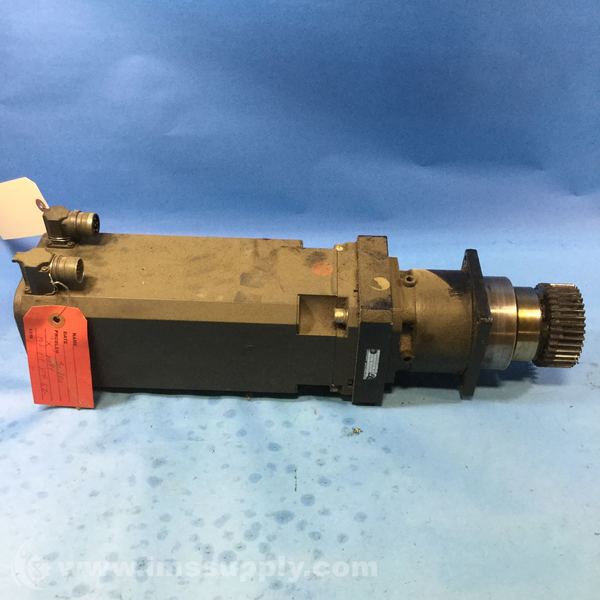

Siemens 1FT6064-6AF71-4TH0 Brushless Servomotor
Synchronous servomotor with 9.5Nm torque, 3000 rpm speed, naturally cooled, IM B5 mounting type, smooth shaft, and holding brake.
Specifications
- Torque: 9.5Nm
- Speed: 3000 rpm
- Cooling Method: Naturally cooled
- Mounting Type: IM B5
- Shaft Type: smooth shaft
- Brake: with holding brake
- Resolver: 2-pole
- Vibration Severity Grade: N
- Seal Type: Labyrinth seal
- IP Rating: IP64

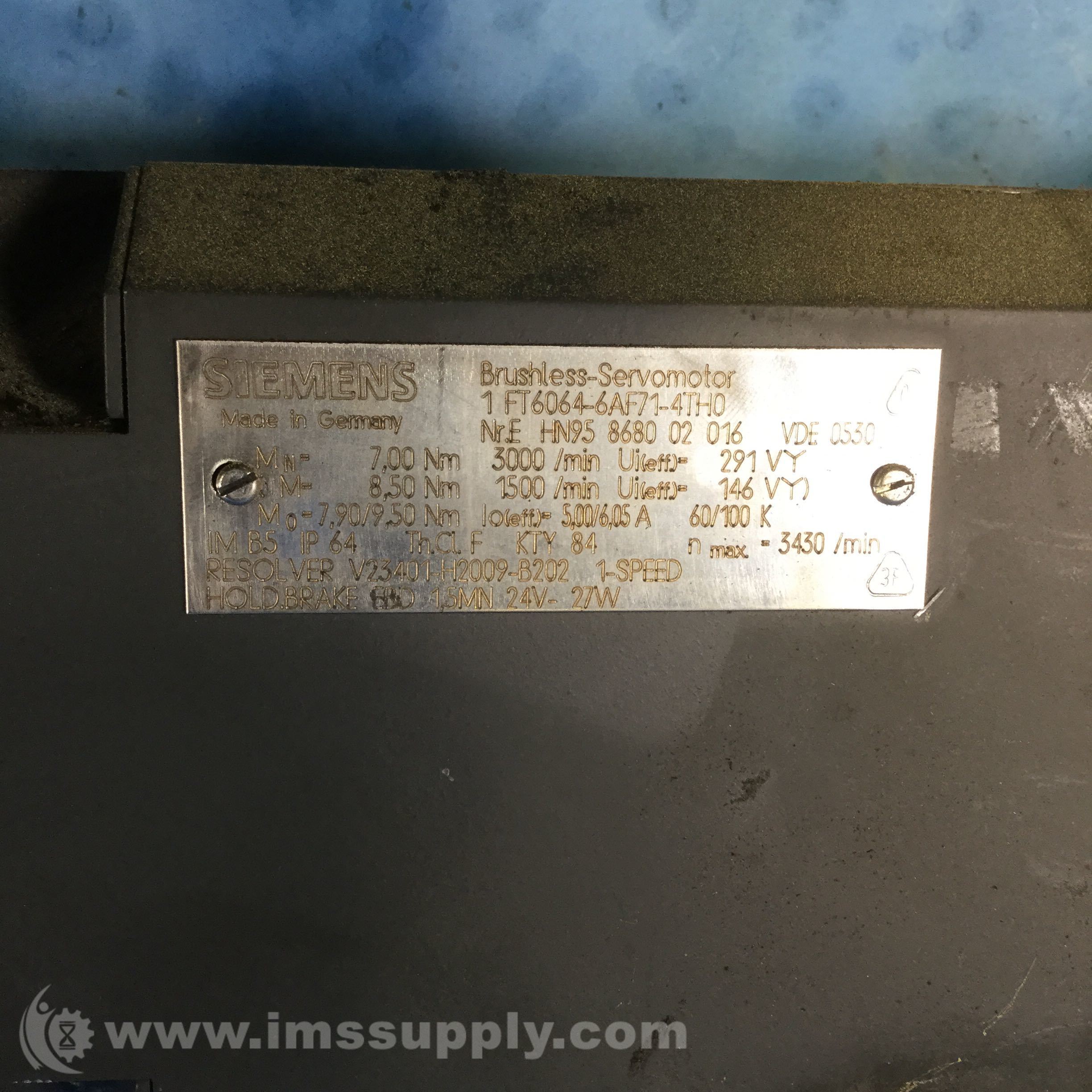

- Nominal Torque: 7.00 Nm
- Effective Voltage: 291 VY
- Maximum Speed: 3430 /min
Used (Special):

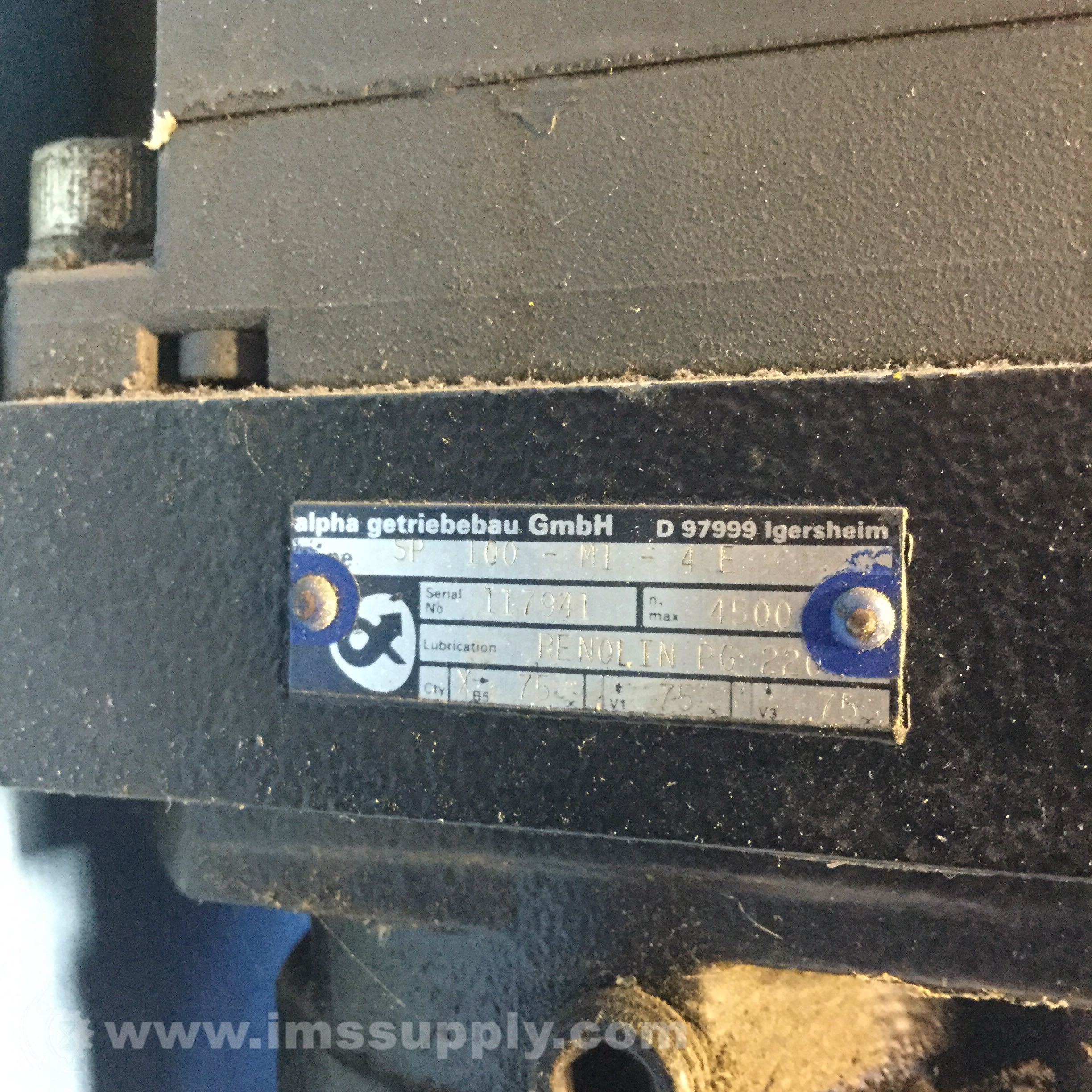

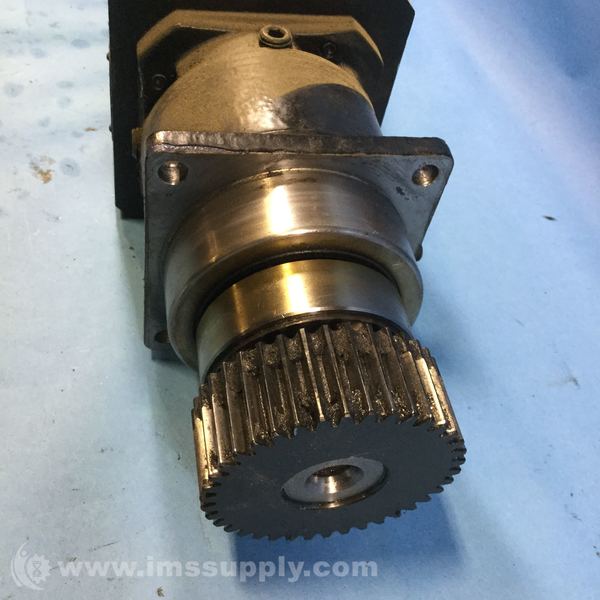

Has an Alpha gearbox part number SP-100-M1-4E attached.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 58 minutes.
