SIEMENS 1LA7090-4AA12 3-PHASE MOTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 1LA7090-4AA12
IMS Product Code: 2154560
Packaging: Sold Individually
Description:

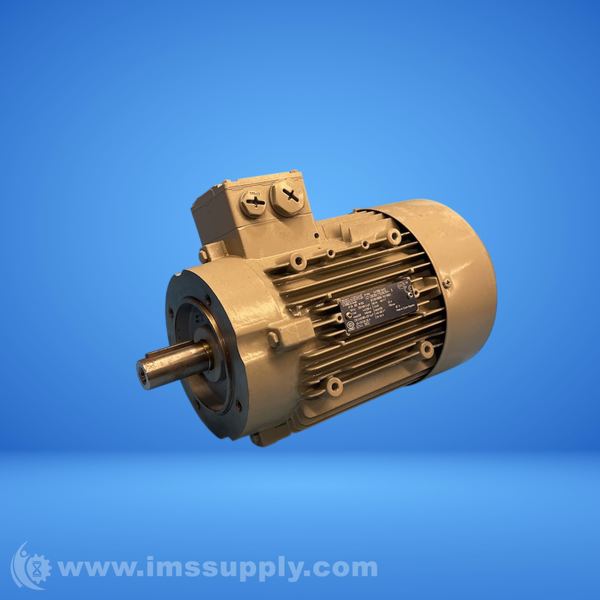

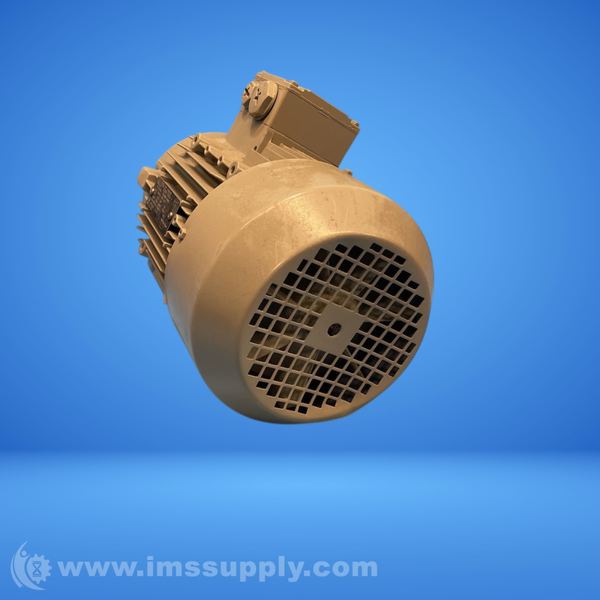

Siemens 1LA7090-4AA12 3-Phase Motor

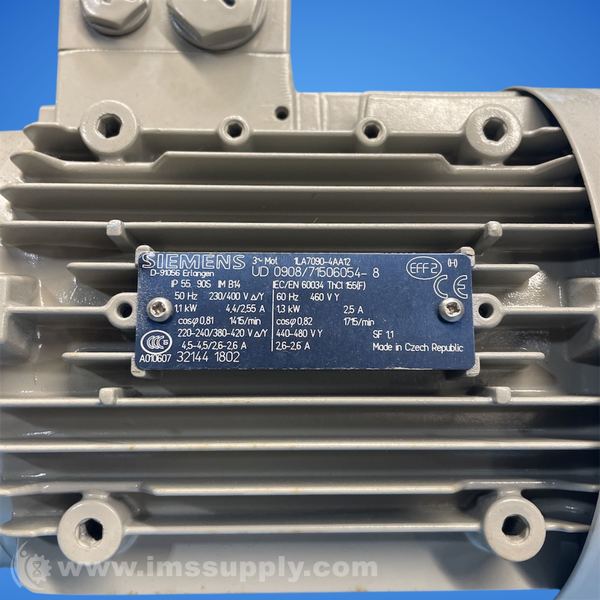

3-phase motor with rated power of 1.1 kW, 1500 RPM at 50Hz, B14 mounting, IP55 protection.
Specifications
- Rated power (kW): 1.1
- Speed at 50Hz (rpm): 1500 / 4-Poles
- Frequency: 50/60 Hz
- Energy efficiency: IE1 = standard = EFF2
- Mounting: B14 (inner flange)
- Brake: No Brake
- IP Class: IP55
- Explosion safety (Atex): No protection
- IEC Framesize: 90
- Voltage: 220-230VD / 380-400VY
- Shaft diameter (mm): 24
- Housing material: Alu
- AC/DC: AC
- Standard: IEC
- Shaft height IEC in JDE: 090
- Shaft length (mm): 50
- Shaft key width (mm): 8
- Shaft key length (mm): 40
- Thread shaft bore: M8
- Shaft height, B3 mounted (mm): 90
- Width foot holes, B3 mounted (mm): 140
- Length foot holes, B3 mounted (mm): S=100, L=125
- Diameter foot holes (mm): 10
- Outer diameter flange B5/V1/B35/V3 (mm): 200
- Spigot B5/V1/B35/V3 (mm): 130
- Pitch circle diameter B5/V1/B35/V3 (mm): 165
- Number of flange holes: 4
- Diameter flange holes B5/V1/B35/V3 (mm): 12
- Pitch circle diameter B14/B34/V18/V19 (mm): 115
- Thread flange holes B14/B34/V18/V19: M8
- Outer diameter flange B14/B34/V18/V19 (mm): 140
- Spigot B14/B34/V18/V19 (mm): 95
- Weight (kg): 13.3

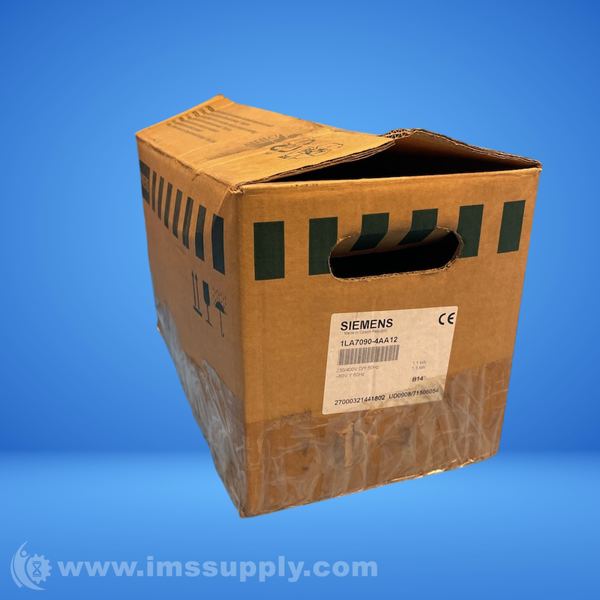

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
