SIEMENS 270-03131 GLOBE VALVE ASSEMBLY
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 270-03131
IMS Product Code: 1834305
Packaging: Sold Individually
Description:

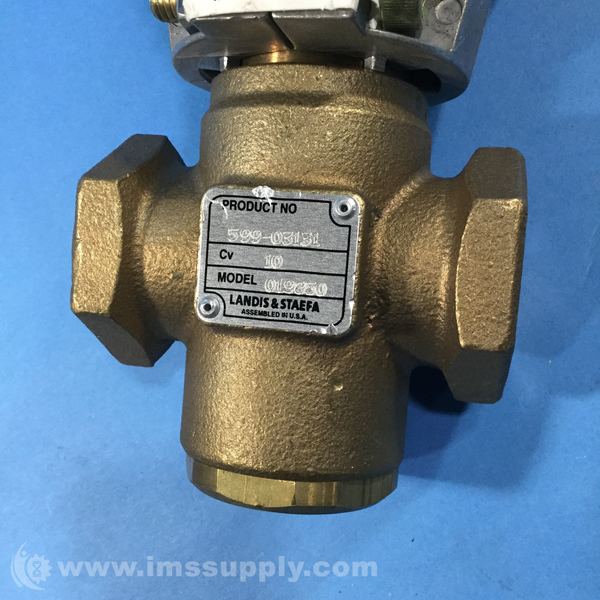

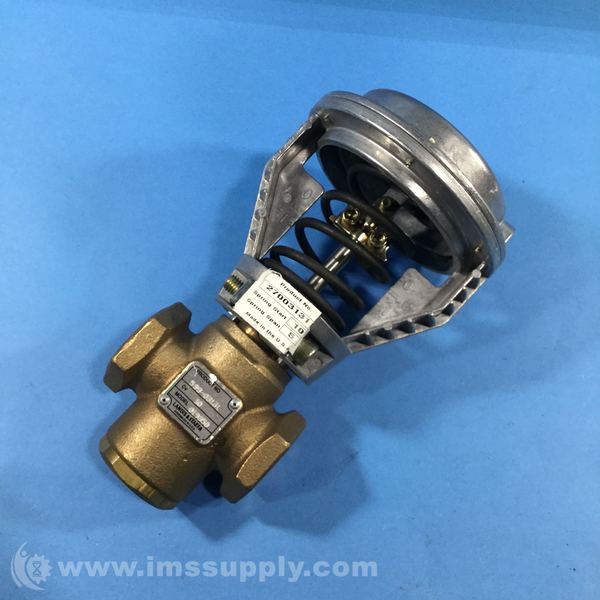

Siemens 270-03131 Globe Valve Assembly
2-way, normally closed, 1-inch globe valve assembly with 10 Cv flow coefficient, stainless steel trim, and 4-inch pneumatic actuator. The actuator operates at 10-15 psi and has a 3/4-inch stroke. The valve features equal percentage flow characteristic and female NPT connections.
Specifications
- Service: Saturated steam, water, glycol solutions up to 50%
- Flow Characteristic: Equal percentage
- Operating Conditions: 337 F (170 C)
- Connection Type: F x F NPT
- Cv: 10
- Trim Material: Stainless Steel

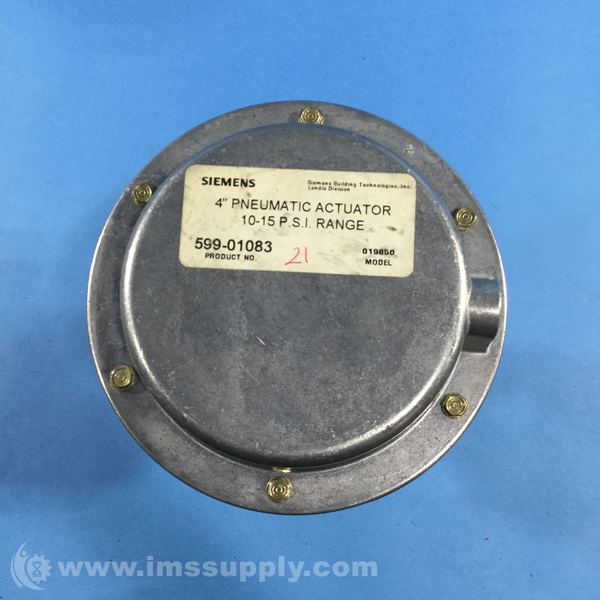

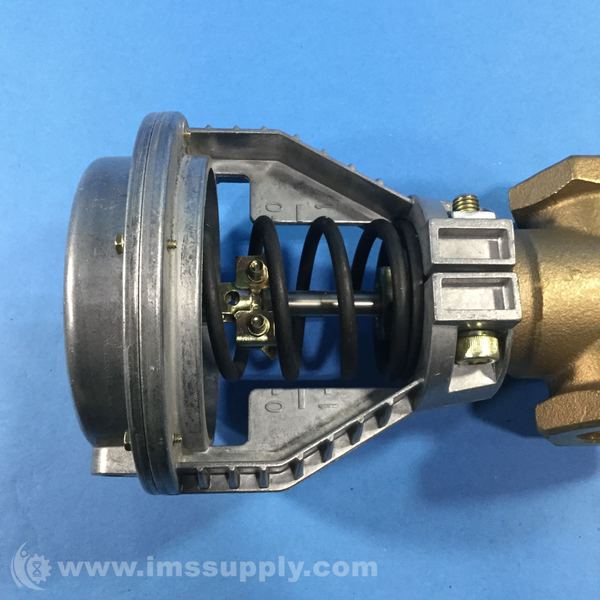

- Actuator Type: Pneumatic Valve Actuator
- Actuator Size: 4 in.
- Operating Pressure: 10 To 15 psi
- Stroke: 3/4 in.
- Air Connection: 1/8 in. NPT Barbed Fitting
- Default Position: Normally Closed
- Max Close-Off Pressure: 91 psi
- Body Pattern: Two-Way
- Valve Style: Globe
- Medium Temperature Range: 20-250 F
- Fail-Safe Mode: Spring Normally Closed
- Net Weight: 3 lbs
- Gross Weight: 3 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
