More Views

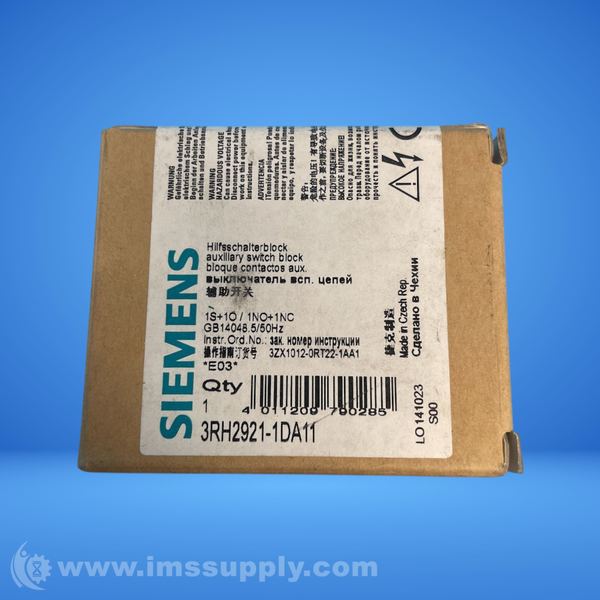

SIEMENS 3RH2921-1DA11 AUXILIARY CONTACT BLOCK
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RH2921-1DA11
IMS Product Code: 2149853
Packaging: Sold Individually
Description:
Siemens 3RH2921-1DA11 Auxiliary Contact Block
Snap-on side mount auxiliary contact block with 1NO and 1NC contacts, conforming to EN 50 005, for use with 3RT20 contactors.
Specifications
- Mounting Type: Snap on side mount
- Contacts: 1NO and 1NC
- Conforms To: EN 50 005
- For Use With: 3RT201 Contactors, 3RT202 Contactors, 3RT203 Contactors, 3RT204 Contactors
- Series: 3RH
- Voltage: 600VAC
- Temperature Rating: -25 to 60 degrees C
- Nema Size: S0
- Contact Configuration: 1 NO, 1 NC
- Number of poles: 2
- Terminals: Screw
- Current: 1/0.26 A
- Contact Resistance: 6 kV
- Operating Cycles: 200000 Cycles
- Dimensions: 57.4 mm H x 10 mm W x 66 mm D
- IP Rating: IP20
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 13 minutes.
