SIEMENS 3RT1017-1BB41 CONTACTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RT1017-1BB41
IMS Product Code: 1203937
Packaging: Sold Individually
Description:

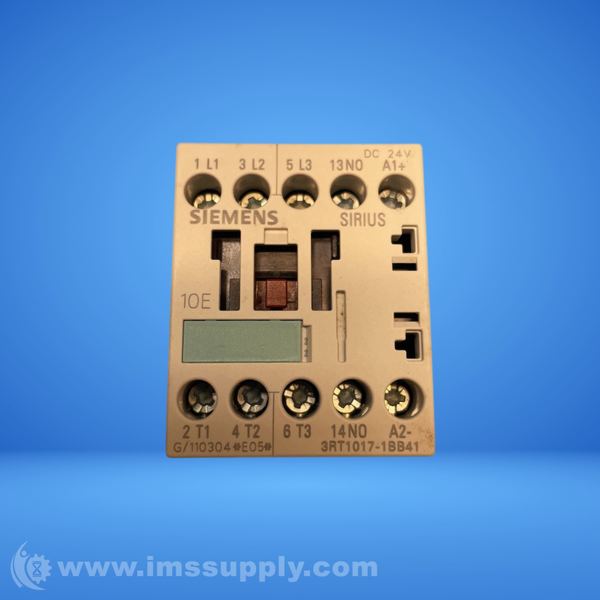

Siemens 3RT1017-1BB41 Contactor
Siemens Sirius 3RT1017-1BB41 three pole IEC contactor rated for 12A AC-3 and 22A AC-1, used for controlling electric motors. It has a 24V DC coil, 1 normally open auxiliary contact, and screw terminals for easy installation on 35mm DIN rail.
Specifications
- Rated Current AC-3: 12 AMPS
- Rated Current AC-1: 22 AMPS
- Rated Voltage: 460 volt
- Horsepower Rating: 3 H.P. @ 460 volt and 7.5 H.P. @ 460 volt 3-phase
- Coil Voltage: 24 volt DC

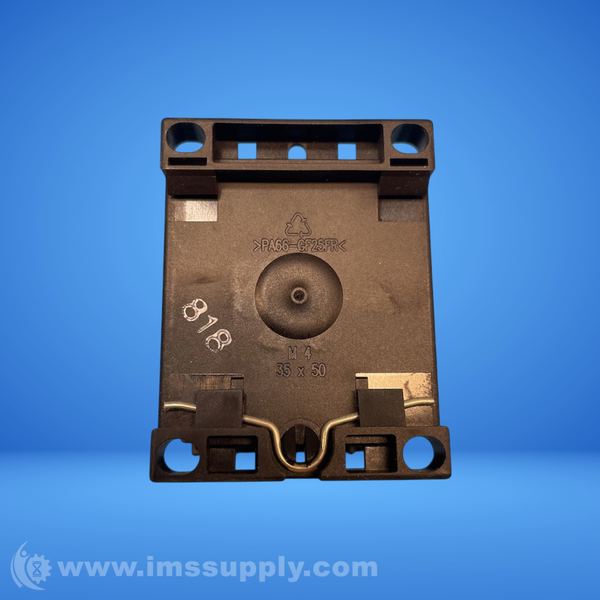

- Mounting Type: 35MM DIN rail
- Auxiliary Contact: Normally Open (N.O.) base mounted
- Frame Size: S00
- Number of Poles: 3
- Type: Non-Reversing
- Operating Ambient Temperature: -25 degrees C To +60 degrees C
- Terminal Type: Screw Type Terminals
- Protection Rating: IP20
- Net Weight: 0.265 Kg
