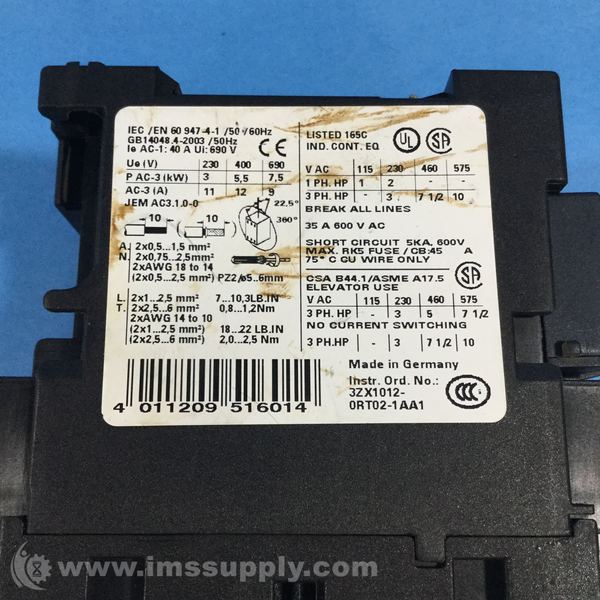

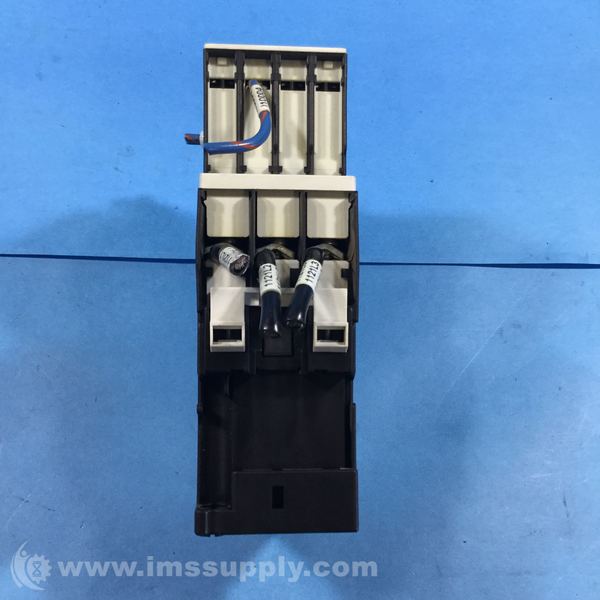

SIEMENS 3RT1024-1B POWER CONTACTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RT1024-1B
IMS Product Code: 1757205
Packaging: Sold Individually
Description:
Siemens 3RT1024-1B Power Contactor

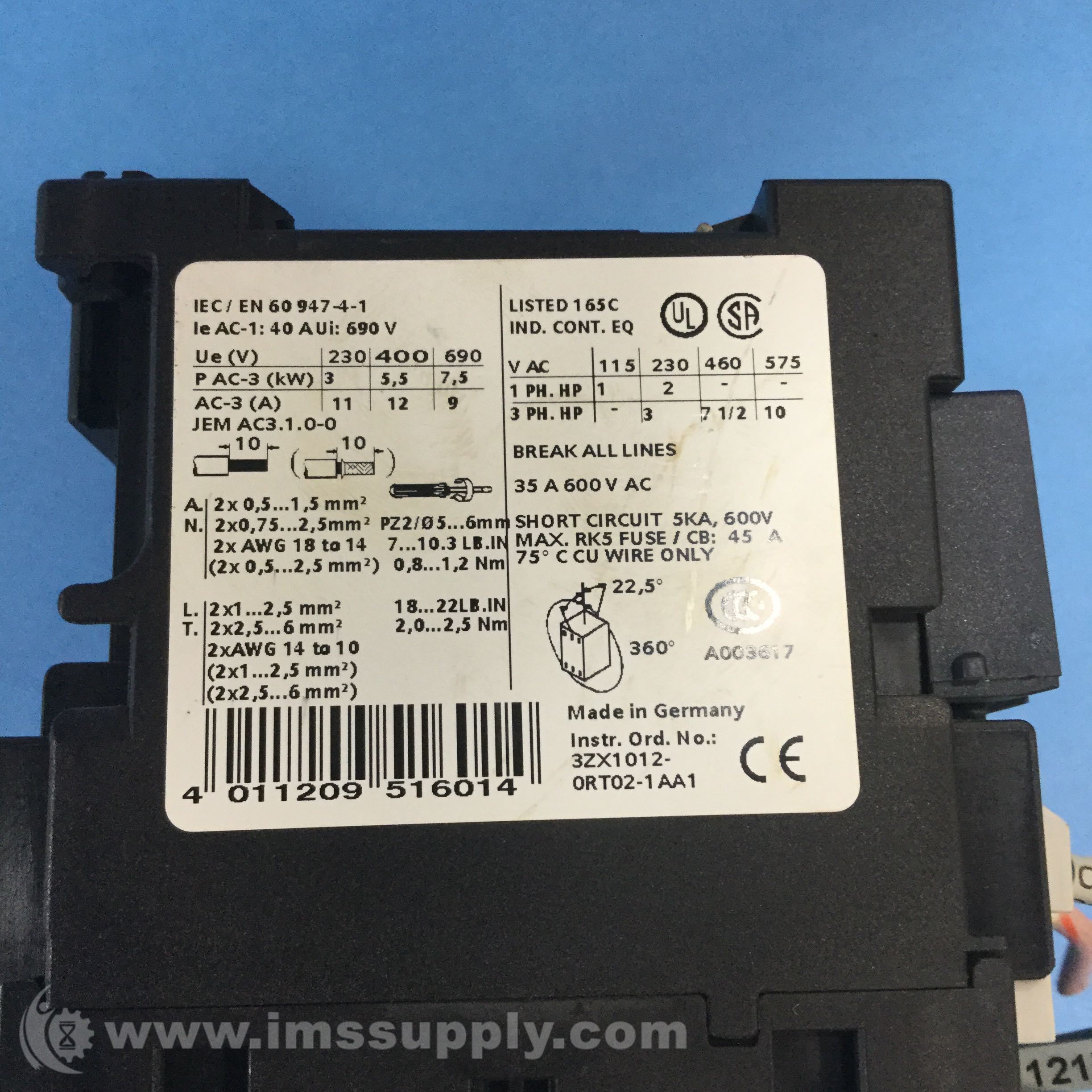

3-pole IEC contactor rated for 12 AMPS AC-3 and 40 AMPS AC-1, with DC coil voltage and screw terminals. Suitable for starting 3-phase motors up to 3 HP @ 230 volts and 7½ HP @ 460 volts.
Specifications
- Series: Sirius
- Type: Power contactor
- Current Rating: 35 A
- Voltage: 230-690 VAC
- Coil Voltage: DC
- Mounting: 35MM DIN rail
- Terminal Type: Screw terminals
- Rated Operational Current (AC-3, 400V): 17 A
- Rated Operational Current (AC-1, 400V): 35 A
- Control Supply Voltage: 24 V DC
- Auxiliary Contacts: 1 NO + 1 NC (integrated)
- Rated Insulation Voltage (Ui): 690 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Operating Temperature Range: -25 to +60 degrees C
- Mechanical Life: Approximately 10 million switching cycles
- Electrical Life (AC-3): Approximately 1 million switching cycles
- Weight: Approximately 0.35 kg
Used (Special):

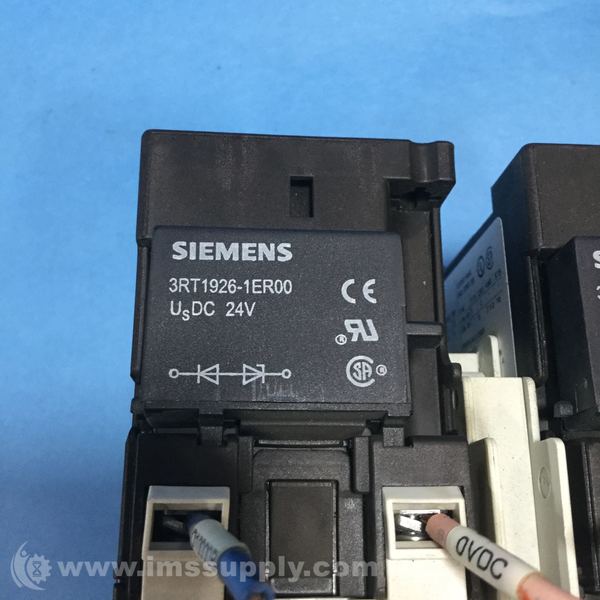

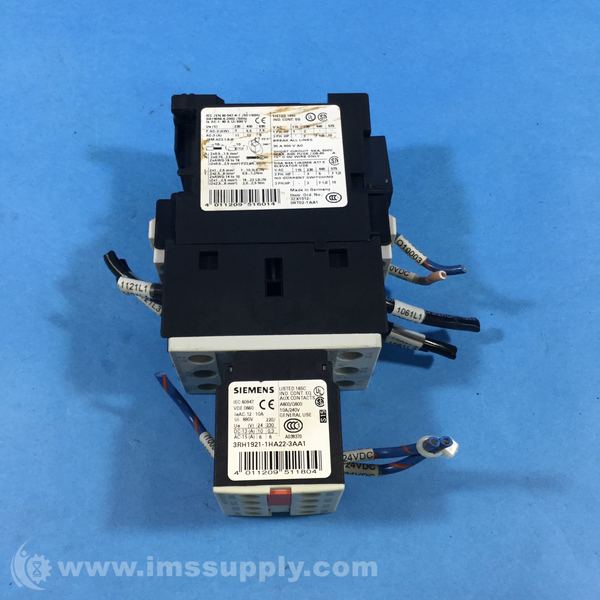

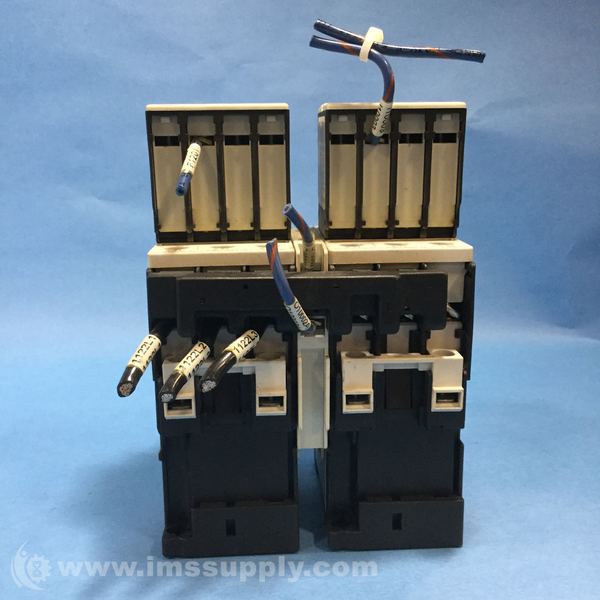

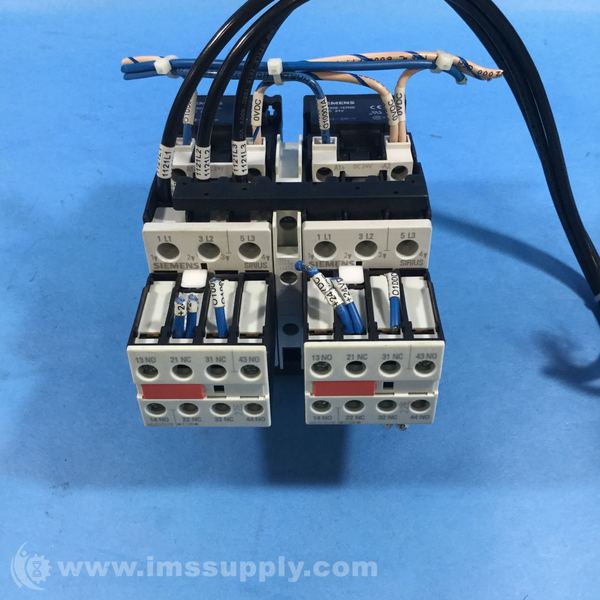

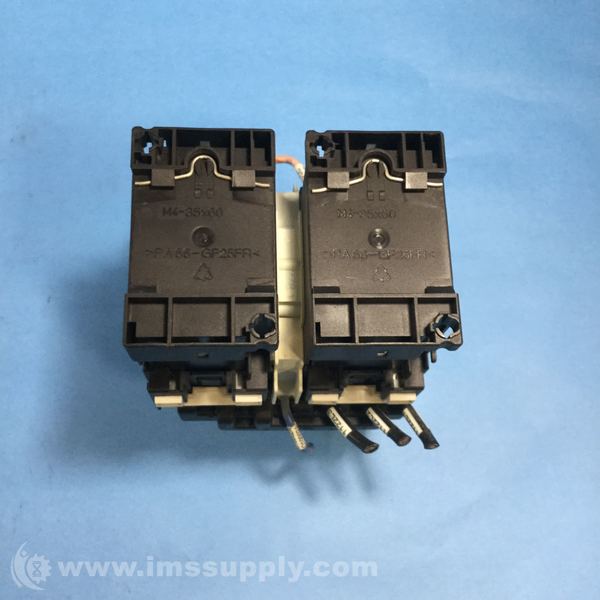

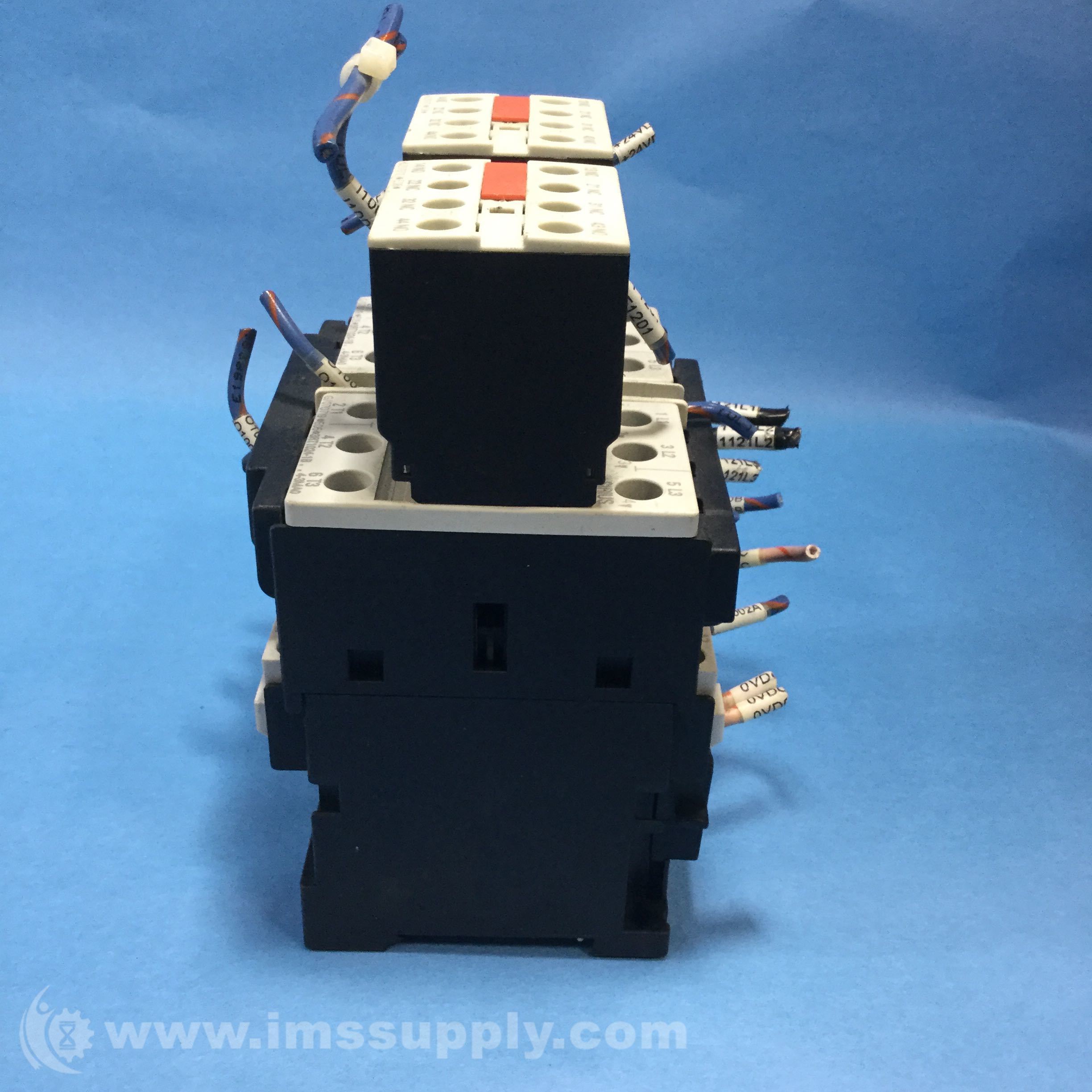

2 of 3RT1024-1B attached together. Additional Siemens part numbers 3RH1921-1HA22-3AA1 and 3RT1926-1ER00 attached to each.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 51 minutes.
Used (Special):

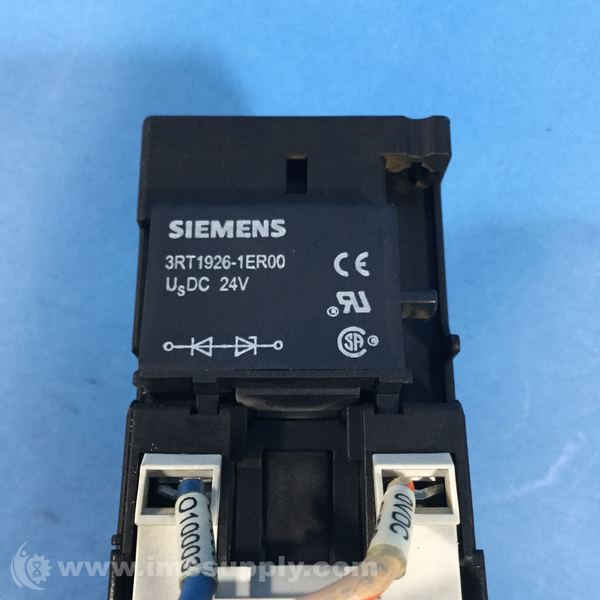

Additional Siemens part numbers 3RT1926-1ER00 and 3RH1921-1HA22-3AA1 attached
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 51 minutes.
Used (Special):

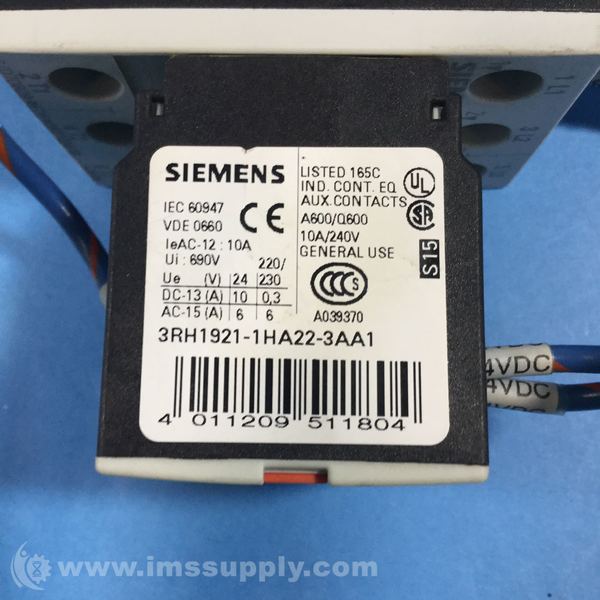

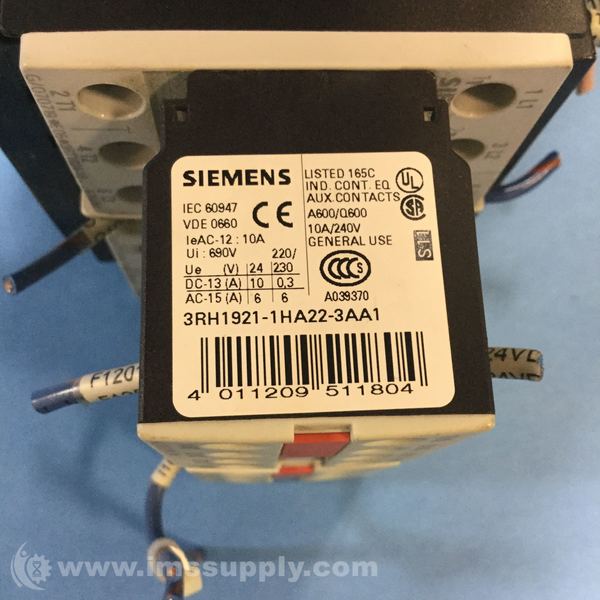

Additional Siemens Parts 3RH1921-1HA22-3AA1 and 3RT1926-1ER00 attached to unit
Availability: 3 In Stock
Ships today if ordered in the next 12 hours and 51 minutes.
Used (Special):

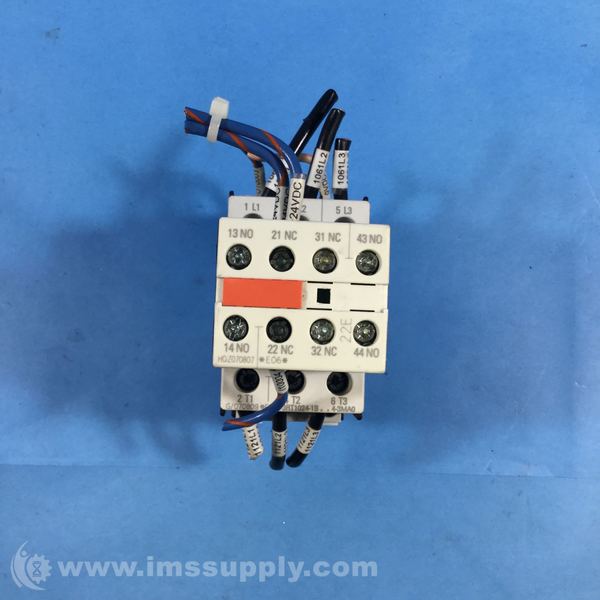

One 3RT1024-1B , two 3RH1921-1HA22-3AA1 and two 3RT1926-1ER00 attached.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 51 minutes.
