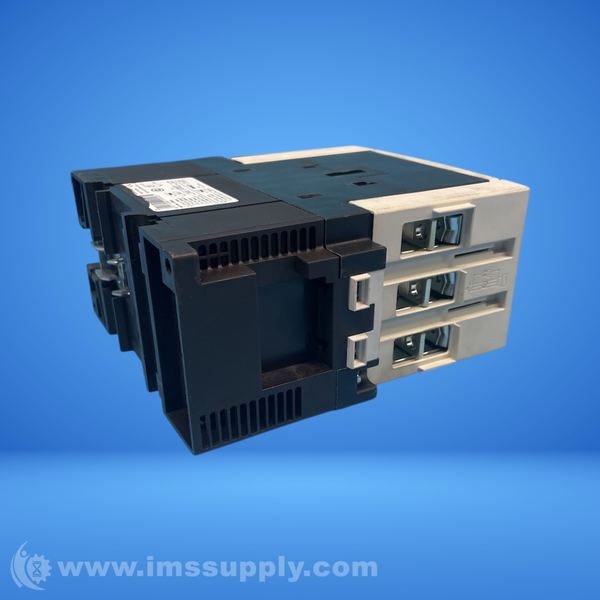

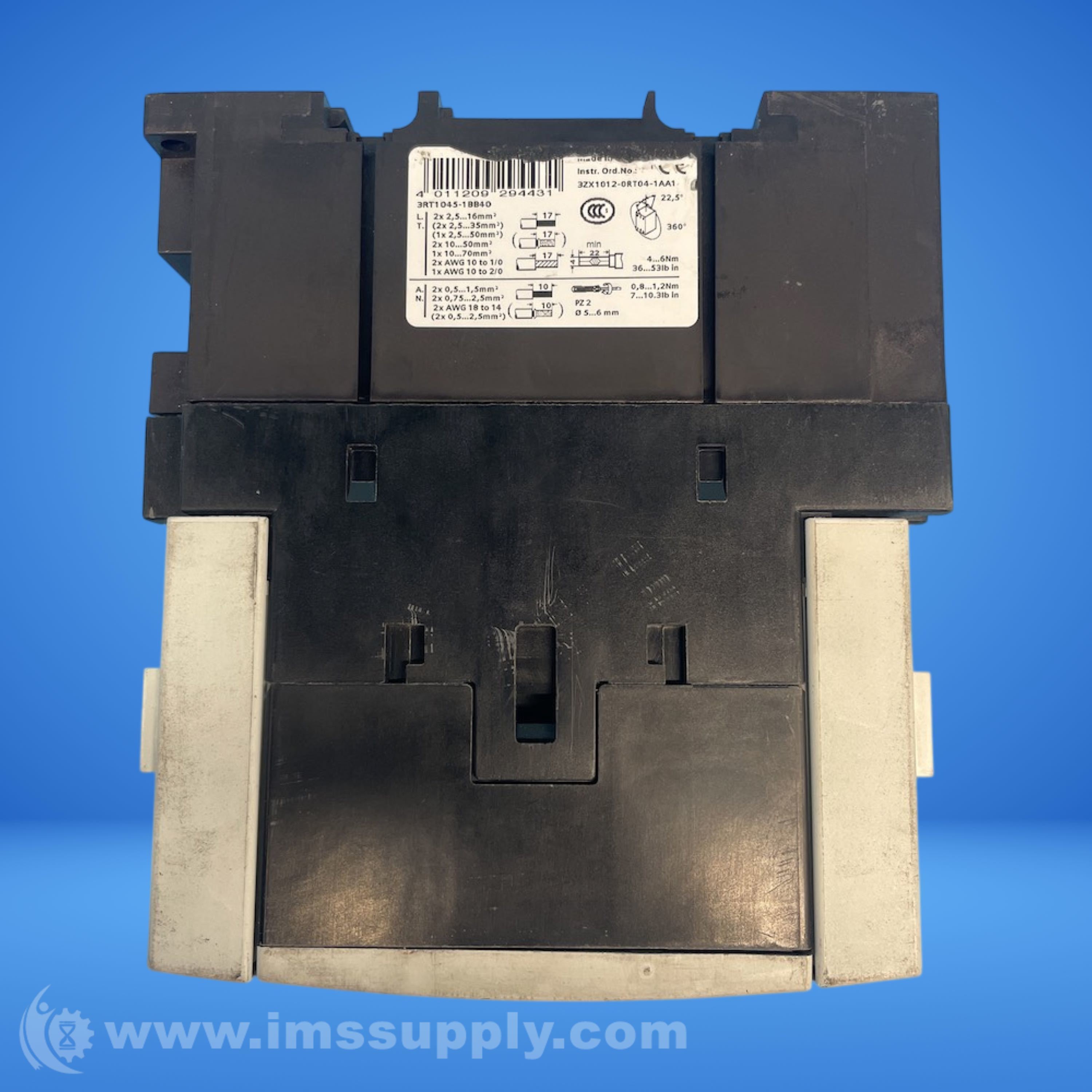

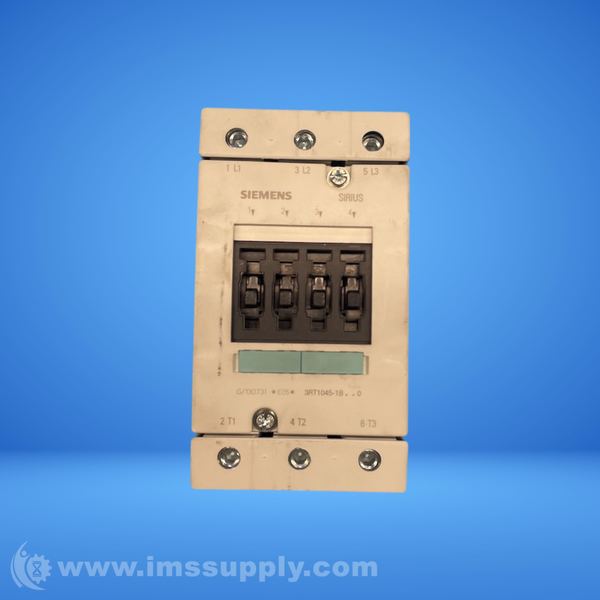

SIEMENS 3RT1045-1BB40 CONTACTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RT1045-1BB40
IMS Product Code: 1204002
Packaging: Sold Individually
Description:

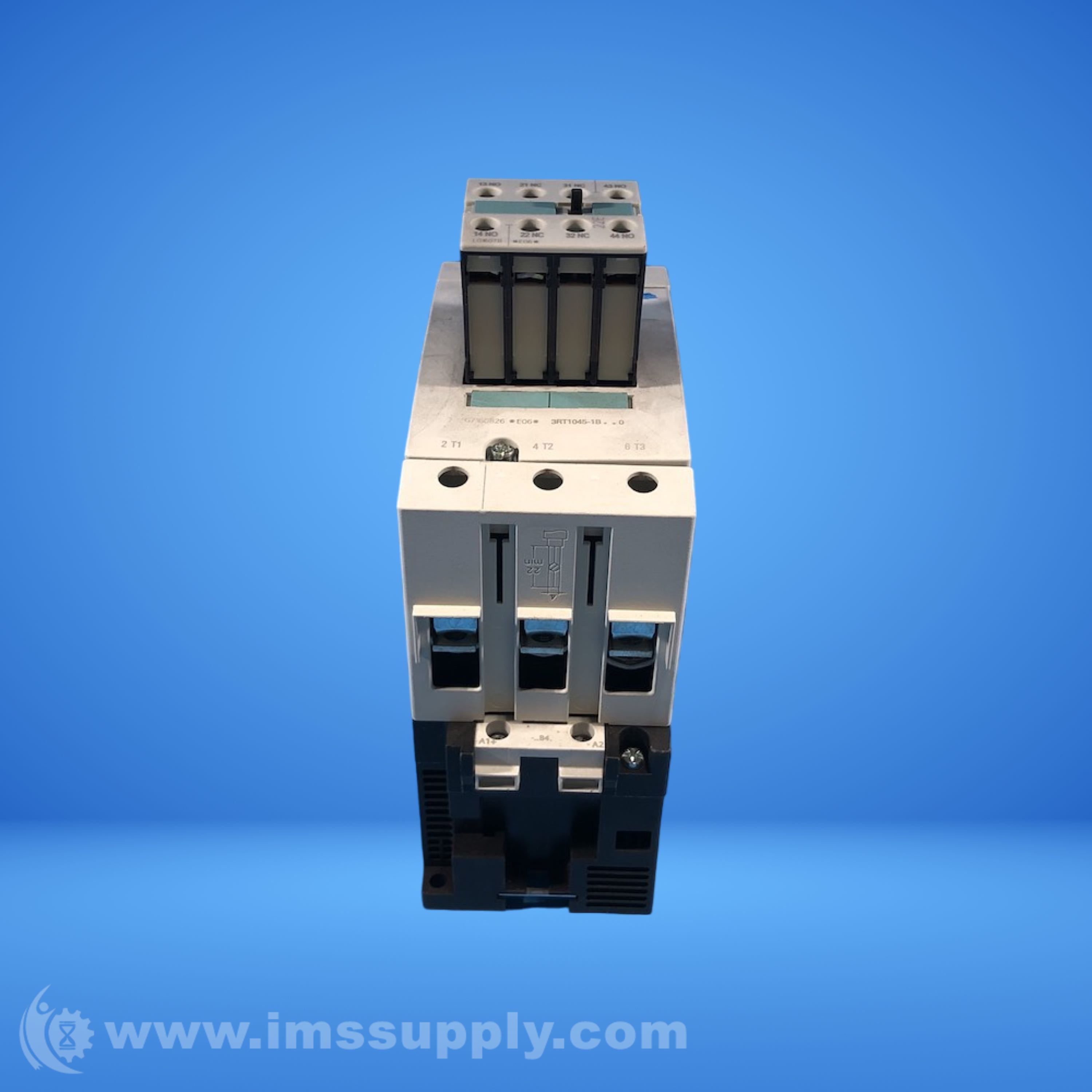

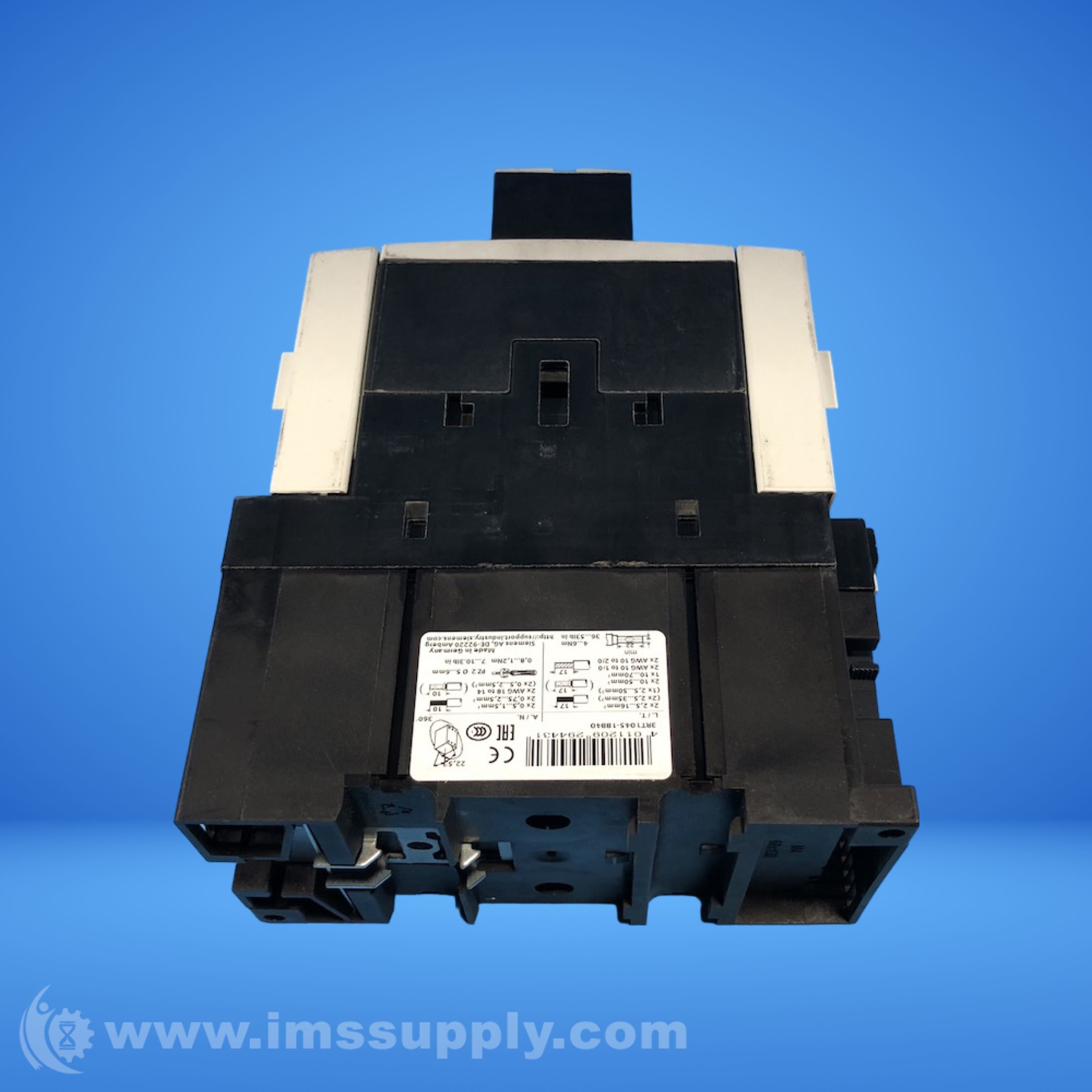

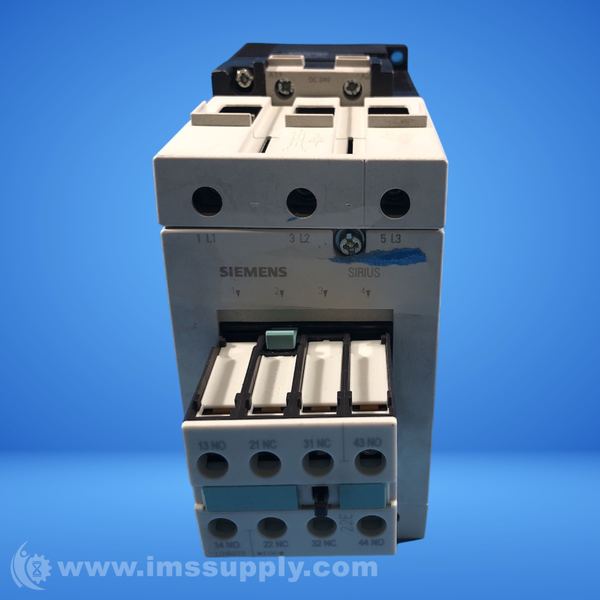

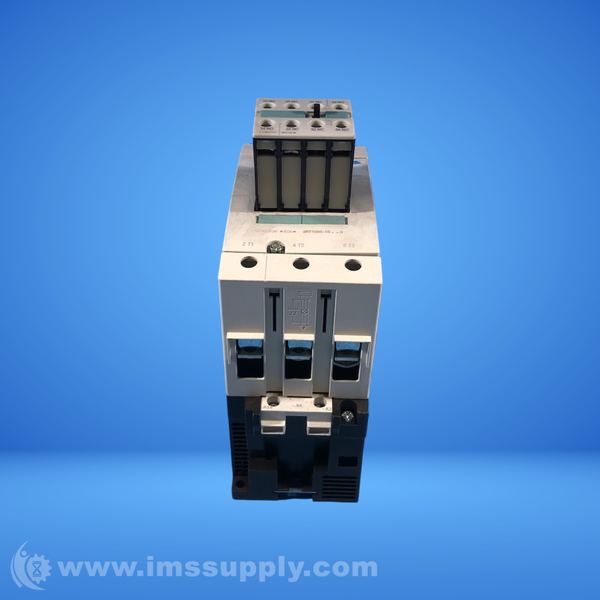

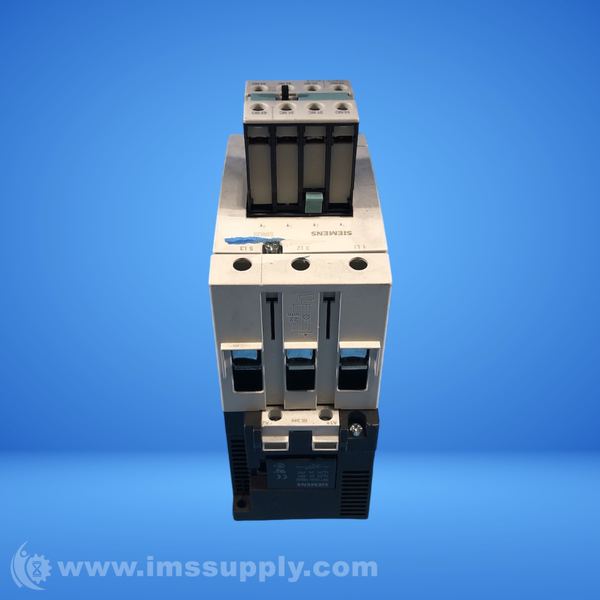

Siemens 3RT1045-1BB40 Contactor
3-phase IEC contactor rated 80A AC-3, 24V DC coil, screw terminals, DIN rail mount

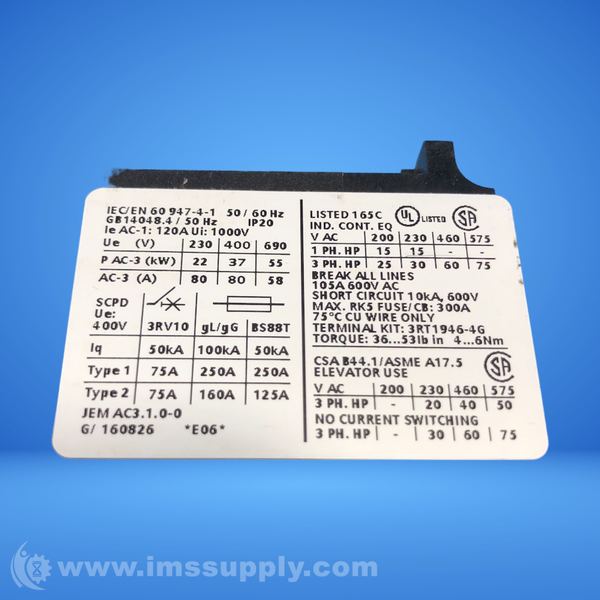

Specifications
- DC Operating Coil Voltage: 24VDC
- Frame Size: S3
- Amp ratings AC3: 80
- Amp ratings AC1: 120
- Three phase HP ratings 230V: 30
- Three phase HP ratings 460V: 60
- Maximum Horsepower Single Phase: 7.5
- Maximum Horsepower Three Phase 230v: 30
- Maximum Horsepower Three Phase 460v: 60
- Maximum Horsepower Three Phase 575v: 75
- Maximum Current Inductive AC-1 (A): 80
- Maximum Current Resistive AC-3 (A): 80
- # OF POLES: 3
- Auxiliary Contacts N.O.: 0
- Auxiliary Contacts N.C.: 0
- Rated Current AC-3: 80 AMPS
- Rated Current AC-1: 120 AMPS
- Horsepower @ 230V: 30 H.P.
- Horsepower @ 460V: 60 H.P.
- Mounting: 35MM DIN rail
- Weight: 2.74 kgs
- AC-3 Rating: 80 A, 37 kW / 400 V
- Size: S3
- Number of Poles: 3
- Contact Current Rating: 80 A
- Current Rating: 80 A
- Max Operating Temperature: 60 degrees C
- Min Operating Temperature: -25 degrees C
- Power Rating: 37 kW

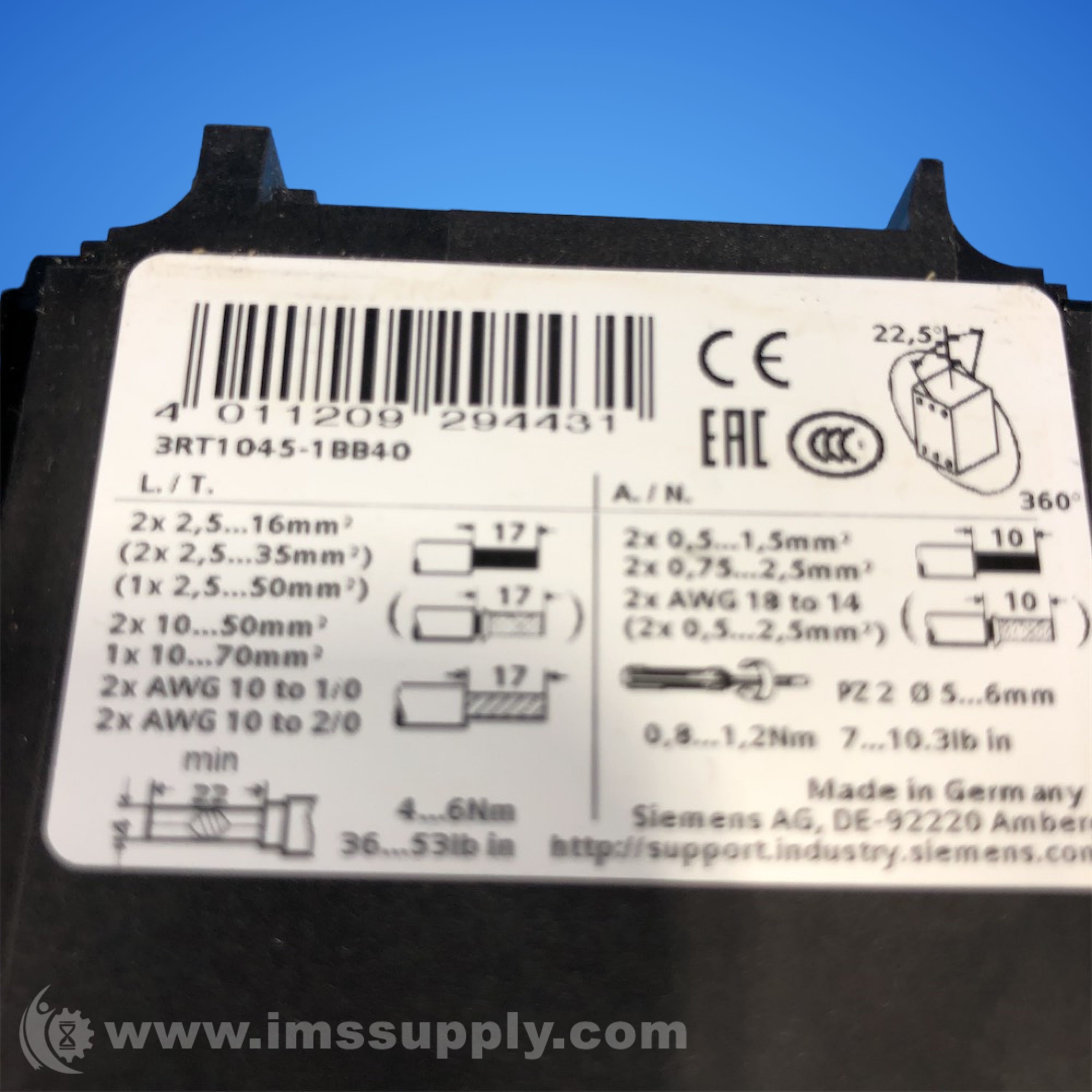

- Termination: Screw
- Throw Configuration: 3P
- Voltage Rating (AC): 400 V
- Depth: 2.9972 mm
- Length: 145.9992 mm
- Width: 70.0024 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 8 minutes.
Used (Special):

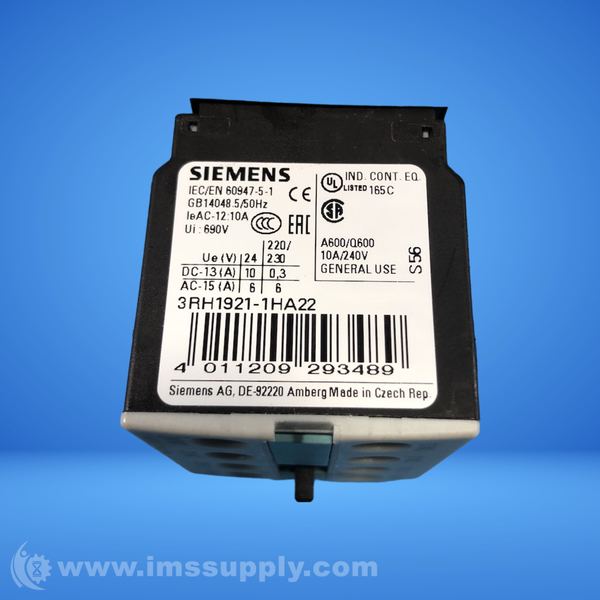

Part come with 1 PN: 3RH1921-1HA22.
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 8 minutes.
