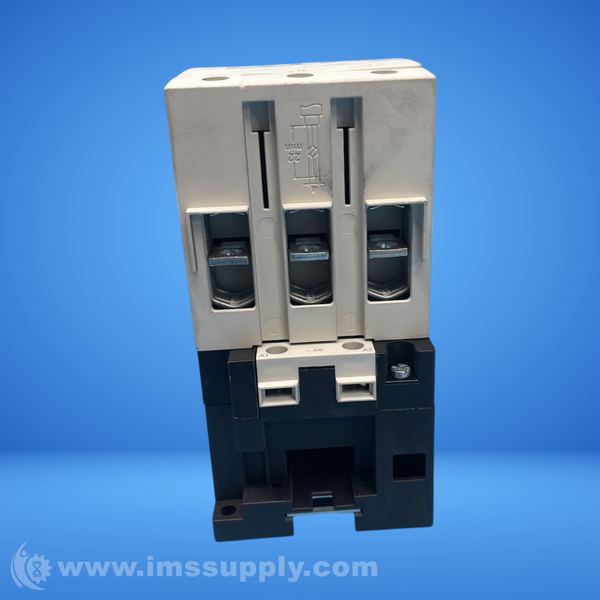

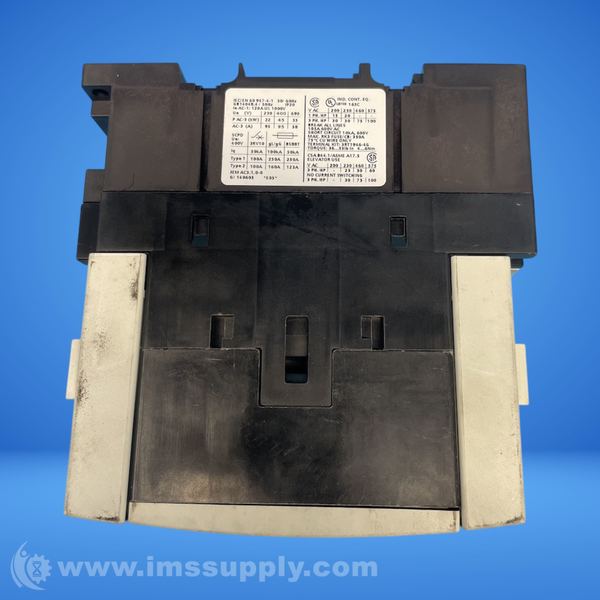

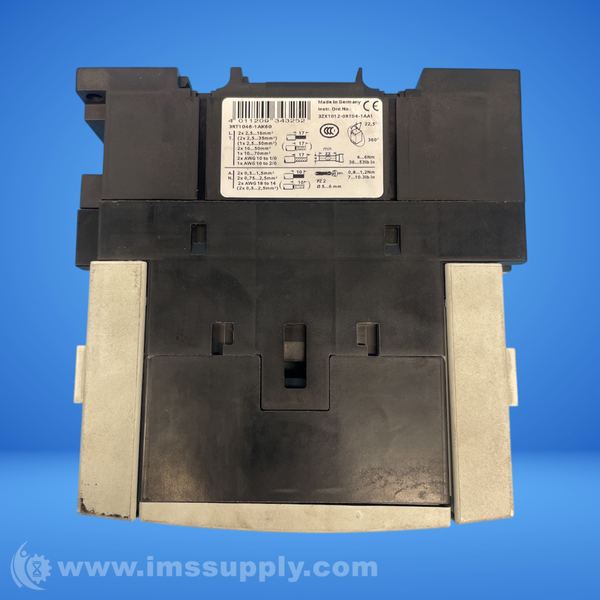

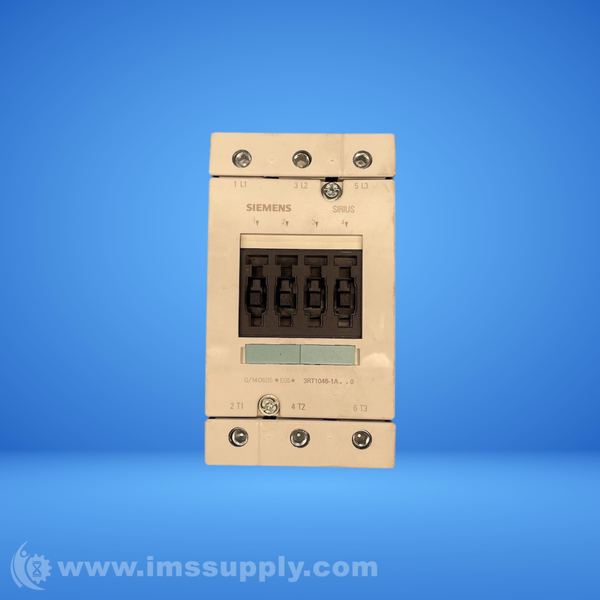

SIEMENS 3RT1046-1AK60 3-POLE CONTACTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RT1046-1AK60
IMS Product Code: 1204006
Packaging: Sold Individually
Description:
Siemens 3RT1046-1AK60 3-Pole Contactor
3-phase IEC rated contactor used for the control of electric motors. Rated for 95 AMPS AC-3 and 120 AMPS AC-1, with 110/120 VAC coil voltage and screw terminals.
Specifications
- AC Operating Coil Voltage: 110V 50Hz / 120V 60Hz
- Three phase HP ratings at 230V: 30
- Three phase HP ratings at 460V: 75
- Frame Size: S3
- Amp ratings AC3: 95
- Amp ratings AC1: 120
- Pole: 3
- Amp: 95
- Volt: 600
- Phase: 3
- Type: 3RT10
- Dimensions (HxWxD): 3.13 x 6.339 x 6.575
- Weight: 4.05 lb
- AC-3 Rating: 95 AMPS
- AC-1 Rating: 120 AMPS
- Horsepower Rating at 230V: 30 H.P.
- Horsepower Rating at 460V: 75 H.P.
- Coil Voltage: 110v50Hz/120v60Hz AC
- Terminal Type: Screw terminals
- Mounting Type: 35MM DIN rail
- Frequency Rating: 50/60 Hz
- Maximum Load Current: 95 A
- Operating Cycles: 10000000 Cycles
- Operating Temperature: -25 to 60 deg C
- Power Factor: 0.52 Closing, 0.29 Holding
- Size: SZ S3
- Terminal: Screw
- Wattage: 45 kW
- Dimensions: 146 mm H x 70 mm W x 139 mm D
- Coil Power Rating: 300 VA Pickup, 21 VA Holding
- Contact Configuration: 3NO
- Enclosure Type: IP00/IP20
- Series: 3RT
- Amperage: 95
- Voltage: 400VAC
- Poles: 3
- Connection Type: Screw
- Standards: UL, CSA, IEC, CAC, CE, GOST
- Temperature Rating: -25 to 60°C
- Nema Size: S3
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
