SIEMENS 3RV1011-0EA15 CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1011-0EA15
IMS Product Code: 2164812
Packaging: Sold Individually
Description:

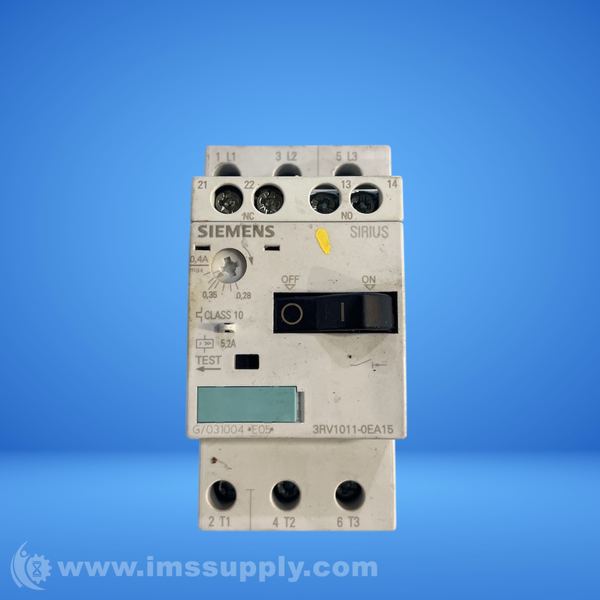

Siemens 3RV1011-0EA15 Circuit Breaker
Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.28...0.4 A N-release 5.2 A Screw terminal Standard switching capacity with transverse auxiliary switch 1 NO+1 NC
Specifications
- Product family: SIRIUS 3RV1 motor starter protectors
- Article Number: 3RV1011-0EA15
- Net Weight: 0.240 Kg
- Country of origin: Germany
- Dimensions: 3.31 inches in height, 3.94 inches in length, 45 mm in width
- Operating Voltage: 20...690 V
- Adjustable current response value: 0.28...0.4 A
- Operational current at AC-3 at 400 V: 0.4 A
- Operating power at AC-3 at 400 V: 0.09 kW
- Number of poles for main current circuit: 3
- Protection Degree: IP20
- Certificates: CE, CSA, UL, cULus, FM, RCM (formerly C-TICK), KC, Marine
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
