SIEMENS 3RV1011-0FA10 MOTOR PROTECTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1011-0FA10
IMS Product Code: 1204133
Packaging: Sold Individually
Description:

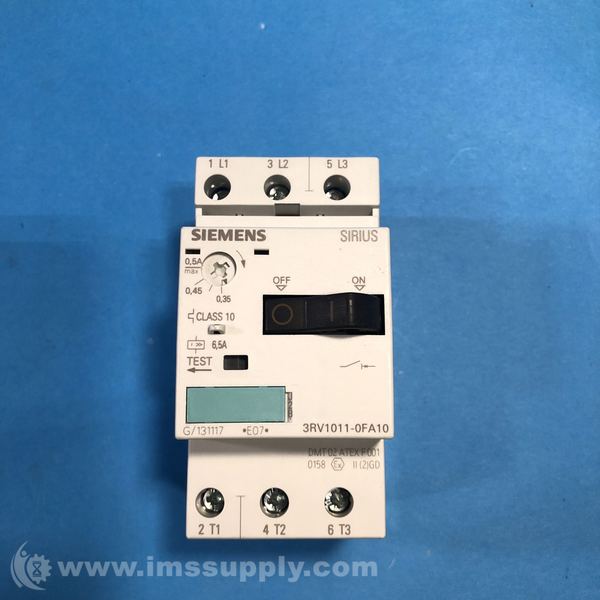

Siemens 3RV1011-0FA10 Motor Protector
Circuit breaker for motor protection with thermal overload release and magnetic trip. Features screw terminal connection and DIN rail mounting.
Specifications
- type: Circuit Breaker / Motor Protector
- setting range for thermal overload releases: 0.35 - 0.5
- class: 10
- frame size: S00
- amperage rating: 0.35 to 0.5, 0.5 A
- dimensions: 90 mm H x 45 mm W x 75 mm D, 90 mm H x 45 mm W x 81 mm D
- enclosure type: IP00/IP20, IP20
- frame: 3RV1/S00, S00
- frequency rating: 50/60, 50/60 Hz
- interrupt rating: 100, 100 kA
- number of poles: 3
- phase: 3
- temperature rating: -20 to 60, -20 to 60 deg C
- trip range: 0.35 to 0.5/6.5 A
- trip type: Thermal Magnetic, Thermomagnetic
- wire size: 0.5 to 4 sq-mm
- connection type: Screw
- country of origin: DE
- mounting type: DIN Rail/Snap-On/Threaded
