SIEMENS 3RV1011-1CA15 MOTOR PROTECTION CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1011-1CA15
IMS Product Code: 2164816
Packaging: Sold Individually
Description:

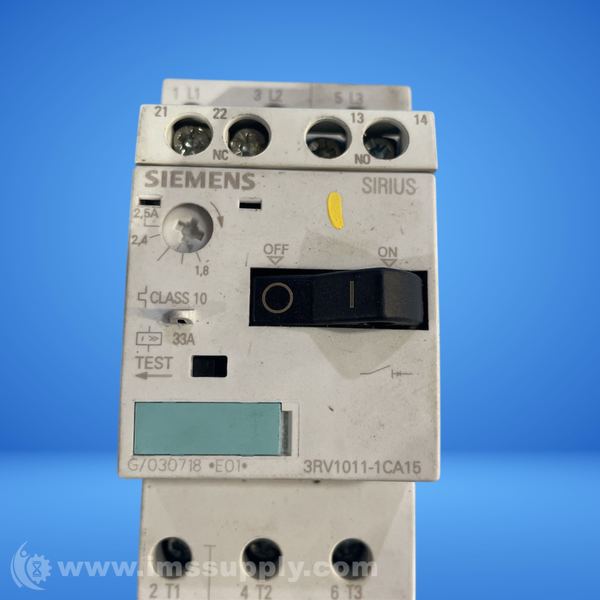

Siemens 3RV1011-1CA15 Motor Protection Circuit Breaker
Siemens Motor Protection Circuit Breaker, 690 V AC, 1.8 to 2.5 A, 1.5 kW Power, 50/60 Hz Frequency, 2 kA Interrupt, 3RV1/S00 Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Screw Connection, 1NO-1NC Auxiliary, IP20 Enclosure, DIN Rail Mounting, -20 to 60 deg C, 90 mm H x 45 mm W x 81 mm D Dimensions
Specifications
- type: Motor Protection Circuit Breaker
- rated_current: 1.8-2.5 A
- rated_voltage: 690 V AC
- number_of_poles: 3
- protection_function: Short-circuit and overload protection
- standard: IEC/EN 60947-2
- certification: CE, UL, CSA
- operating_temperature: -20...+60 �C
- mounting_type: DIN rail or screw mounting
- connection_type: Screw connection
- protection_type_ip: IP20
- release_system: magnetic
- tripping_principle: thermomagnetic
- height: 90 mm
- width: 45 mm
- depth: 81 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
