SIEMENS 3RV1021-0EA10 MOTOR PROTECTOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1021-0EA10
IMS Product Code: 1204161
Packaging: Sold Individually
Description:

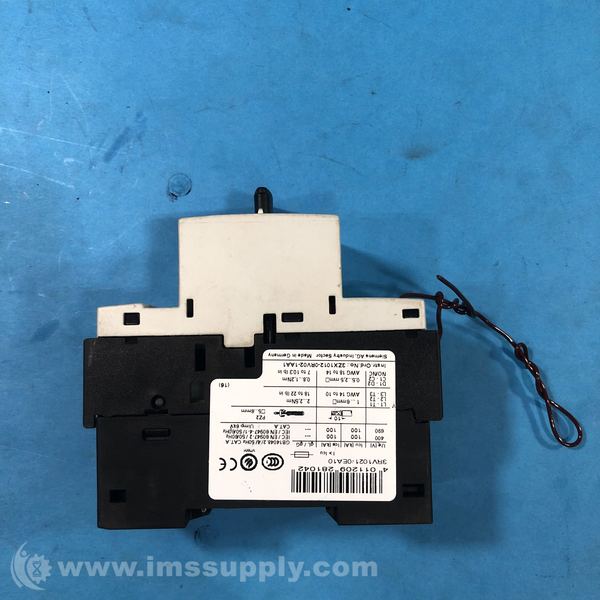

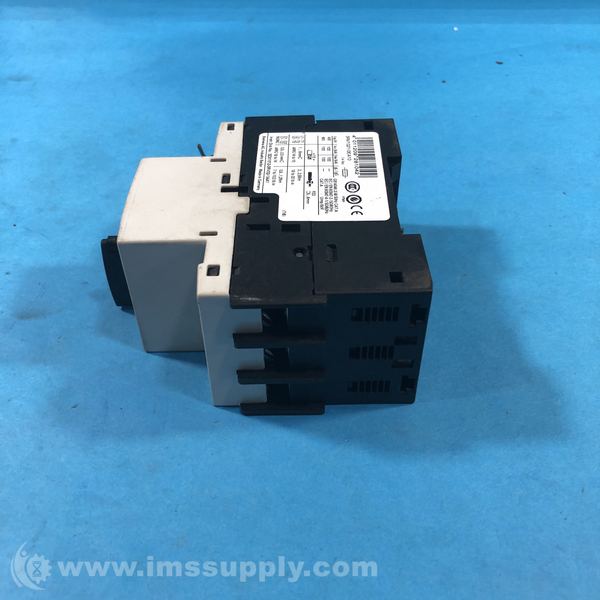

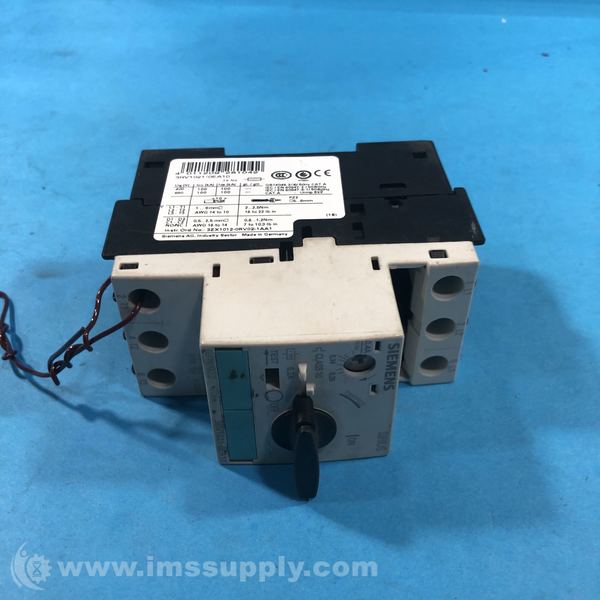

Siemens 3RV1021-0EA10 Motor Protector
Manual motor starter/overload protector with adjustable AMP range from 0.28 to 0.4 AMPS, class 10 overload trip characteristics, and magnetic trip elements for short circuit protection.
Specifications
- Type: Circuit Breaker / Motor Protector
- Class: 10
- Frame Size: S0
- Setting Range for Thermal Overload Releases: 0.28 - 0.4
- AMP Range: 0.28 to 0.4 AMPS
- Trip Characteristics: Class 10
- Mounting: 35MM DIN Rail
- Weight: 0.60 LBS
- Adjustment Range: 0.28-0.4A
- Mounting Type: DIN rail
- Tripping Characteristic: Class 10
- Trip Indication: Visible trip indication
- Short Circuit Trip: 12 times the maximum setting of the FLA adjustment dial
- Ambient Compensation: Up to 140 degrees F
- Phase Loss Sensitivity: Yes
- Test Trip Function: Yes
- Number of Poles: 3
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
