SIEMENS 3RV1021-1CA10 MOTOR PROTECTION CIRCUIT BREAKER
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 3RV1021-1CA10
IMS Product Code: 1204171
Packaging: Sold Individually
Description:

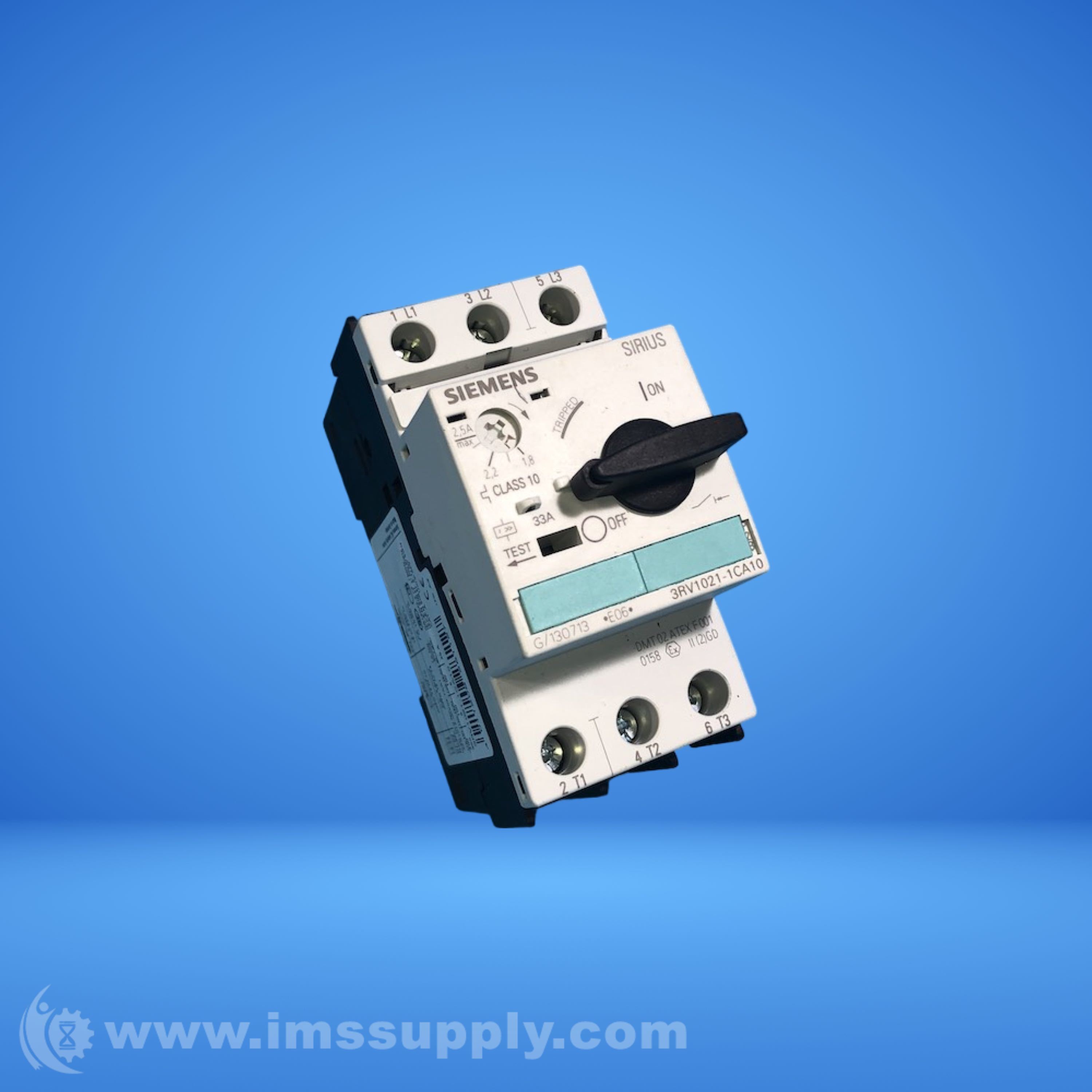

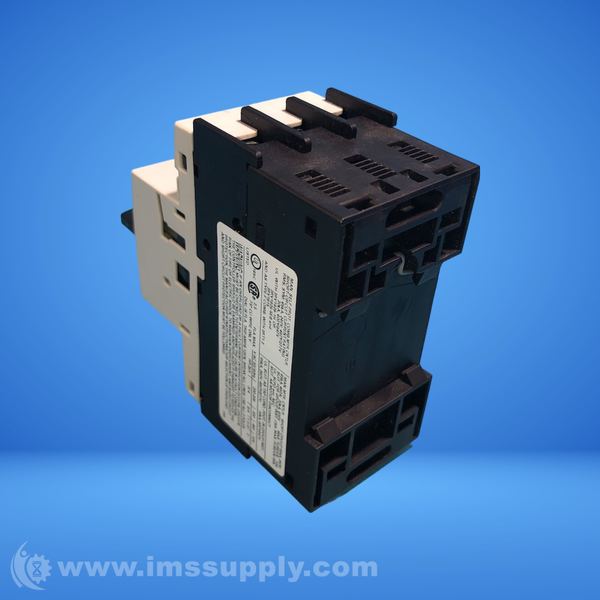

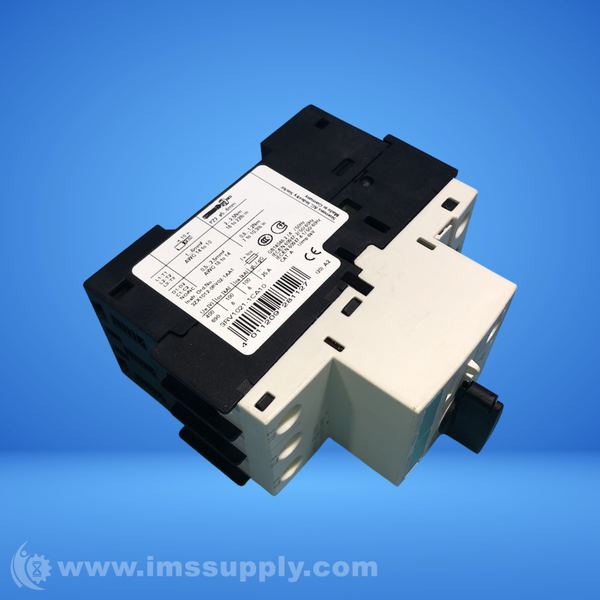

Siemens 3RV1021-1CA10 Motor Protection Circuit Breaker
Siemens 3RV1021-1CA10 is a motor protection circuit breaker with thermal overload release setting range of 1.8-2.5 A and short-circuit release at 33 A. It features a rotary handle actuator, screw connections, and is designed for DIN rail mounting. The device is rated for up to 690 VAC/VDC and has a 100 kA interrupt rating.
Specifications
- Series: 3RV1
- Frame Size: S0
- Number Of Poles: 3
- Voltage Rating: 690 VAC/VDC
- Amperage Rating: 2.5 A
- Trip Type: Thermal/Magnetic
- Interrupt Rating: 100 kA
- Mounting Type: DIN Rail
- Connection Type: Screw
- Actuator Type: Rotary Handle
- Setting Range for Thermal Overload Releases: 1.8 - 2.5 A
- Short-circuit Release Current: 33 A
- Dimensions: 97 mm H x 45 mm W x 96 mm D
- Weight: 0.787 lb
- Country of Origin: Germany
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 12 In Stock
Ships today if ordered in the next 13 hours and 51 minutes.
Used (Special):
Has two Siemens 3RV1928-1H attached to the main part.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 51 minutes.
Used (Special):
Is attached to Siemens 3RV1928-1H.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 51 minutes.
Used (Special):
Two additional Siemens part number 3RV1928-1H attached to unit.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 51 minutes.
