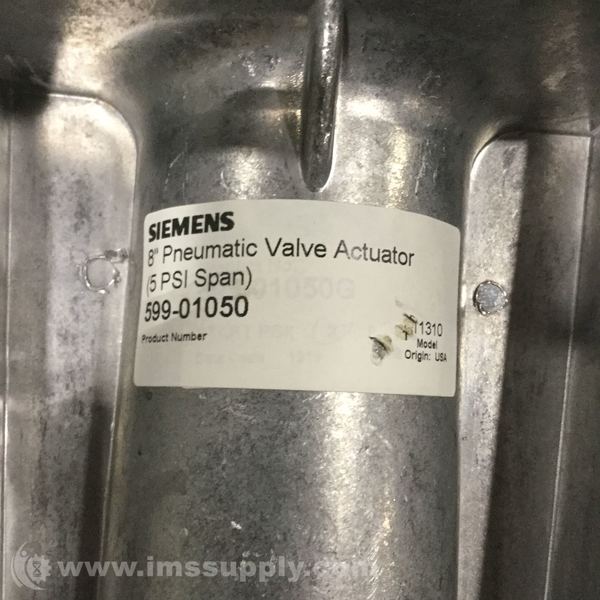

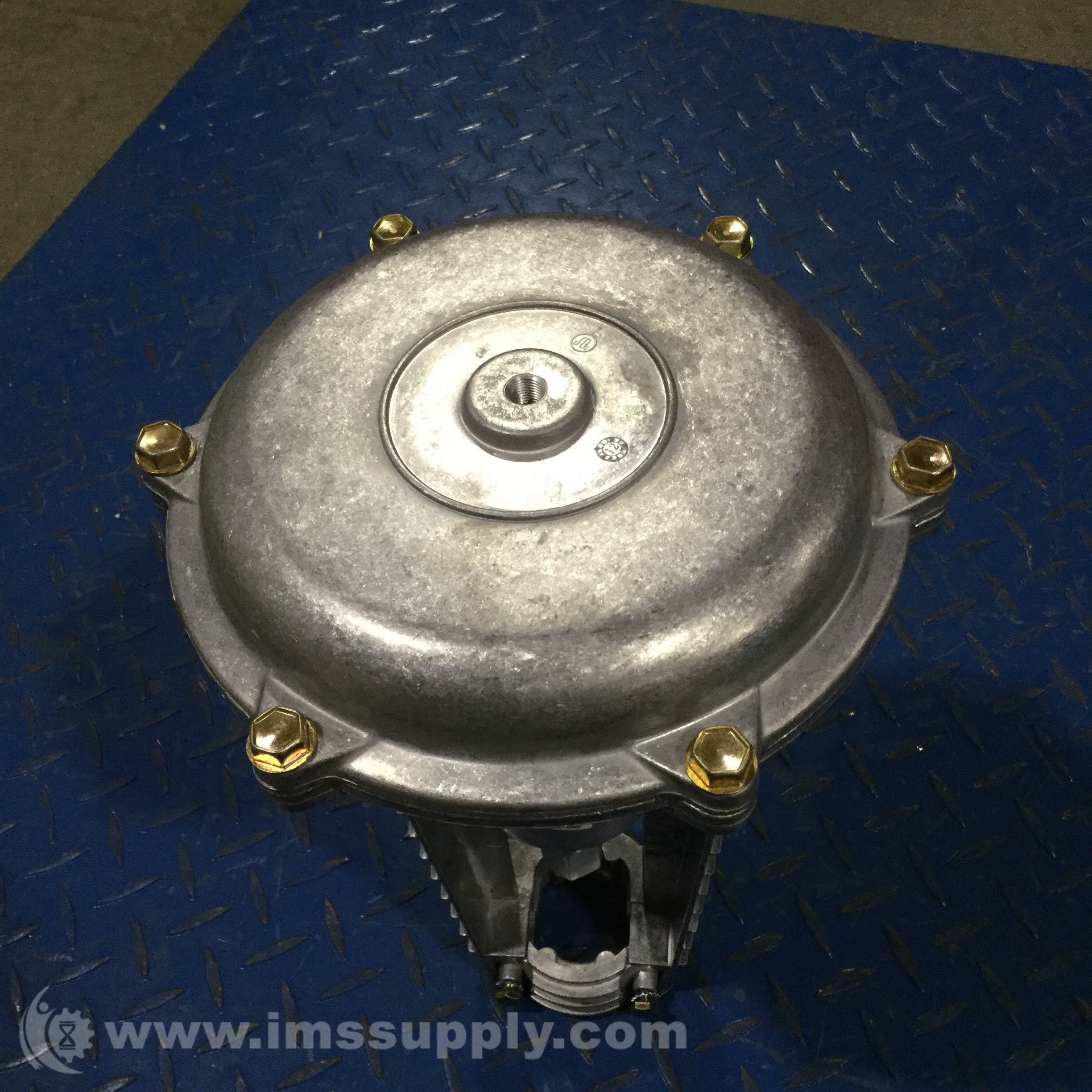

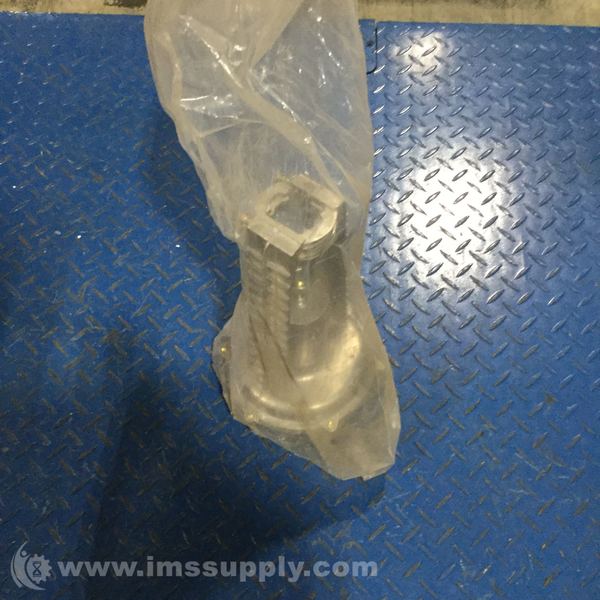

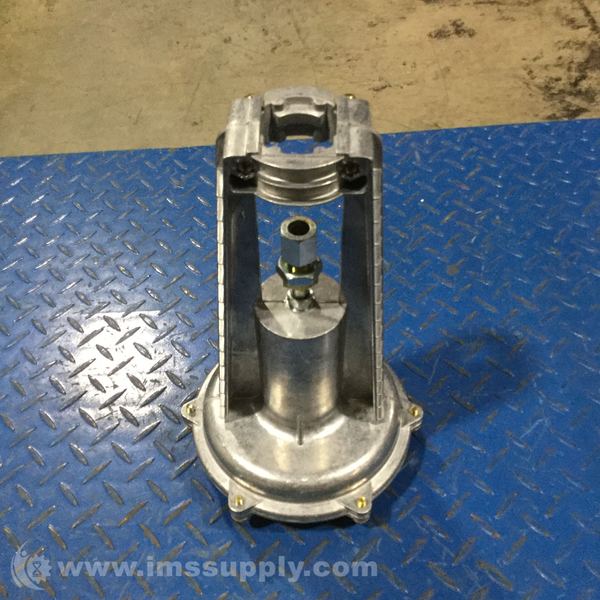

SIEMENS 599-01050 8 INCH PNEUMATIC VALVE ACTUATOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: 599-01050
IMS Product Code: 1836715
Packaging: Sold Individually
Description:
Siemens 599-01050 8 Inch Pneumatic Valve Actuator
Pneumatic actuator with 8 inch diameter and 3/4 inch stroke. Spring return type with 5 psi pressure range.
Specifications
- Stroke: 3/4 in
- Spring Range: 5 psi
- Normal Duty Service: 25 to 300 F (-4 to 149 C)
- Max Diaphragm Pressure: 35 psi (241 kPa)
- Air Connection: 1/8 in. NPT
- Connection Size: 1/8 in
- Connection: Air
- Pressure Range: 5 PSIG
- Operating Temperature - Minimum: 25 F
- Operating Temperature - Maximum: 300 F
- Product Type: 2-Way Normal Duty
- Style: Spring Return
- Pressure: 5PSI
- Size: 8IN
- Material: Buna-N
- Stroke Length: 3/4IN
- Diameter: 8 Inch
- Weight: 8.63
- Product Dimensions: 16.55" x 8.9" x 8.45"
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 1 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 1 minutes.
