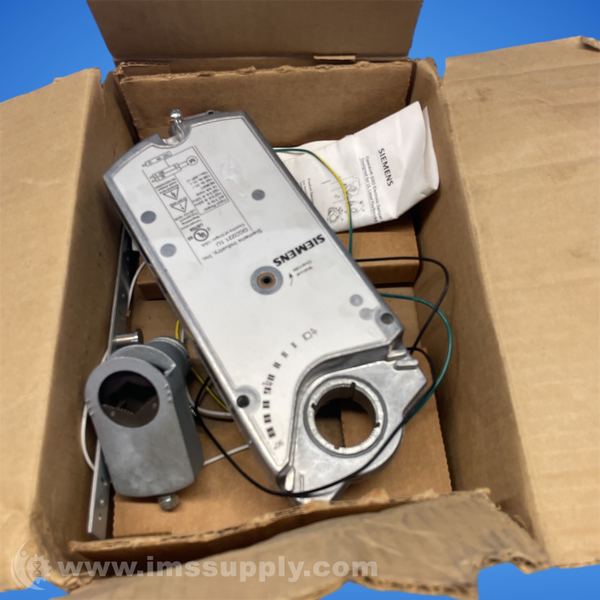

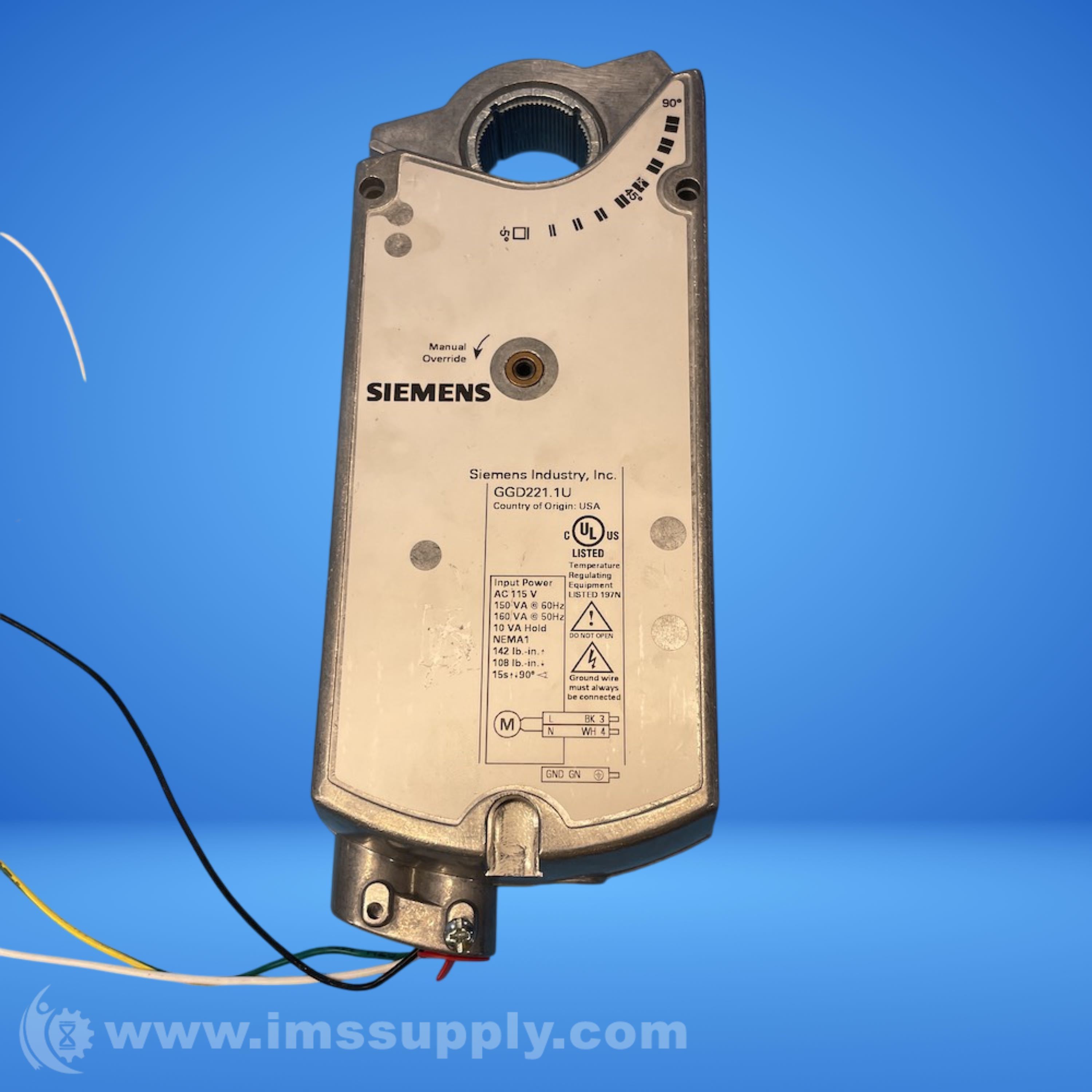

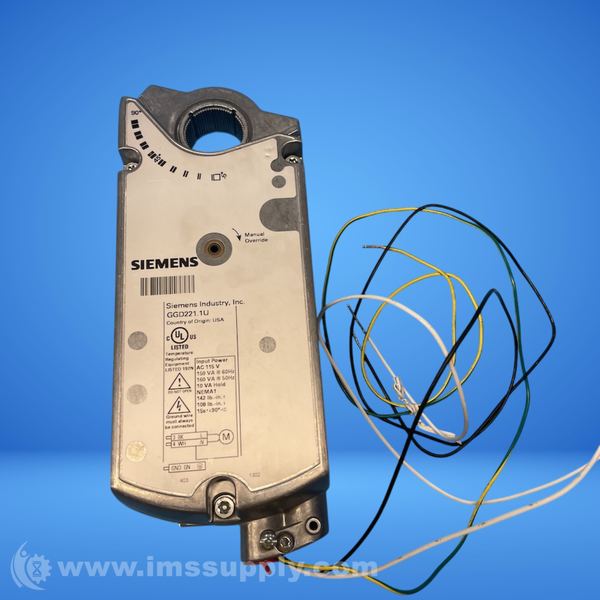

SIEMENS GGD221.1U ELECTRIC DAMPER ACTUATOR
Quick Overview
Manufactured By: SIEMENS
Manufacturer Part Number: GGD221.1U
IMS Product Code: 2128342
Packaging: Sold Individually
Description:
Siemens GGD221.1U Electric Damper Actuator
Rotary, spring return, 142 lb-in (16 Nm), 115 Vac, 2-position control, 15 sec run time, Fire/Smoke
Specifications
- Power Consumption: GGD Running: 150 VA; Holding: 10 VA
- Running Torque: GGD: 142 lb-in (16 Nm)
- Minimum Stall Torque: GGD: 350 lb-in (39 Nm)
- Runtime for 90 degrees Operating with Motor at 60 Hz: 15 seconds nominal
- Closing (On Power Loss) with Spring Return: 15 seconds maximum
- Manual Override: Yes
- Life Expectancy: 30,000 full cycles
- Auxiliary Switch: 2-SPST, 24VDC, 24VAC to 250VAC, 6A resistive, 2 FLA/LRA (optional)
- Shaft Diameter: GGD: 3/8" to 1" (8 to 2.56 cm)
- Minimum Shaft Length: 0.75" (2.0 cm)
- Enclosure Rating: NEMA 1
- Housing Material: Die cast aluminum alloy
- Operating Temperature: 0 degrees to 130 degrees F (-18 degrees to 55 degrees C); One time 350 degrees F (177 degrees C) for 1/2 hour (per UL555S)
- Storage Temperature: -25 degrees to 158 degrees F (-32 degrees to 70 degrees C)
- Humidity: Maximum 95% RH non-condensing
- Pre-Cabled Connection: 18 AWG
- Weight: GGD: 4.8 lbs (2.2 kg)
- Agency Certification: listed to UL873, cUL certified to Canadian standard C22.2 No. 24-93
