SIMPSON ELECTRIC COMPANY, INC. 01299 DONUT CURRENT TRANSFORMER
Quick Overview
Manufactured By: SIMPSON ELECTRIC COMPANY, INC.
Manufacturer Part Number: 01299
IMS Product Code: 2152489
Packaging: Sold Individually
Description:

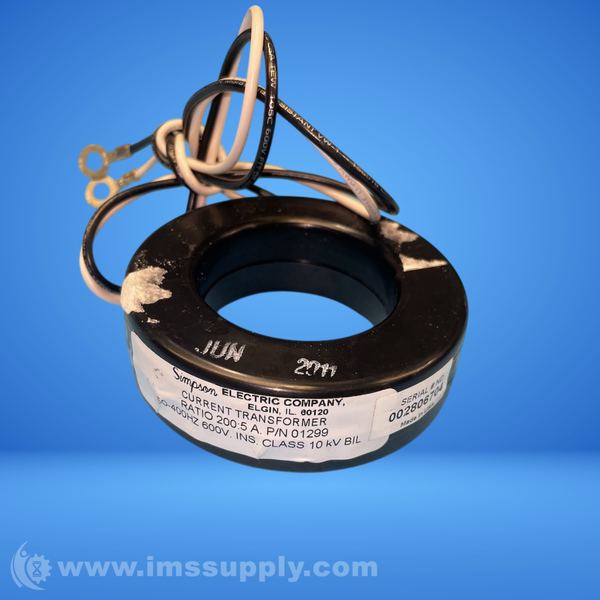

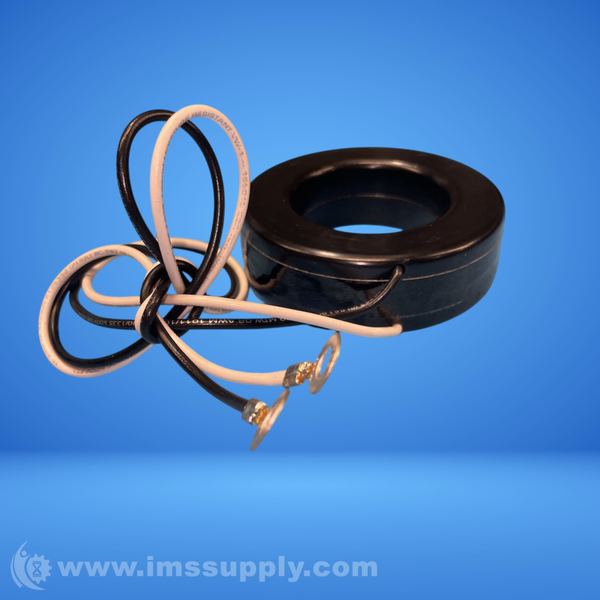

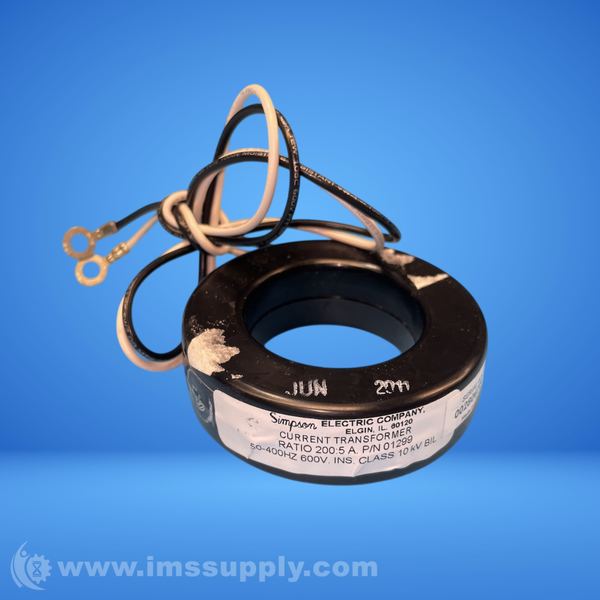

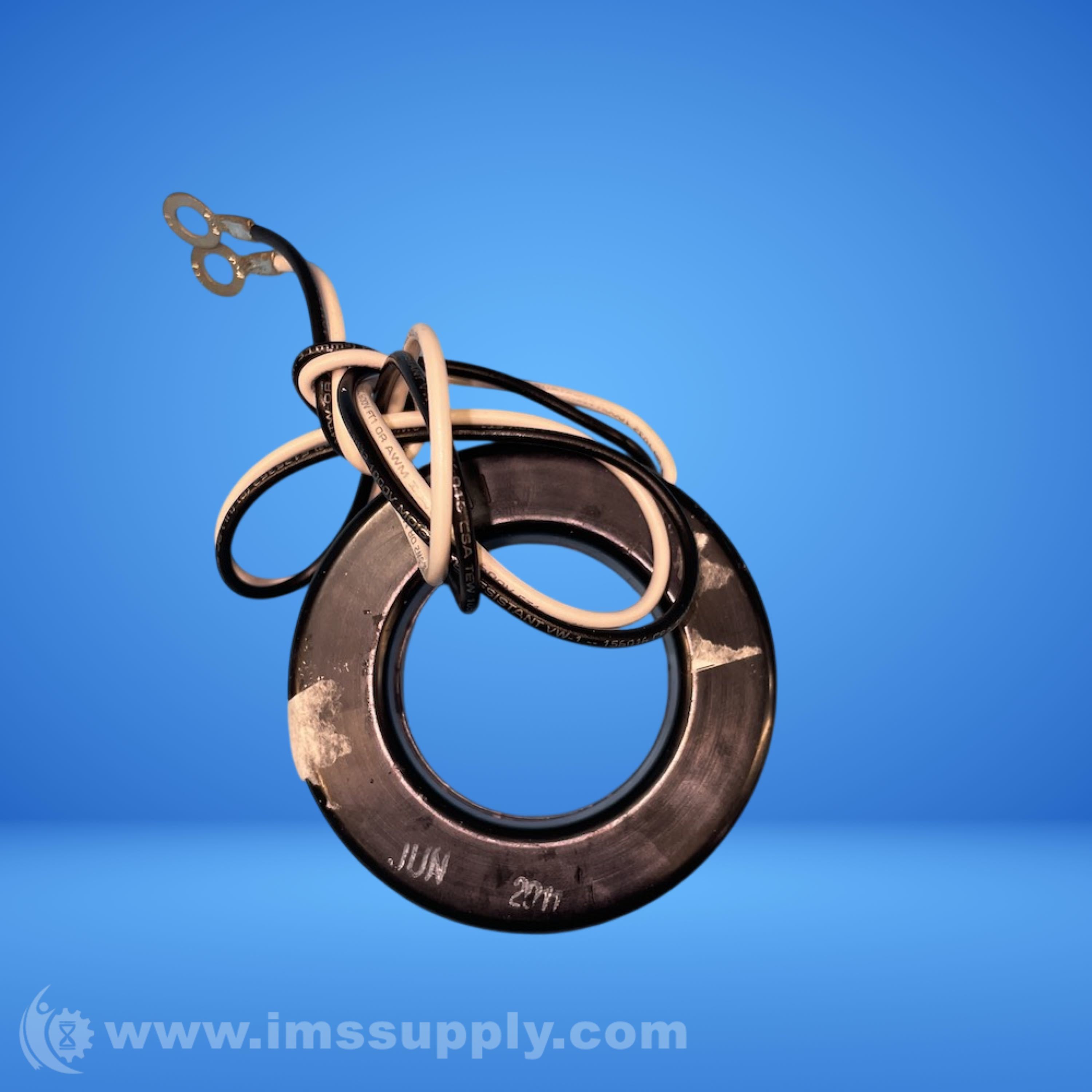

Simpson Electric Company, Inc. 01299 Donut Current Transformer
The 01299 is a 40:1 Donut Current Transformer with 200A primary and 5A secondary. It is moulded from impact and abrasive resistance black nylon for rugged construction.
Specifications
- CT Construction: Donut
- Current Ratio: 200:5
- Accuracy Class: Class 2
- Power Rating: 2VA
- Window Diameter: 52.3mm
- Transformer Mounting: Chassis Mount
- Transformer Terminals: Lug
- Primary Current: 200A
- Secondary Current Nom: 5A
- Turns Ratio: 40:1
- Frequency Min: 50Hz
- Frequency Max: 400Hz
- Frequency Range: 50Hz to 400Hz
- Color: Black
- Weight: 1.00 lbs
- ROHS Compliant: No
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, March 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
