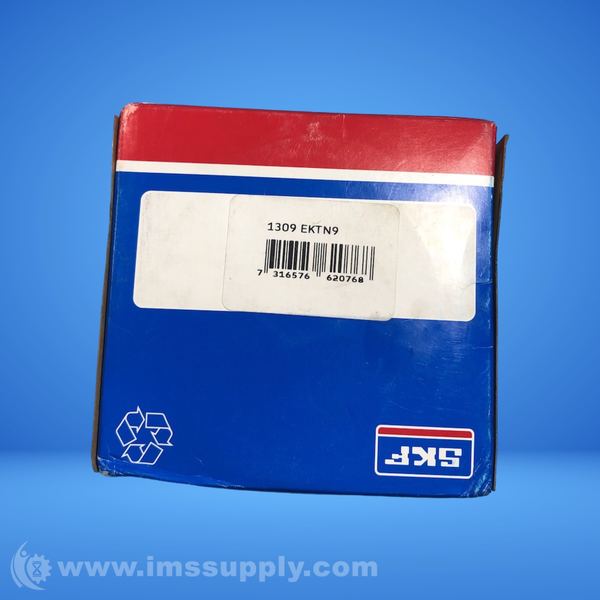

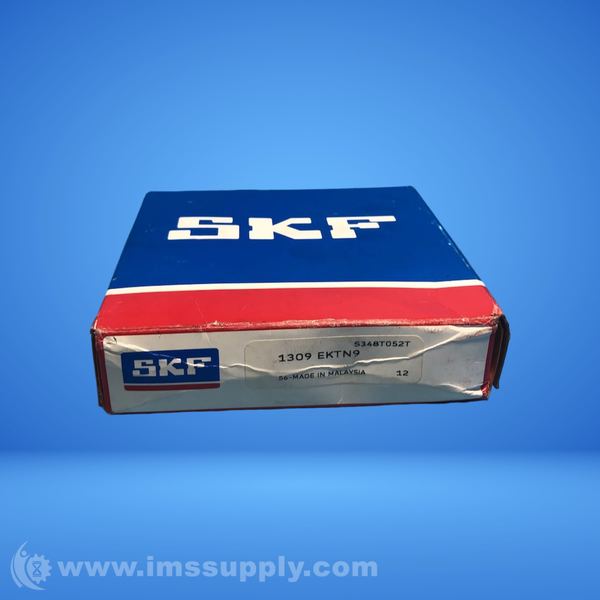

SKF 1309 EKTN9 SELF-ALIGNING BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 1309 EKTN9
IMS Product Code: 1809456
Packaging: Sold Individually
Description:
SKF 1309 EKTN9 Self-Aligning Ball Bearing
Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates ease of mounting via adapter sleeves or withdrawal sleeves.
Specifications
- Bore Type: Tapered 1:12
- Closure: Open
- Bore Diameter: 45 mm
- Outside Diameter: 100 mm
- Outer Ring Width: 25 mm
- Ring Material: Alloy Steel
- Ball Material: Alloy Steel
- Cage Material: Thermoplastic/Polyamide
- Number of Rows: 2
- Fillet Radius: 1 mm
- ABEC Rating: 1
- Maximum Misalignment Angle: 3 degrees
- Maximum Speed: 8500 RPM
- Dynamic Radial Load Capacity: 39 kN
- Static Radial Load Capacity: 13.4 kN
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
