SKF 3213 A/C3 DOUBLE ROW ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 3213 A/C3
IMS Product Code: 2145147
Packaging: Sold Individually
Description:

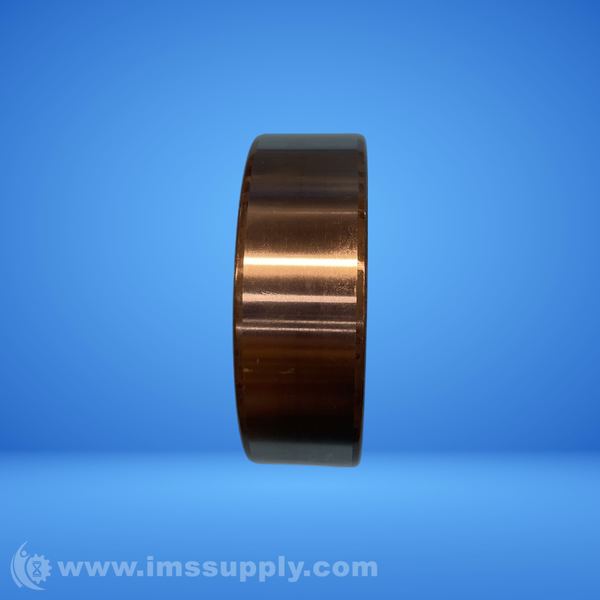

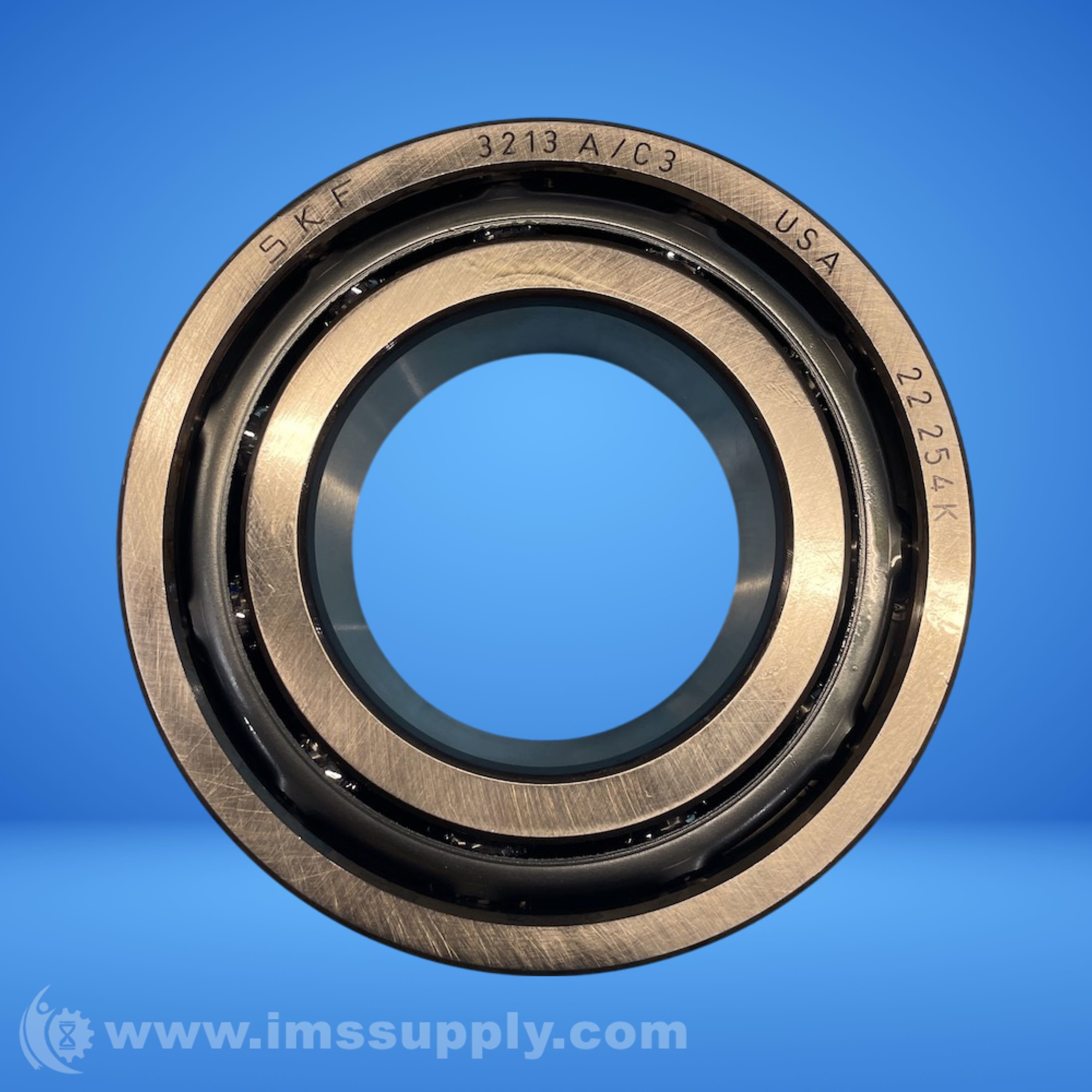

SKF 3213 A/C3 Double Row Angular Contact Bearing
Double row angular contact ball bearing with 65 mm bore diameter, 120 mm outside diameter, and 38.1 mm width. Made of steel with C3 internal clearance and 30 degree contact angle.
Specifications
- Bore Type: Straight
- Bore Diameter: 65 mm
- Outside Diameter: 120 mm
- Overall Width: 38.1 mm
- Row Type: Double-Row Non-Fill Slot
- Closure Type: Open
- Contact Angle: 30 degrees
- Bearing Material: Steel
- Internal Clearance: C3
- Radial Dynamic Load Capacity: 80.6 kN
- Radial Static Load Capacity: 73.5 kN
- Cage Material: Metal
- Max Rpm: 4800 rpm
- Precision Rating: Not Rated
- Series: 32
- Weight: 1.732 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 18 minutes.
