SKF 6004-2RSH/C3GJN DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 6004-2RSH/C3GJN
IMS Product Code: 1868287
Packaging: Sold Individually
Description:

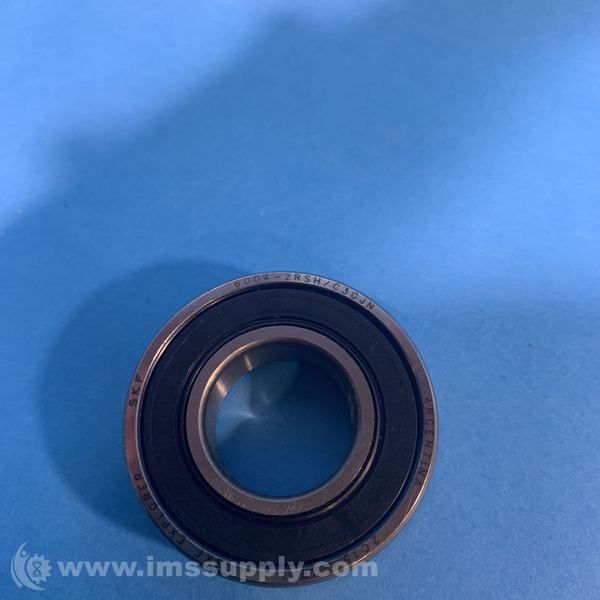

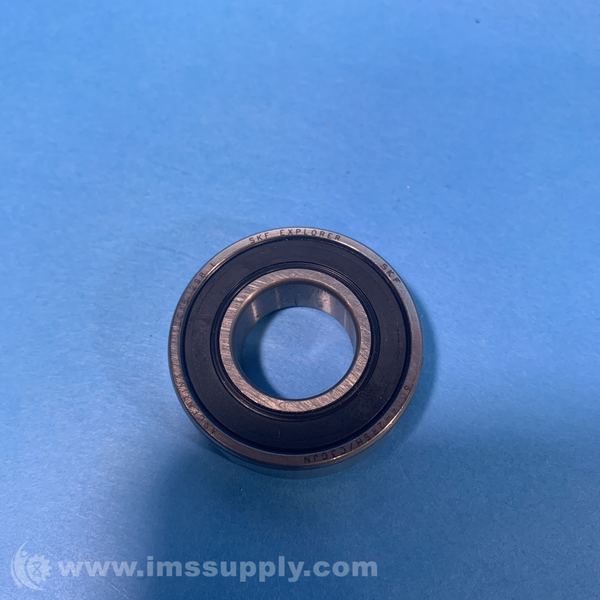

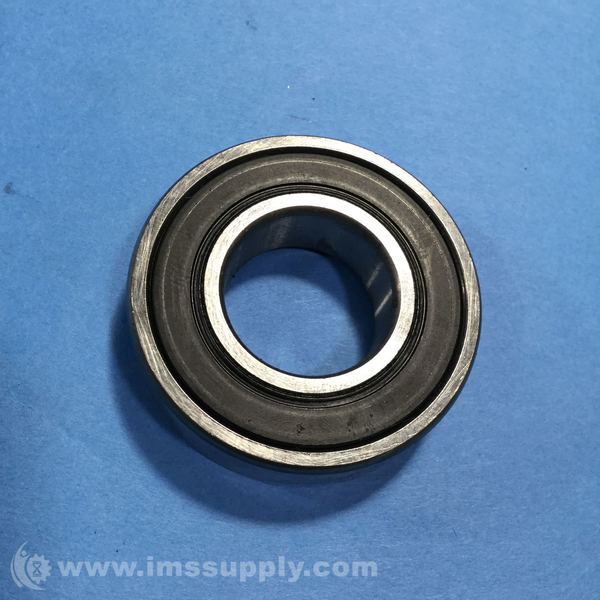

SKF 6004-2RSH/C3GJN Deep Groove Ball Bearing
Deep groove ball bearing with rubber seals on both sides, C3 radial internal clearance, and grease fill suitable for high-speed applications. Straight bore, 20 mm ID, 42 mm OD, 12 mm width.
Specifications
- Bearing Type: Deep Groove Ball Bearing
- Seal Type: Rubber Seals (2RSH)
- Radial Internal Clearance: C3
- Lubrication: Grease Fill
- Bore Diameter: 20 mm
- Fillet Radius: 0.6 mm
- Outside Diameter: 42 mm
- Overall Width: 12 mm
- Precision Rating: ABEC 3
- Weight: 0.068 kg
- Bore Type: Straight/Cylindrical
- Cage Material: Steel/Sheet metal/Stamped steel
- Closure/Seal Type: Double Sealed/Rubber seal on both sides/Contact seal on both sides
- Material/Bearing Material/Element Material: Bearing steel/Steel
- Max Rpm/Speed rating: 11000 rpm/r/min
- Operating Temperature Range: -40 to +210 degrees F (-30 to +150 �C)
- Radial Dynamic Load Capacity: 9.95 kN/2240 lbf
- Radial Static Load Capacity: 5 kN/1120 lbf
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
