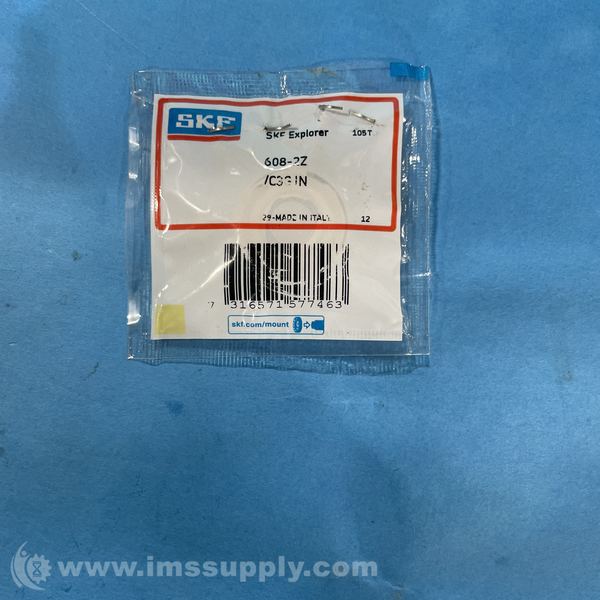

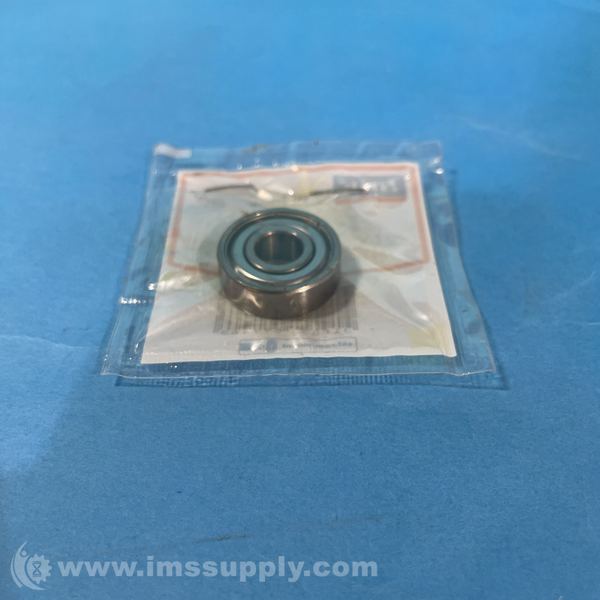

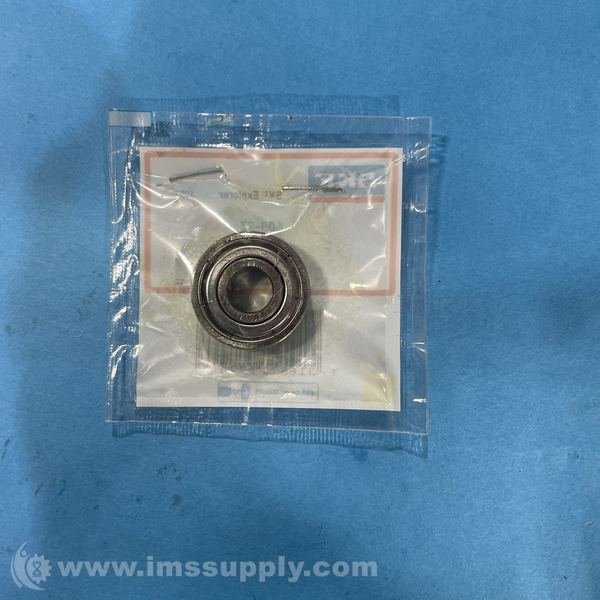

SKF 608-2Z DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 608-2Z
IMS Product Code: 2136024
Packaging: Sold Individually
Description:
SKF 608-2Z Deep Groove Ball Bearing
Deep groove ball bearing, single row, sealed on both sides
Specifications
- Bearing Type: Deep Groove Ball Bearing
- Seal Type: 2Z (Non-Contact Seals on Both Sides)
- Inner Diameter: 8 mm
- Outer Diameter: 22 mm
- Width: 7 mm
- Dynamic Load Rating: 3.45 kN
- Static Load Rating: 1.37 kN
- Limiting Speed (Grease): 38,000 r/min
- Limiting Speed (Oil): 45,000 r/min
- Bore Type: Straight
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Internal Clearance: CN
- Cage Type: Sheet metal
- Bearing Material: Bearing steel
- Cage Material: Bearing steel
- Seal Material: Tinplate
- Precision Rating: ABEC 3
- Finish Coating: Uncoated
- Max Rpm: 75,000 rpm
- Series: 608
- Radial Dynamic Load Capacity: 780 lbf
- Radial Static Load Capacity: 310 lbf
- Weight: 0.03 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 13 minutes.
