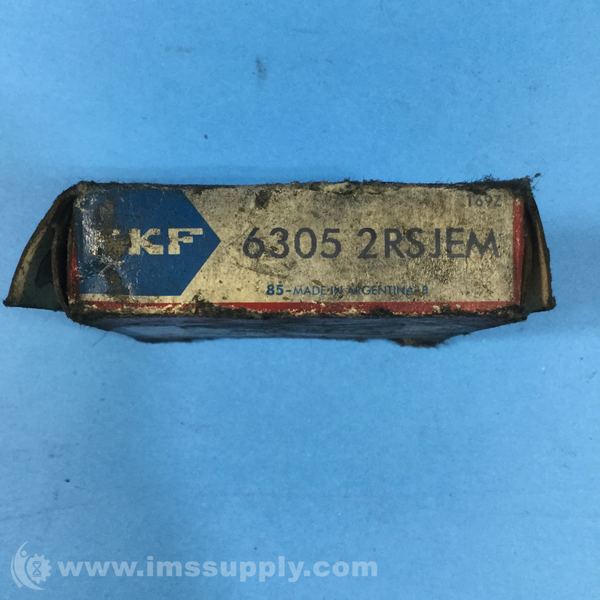

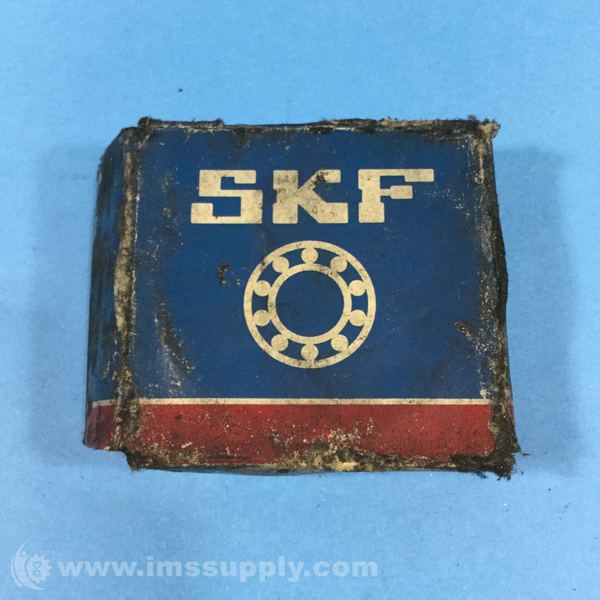

SKF 6305 2RSJEM DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 6305 2RSJEM
IMS Product Code: 1838627
Packaging: Sold Individually
Description:
SKF 6305 2RSJEM Deep Groove Ball Bearing
Radial/Deep Groove Ball Bearing - Straight Bore, 25 mm ID, 62 mm OD, 17 mm Width, Double Sealed, Without Snap Ring
Specifications
- Bore Diameter: 25 mm
- Contact Angle: Not Applicable
- Fillet Radius: 1 mm
- Inner Ring Width: 17 mm
- Outside Diameter: 62 mm
- Overall Width: 17 mm
- Precision Rating: ABEC 3
- Weight: 0.52 lbs
- Bearing Material: Bearing steel
- Bore Type: Straight
- Cage Material: Bearing steel
- Cage Type: Sheet metal
- Closure Type: Double Sealed
- Element Material: Bearing steel
- Finish Coating: Uncoated
- Internal Clearance: C3
- Max Rpm: 7500 rpm
- Operating Temperature Range: -40 to +210 degrees F
- Product Type: Radial & Deep Groove Ball Bearings
- Radial Dynamic Load Capacity: 5261 lbf
- Radial Static Load Capacity: 2608 lbf
- Seal Material: Nitrile Rubber
- Series: 63
- Snap Ring Included: Without Snap Ring
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
