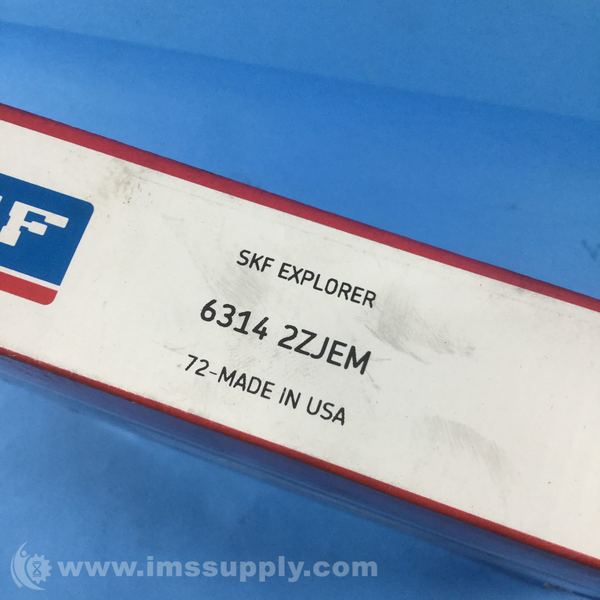

SKF 6314 2ZJEM DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 6314 2ZJEM
IMS Product Code: 1838747
Packaging: Sold Individually
Description:
SKF 6314 2ZJEM Deep Groove Ball Bearing
Deep Groove Ball Bearing - Straight Bore, 70 mm ID, 150 mm OD, 35 mm Width, Double Shielded, Without Snap Ring
Specifications
- Bore Type: Straight
- Bore Diameter: 70 mm
- Outside Diameter: 150 mm
- Overall Width: 35 mm
- Closure Type: Double Shielded
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Cage Type: Sheet metal
- Precision Rating: ABEC 1
- Finish Coating: Uncoated
- Bearing Material: Bearing steel
- Cage Material: Bearing steel
- Element Material: Bearing steel
- Fillet Radius: 2 mm
- Max Rpm: 5000 rpm
- Series: 63
- Radial Dynamic Load Capacity: 24954 lbf
- Radial Static Load Capacity: 15287 lbf
- Weight: 5.25 lbs
- Seal Material: Tinplate
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 17 minutes.
