SKF 6314 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: 6314
IMS Product Code: 1210143
Packaging: Sold Individually
Description:

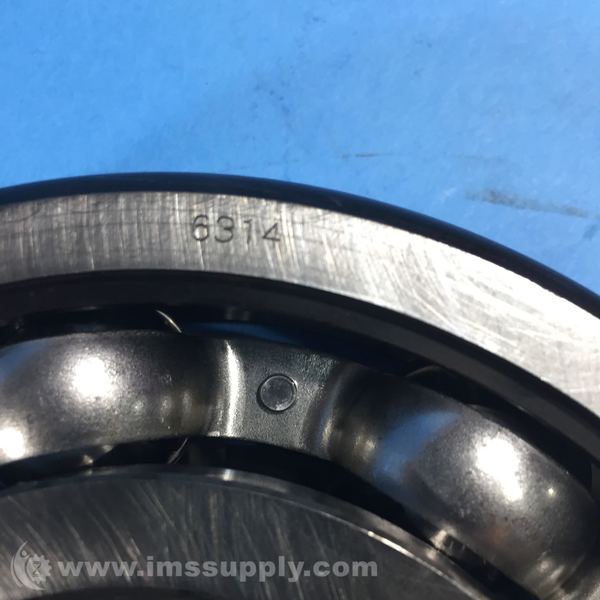

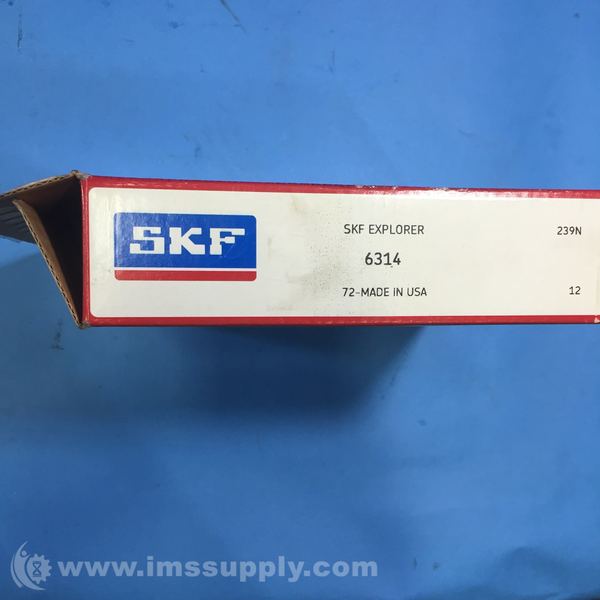

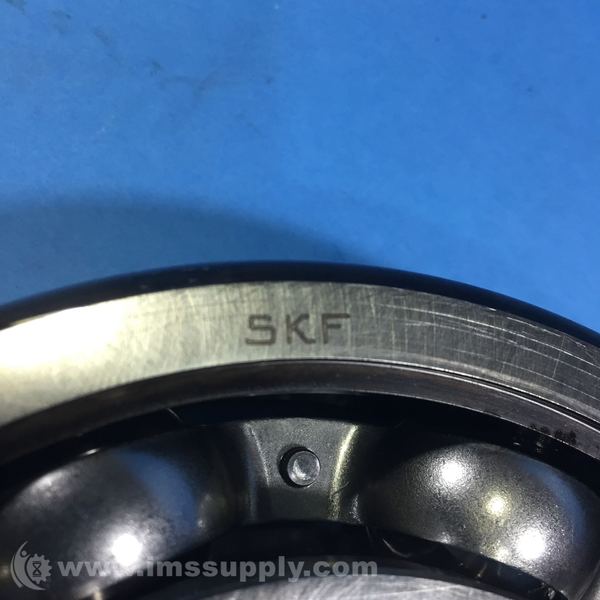

SKF 6314 Deep Groove Ball Bearing
Metric deep groove ball bearing with 70mm ID, 150mm OD, and 35mm width. Made of alloy steel with a steel cage and open closure.
Specifications
- Bore Diameter: 70mm
- Outside Diameter: 150mm
- Width: 35mm
- Dynamic Load Rating: 111kN
- Static Load Rating: 68kN
- Bore Diameter Tolerance: +0/-0.007 mm
- Outside Diameter Tolerance: +0/-11 micron
- Fillet Radius: 2 mm
- Ring Material: Alloy Steel
- Ring Material Grade: 100Cr6
- Ball Material: Alloy Steel
- Cage Material: Steel
- Maximum Temperature: 212 degrees F
- Minimum Temperature: -40 degrees F
- Number of Rows: One
- ABEC Rating: 1
- Maximum Speed: 6,300 RPM
