SKF FYT-2-TF BALL BEARING UNIT
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: FYT-2-TF
IMS Product Code: 2134977
Packaging: Sold Individually
Description:

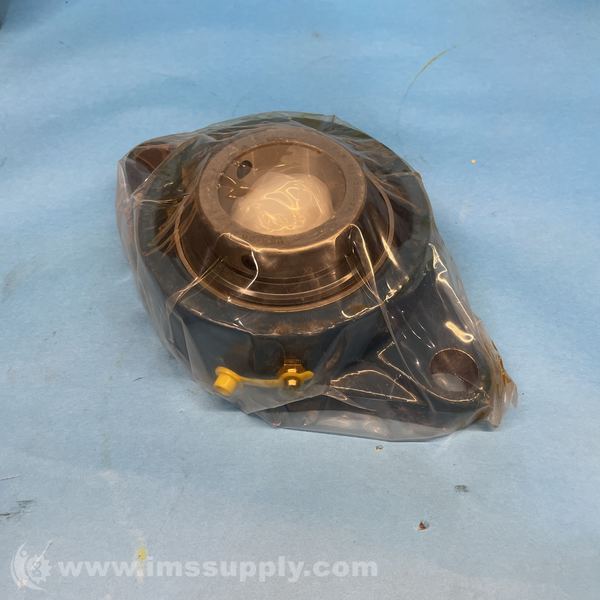

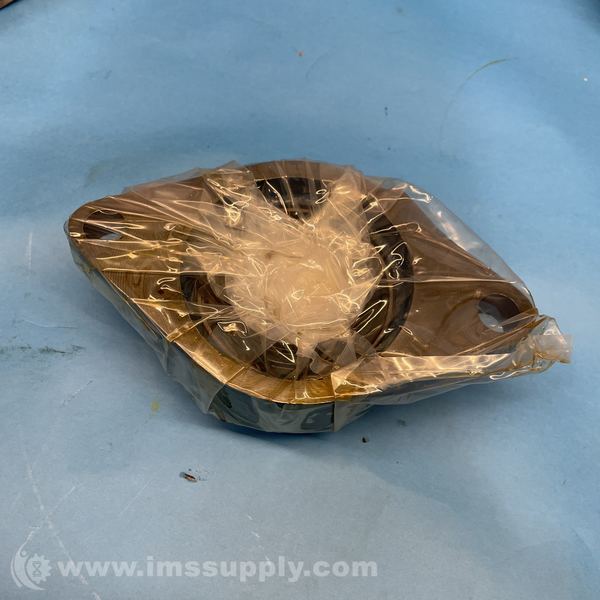

SKF FYT-2-TF Ball Bearing Unit
2-Bolt Flange Block Ball Bearing Unit with Cast Iron Housing and Set Screw Locking Style
Specifications
- Bore / Inner Diameter: 2 inches (50.8 mm)
- Number of Mounting Holes: 2
- Bolt Center to Center: 7.25 inches (184.15 mm)
- Bearing Locking Style: Set Screw
- Rolling Element: Ball Bearing
- Housing Material: Cast Iron
- Housing Style: 2 Bolt Flange Block
- Expansion / Non-Expansion: Non-expansion
- Length Across Bore: 2.188 inches (55.575 mm)
- Inner Diameter: 2 inches (50.8 mm)
- Outer Diameter: 8.5 inches (215.9 mm)
- Width: 64.4 mm
- Dimension Type: Inch
- Lubricant: Grease
- Bearing Bore Type: Cylindrical
- Bearing Sealing: Seal and flinger on both sides
- Fastening Bolt Hole Type: Plain holes
- Relubrication Nipple: With
- Unit Sealing: Without
- Weight: 7.375 lb
