SKF SNL 528 SPLIT PLUMMER BLOCK HOUSING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: SNL 528
IMS Product Code: 1793531
Packaging: Sold Individually
Description:

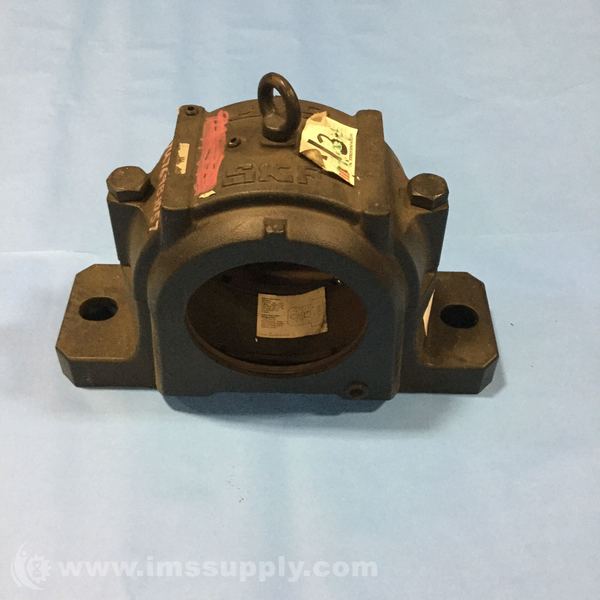

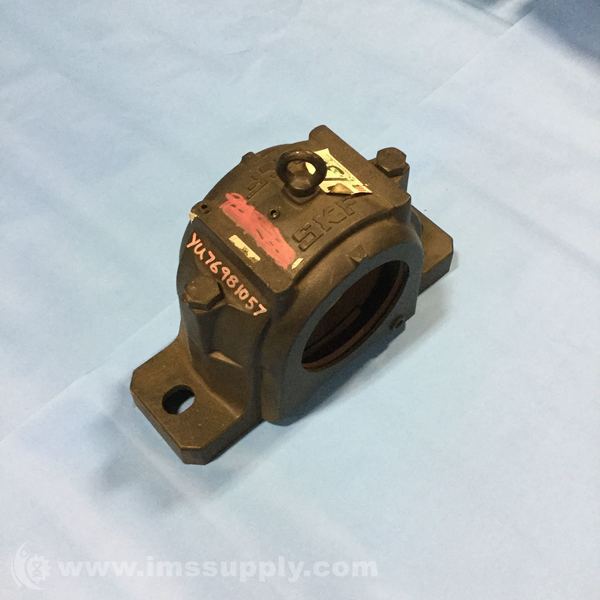

SKF SNL 528 Split Plummer Block Housing
A split plummer block housing designed to accommodate various bearing sizes and types, providing a robust and reliable mounting solution for industrial applications.
Specifications
- Housing Material: Cast Iron
- Housing Construction: Split
- Compatible Bore Diameter: 125 mm, 140 mm
- Base To Bore Centerline: 150 mm
- Overall Length: 19.6875 in
- Overall Height: 11.9375 in
- Overall Width: 8.1250 in
- Compatible Bearing Type: Spherical Roller
- Finish Coating: Uncoated
- Bolt Center To Center Length: 16.5625 in
- Base Width: 5-15/16 in
- Standards Met: ISO/DIS 185 Grade 200
- Series: SNL
- Mounting Type: Two-Bolt Base
- Weight: 23.5 kg
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
