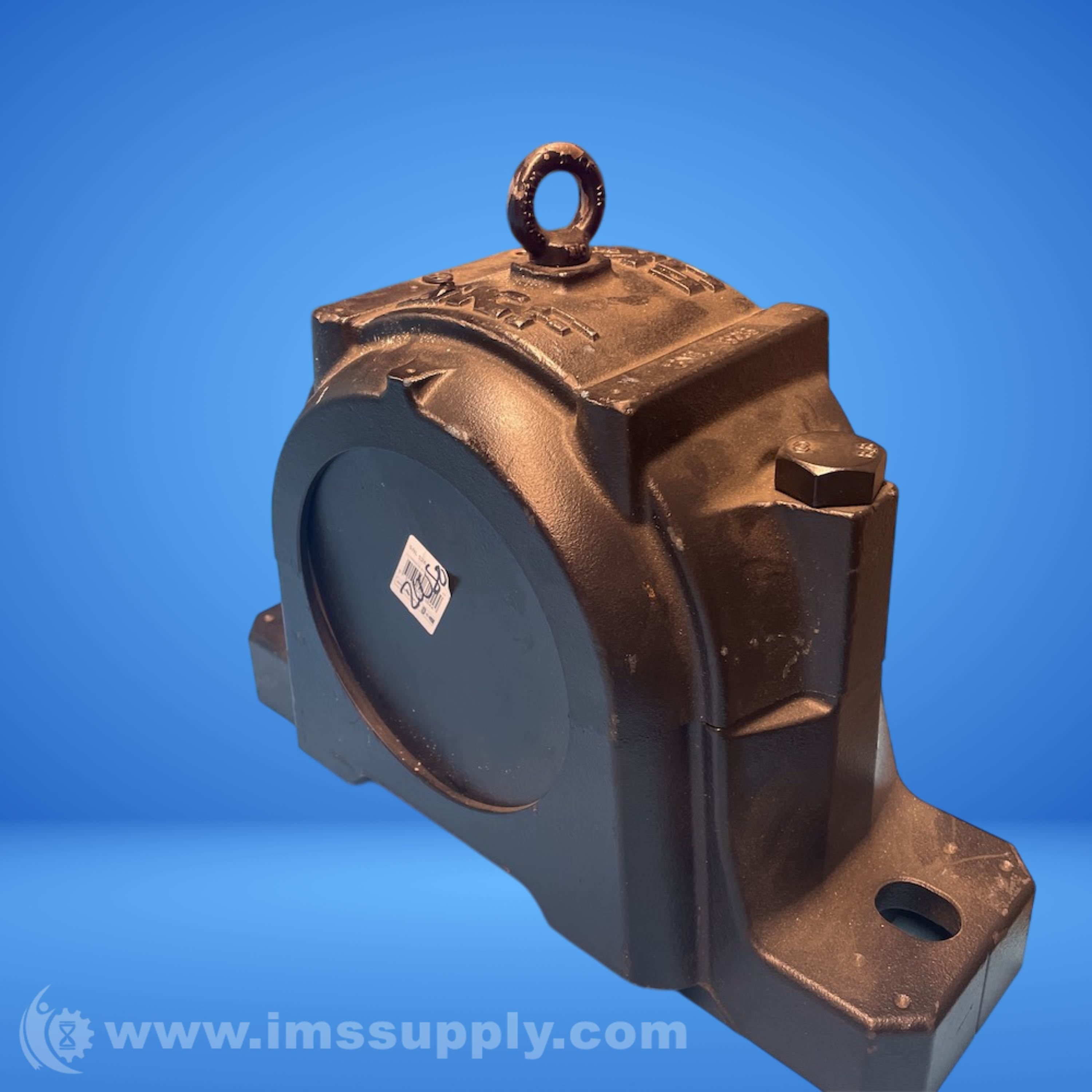

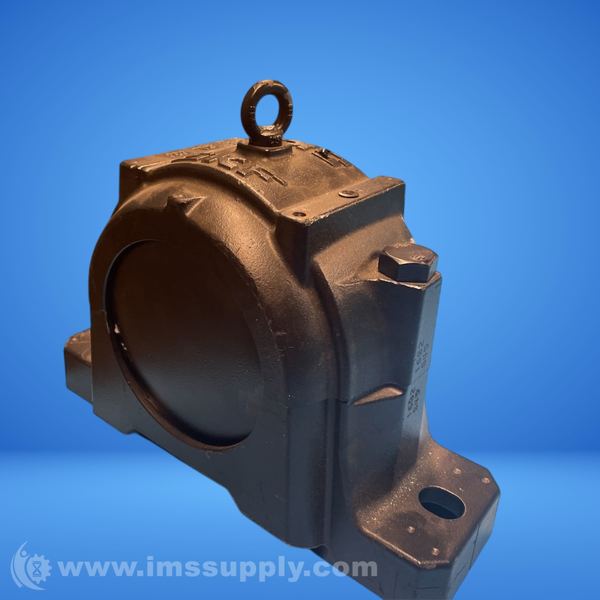

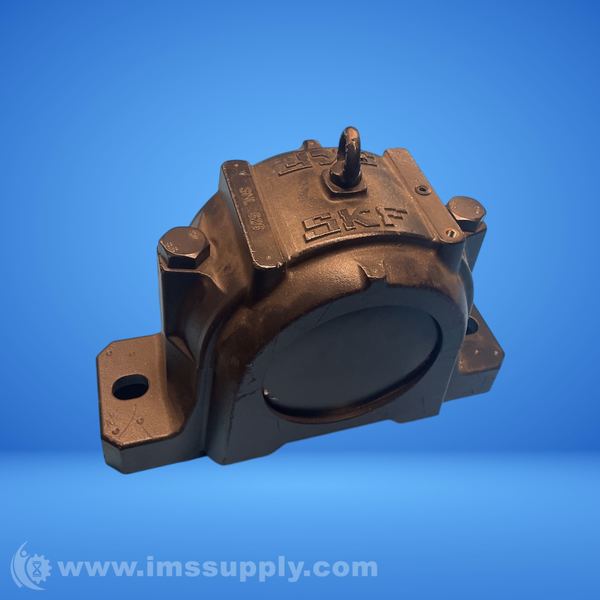

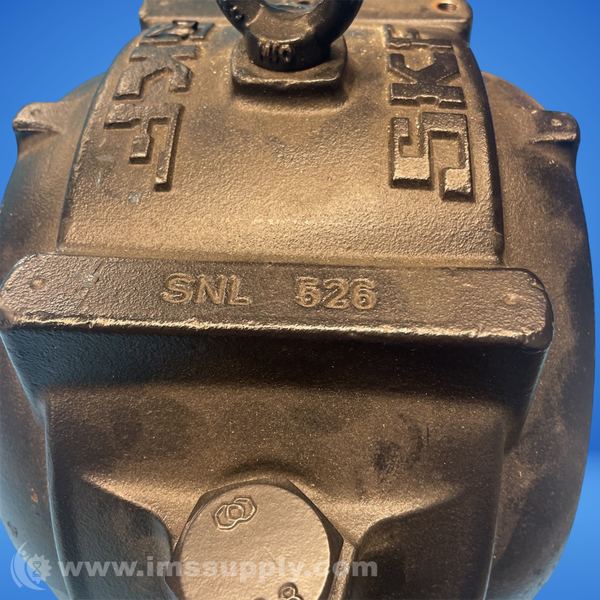

SKF SNL 526 PILLOW BLOCK HOUSING
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: SNL526
IMS Product Code: 2125543
Packaging: Sold Individually
Description:
SKF SNL 526 Pillow Block Housing
Pillow Block Housing - Two-Bolt Base, Split Pillow Block, Cast Iron
Specifications
- Housing Construction: Split
- Compatible Bore Diameter: 4.4375 in, 4.5000 in, 115 mm, 130 mm
- Base To Bore Centerline: 5.9375 in
- Housing Material: Cast Iron
- Overall Length: 17.5625 in
- Overall Height: 11.4375 in
- Overall Width: 7.5000 in
- Compatible Bearing Type: Spherical Roller
- Finish Coating: Uncoated
- Compatible Bearing Series Part Num: 1226, 22226 E, 22226 EK, 23226CC/W33, 23226CCK/W33, C2226 K, C2226
- Bolt Center To Center Length: 15.0000 in
- Base Width: 5-1/8 in
- Standards Met: ISO/DIS 185 Grade 200
- Weight: 76.19 lbs
- Series: SNL
- Product Type: Pillow Block Housings
- Mounting Type: Two-Bolt Base
- Bearing Arrangement: Through shaft
- Bolt Hole Type: Cast holes
- Bearing Configuration: Adapter sleeve
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
