SMC AFF-EL22B COALESCING FILTER ELEMENT
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AFF-EL22B
IMS Product Code: 1813281
Packaging: Sold Individually
Description:

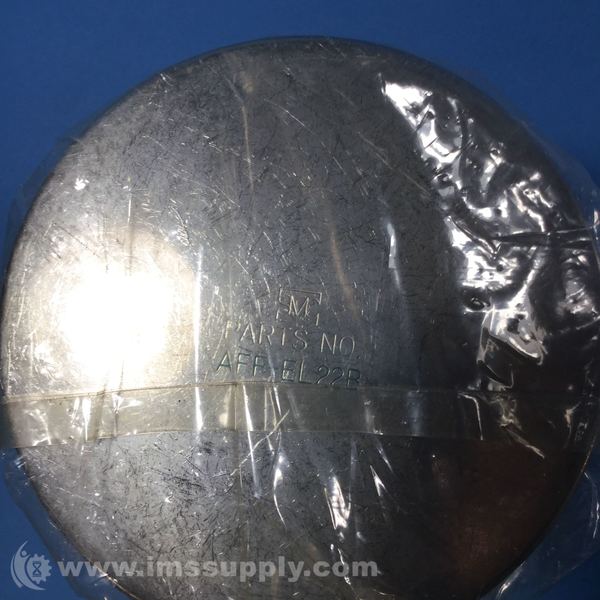

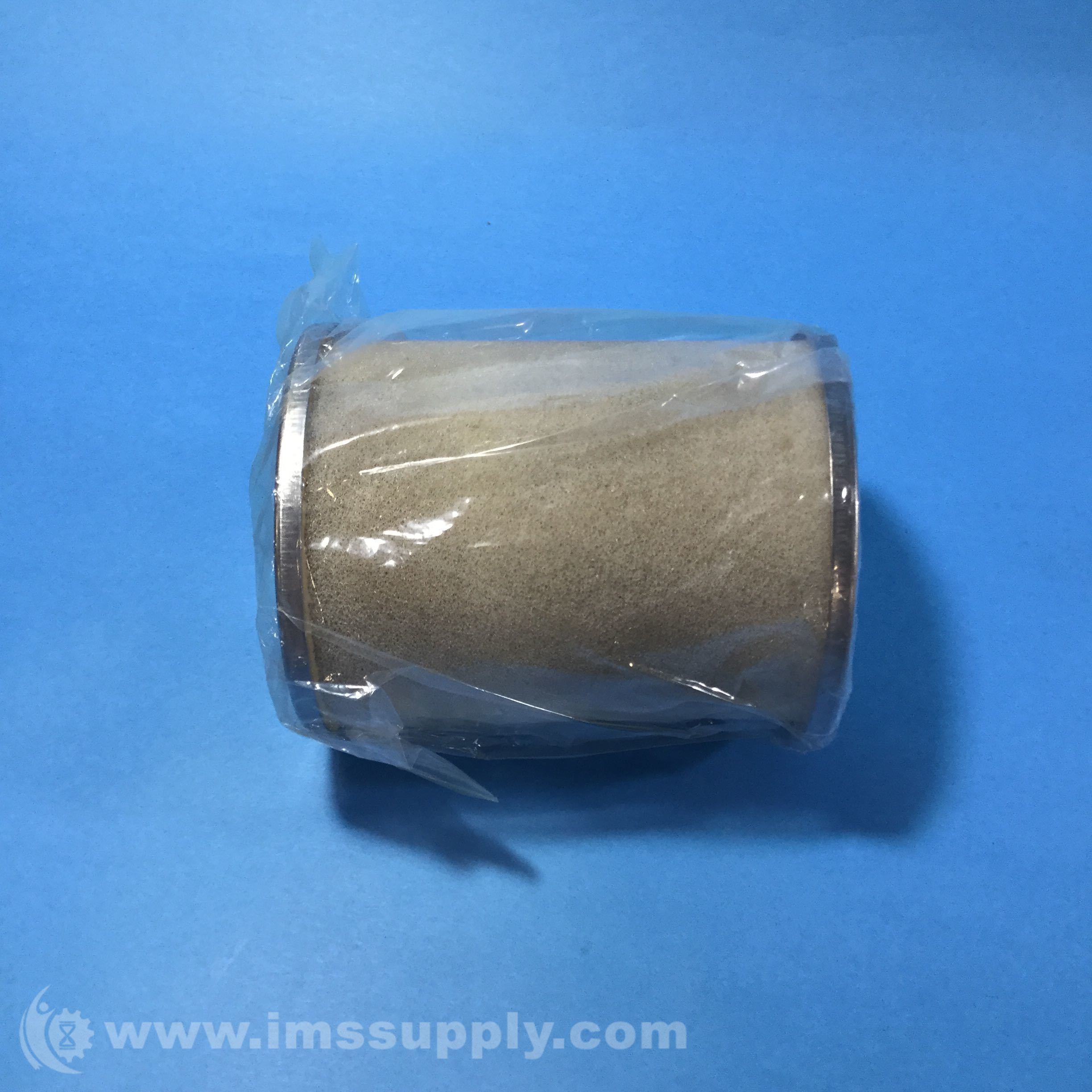

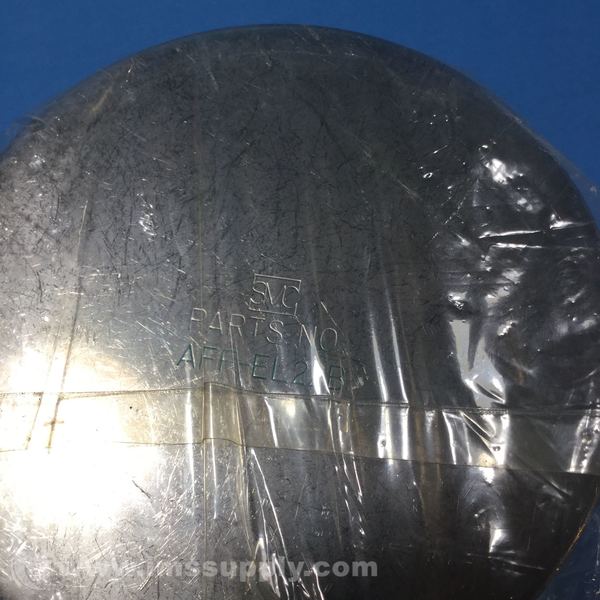

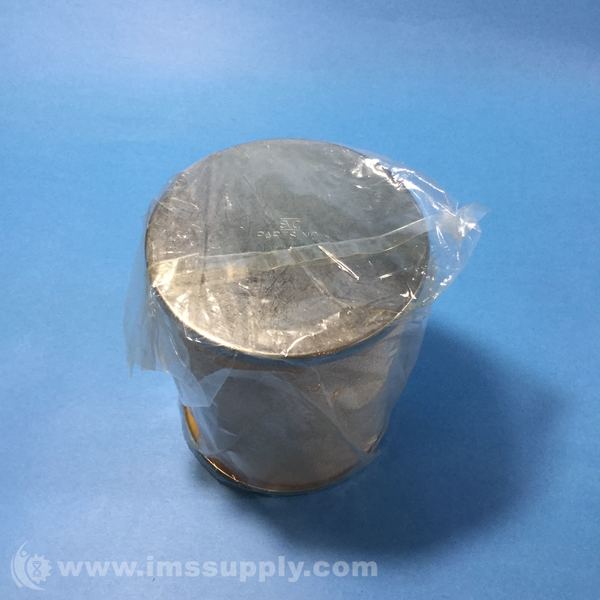

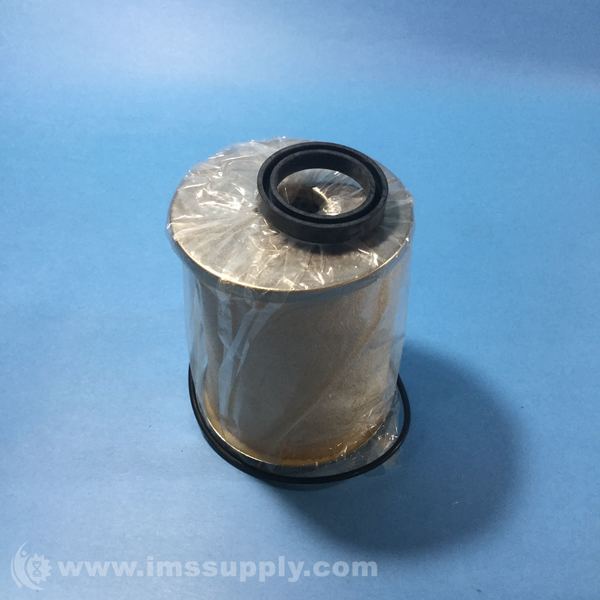

SMC AFF-EL22B Coalescing Filter Element
Coalescing filter element for air purification, 3 um filtration rating, bronze element material, aluminium end caps.
Specifications
- Series: AFF
- Type: Coalescing Filter Element
- Filter Type: Air Filter
- Element Material: Bronze
- End cap material: Aluminium
- Diameter: 95.00 mm
- Height: 118.00 mm
- Flow direction: Inside to outside
- Grade: P
- Solid class: 6
- Particle retention: 3 µm
- Particle retention rate ISO: 95 %
- Differential pressure dry: 10 mbar
- Differential pressure wet: 20 mbar
- Operating temperature Min.: 1.5 degrees C
- Operating temperature Max.: 65 degrees C
- Maximum operating pressure: 145 PSI (1.0 MPa)
- Minimum operating pressure: 7.25 PSI (0.05 MPa)
- Flow capacity l /min (ANR): 300
- Port size: 1/8, 1/4
