SMC AL30-N03-3Z-A MODULAR LUBRICATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AL30-N03-3Z-A
IMS Product Code: 2077378
Packaging: Sold Individually
Description:

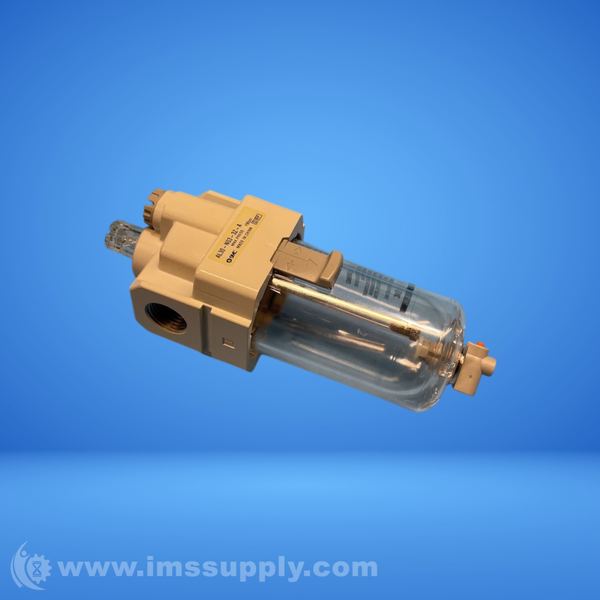

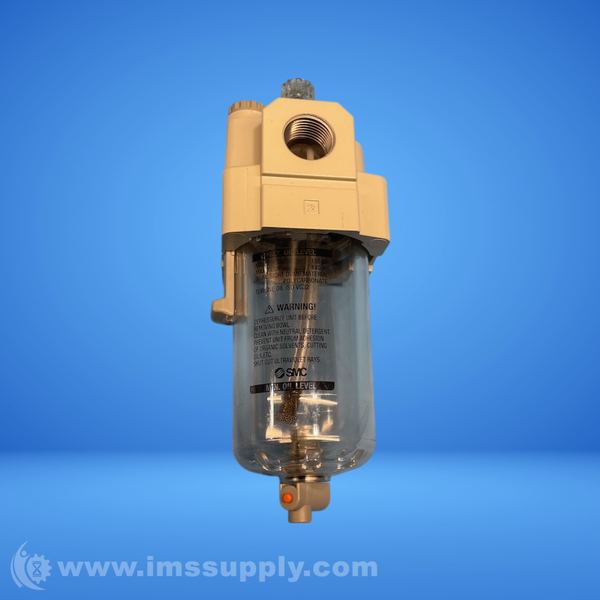

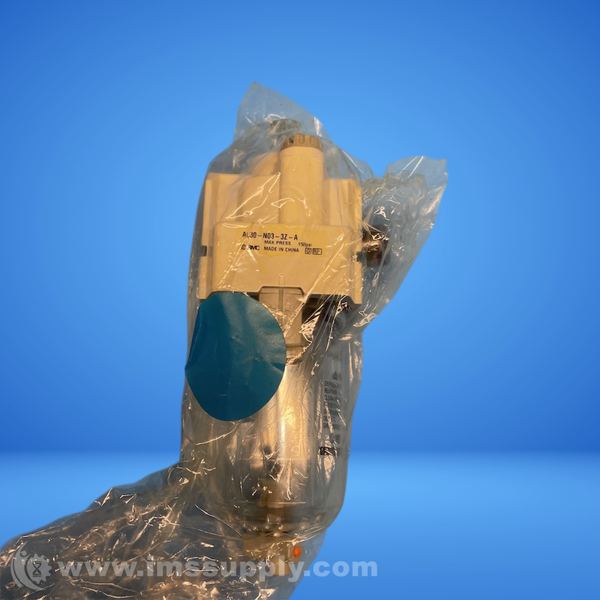

SMC AL30-N03-3Z-A Modular Lubricator
Modular style lubricator provides accurate lubrication of downstream equipment. The AL bowl is covered with a transparent bowl guard, allowing 360 monitoring. The oil drop rate is adjustable depending on equipment requirements.
Specifications
- Series: AL Mass Pro
- Port Size: 3/8 NPT
- Bowl Material: Polycarbonate
- Maximum Flow Rate: 60 cfm
- Oil Capacity: 1.86 oz
- Body Size: 30
- Operating Medium: Air
- Maximum Operating Pressure: 145 psi
- Operating Temperature Range: 23 to 140 degrees F
- Overall Length: 2.09 in
- Overall Width: 2.09 in
- Overall Height: 6.02 in
- Material: Die Cast Aluminum
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
