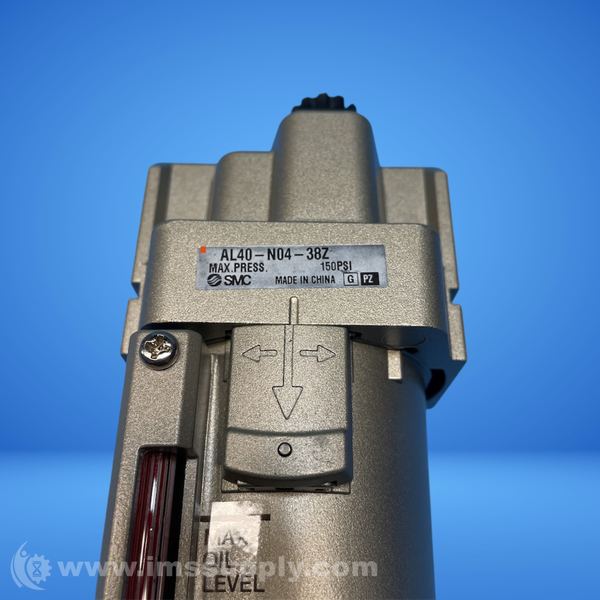

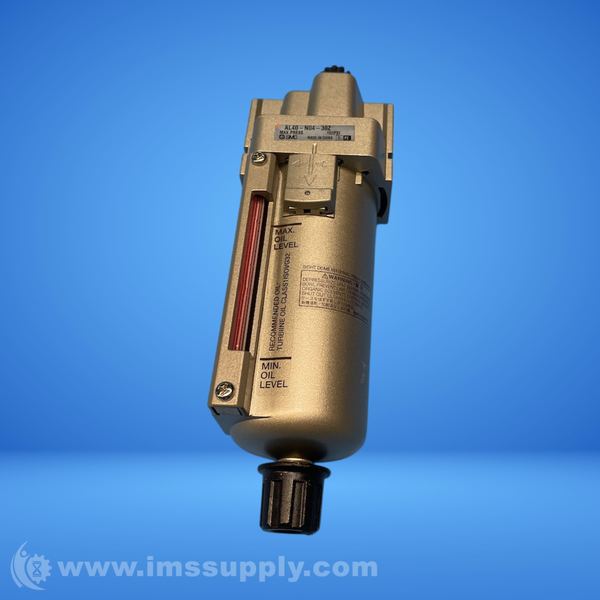

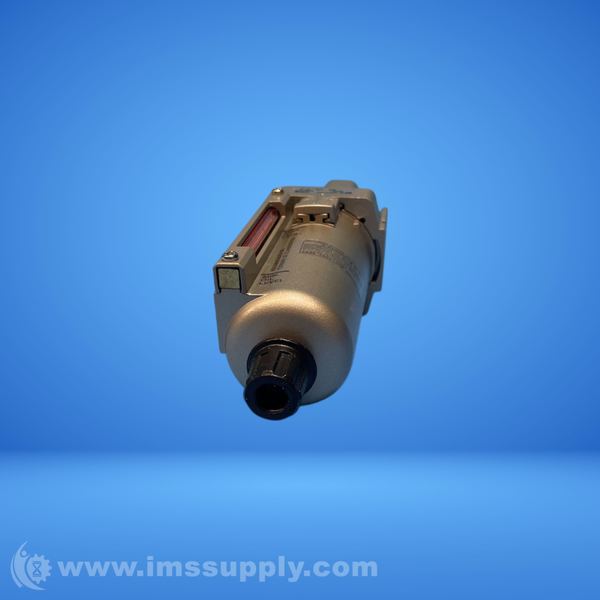

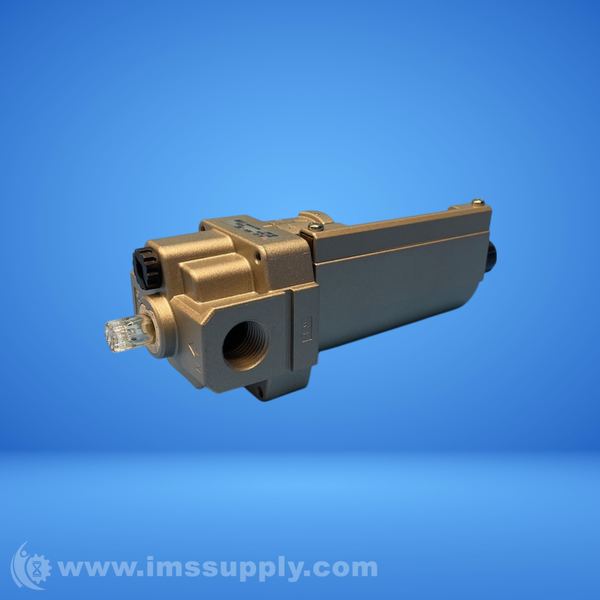

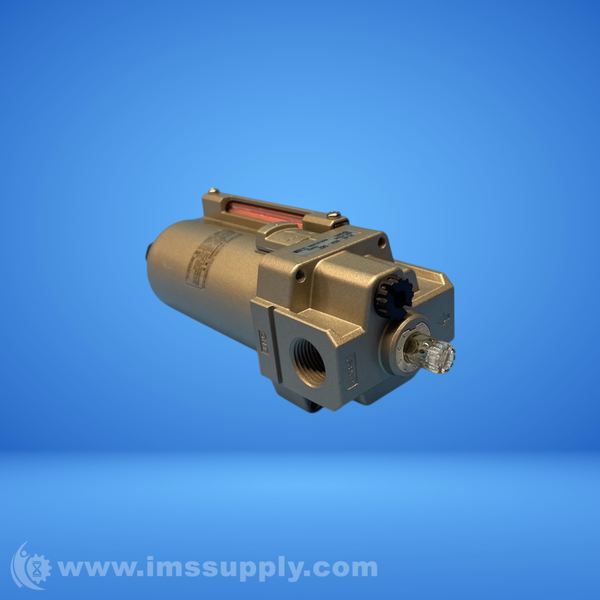

SMC AL40-N04-38Z LUBRICATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AL40-N04-38Z
IMS Product Code: 2124370
Packaging: Sold Individually
Description:
SMC AL40-N04-38Z Lubricator
SMC AL40-N04-38Z is a lubricator designed to deliver oil to downstream components, improving performance and reducing wear. It is part of an SMC FRL (Filter, Regulator, Lubricator) system. The lubricator features a modular design, allowing connection with other SMC air preparation equipment, and has an adjustable oil drop rate to meet specific equipment requirements.
Specifications
- Series: AL MASS PRO
- Modular Type: 1/2 MODULAR (NPT)
- Inlet Size: 1/2 in NPT
- Maximum Operating Pressure: 1 MPa, 145 psi
- Maximum Operating Temperature: 60 °C, 140 °F
- Minimum Operating Temperature: -5 °C, 23 °F
- Body Material: Die-Cast Aluminum
- Lubricator Bowl Material: Metal
- Oil Capacity: 135 mL, 4.56 oz
- Overall Width: 70 mm
- Overall Height: 176 mm, 6.97 in
- Overall Depth: 70 mm
- Air Flow Direction: Left to Right
- Recommended Lubricant: Class 1 ISO VG32, Class 1 Turbine Oil (ISO VG 32)
- Standards: RoHS Compliant, JIS
- Weight: 0.47 kg, 1.54323 lb, 640.75 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
