SMC AM550C-N06-TV MIST SEPARATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AM550C-N06-TV
IMS Product Code: 1862070
Packaging: Sold Individually
Description:

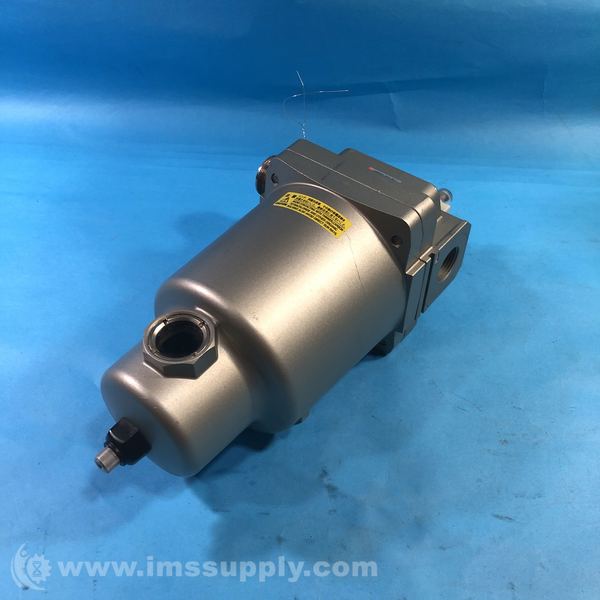

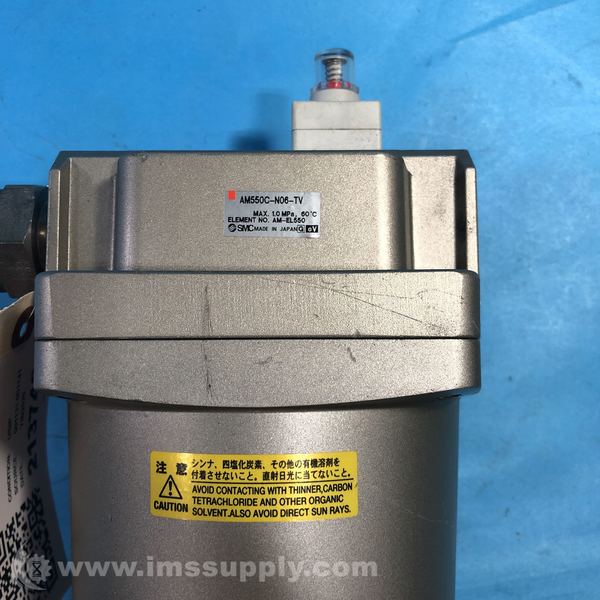

SMC AM550C-N06-TV Mist Separator
SMC AM550C-N06-TV is a mist separator designed to remove oil mist and solid particles as small as 0.3µm. It features a metal bowl with sight glass and manual drain. The product is part of the AM series and has a rated NPT port size of 3/4. The maximum operating pressure is 1.0 MPa, and the maximum operating temperature is 80 degrees C. The mist separator is designed to be used with standard fluids and has a filtration efficiency of 99.9% for particles 0.3µm or larger.
Specifications
- Manufacturer: SMC
- Model: AM550C
- Series: AM
- Rated Flow: 3700 l/min (ANR)
- Port Size: 3/4 NPT
- Mass: 2.1 kg
- Drain Type: Manual
- Bowl Options: Metal Bowl With Sight Glass
- Thread Standard: NPT
- Size: 550C
- Auto Drain: Without Auto Drain (With Drain Cock)
- Filtration Efficiency: 99.9% for particles 0.3µm or larger
- Maximum Operating Pressure: 1.0 MPa
- Maximum Operating Temperature: 80 degrees C
Used (Special):

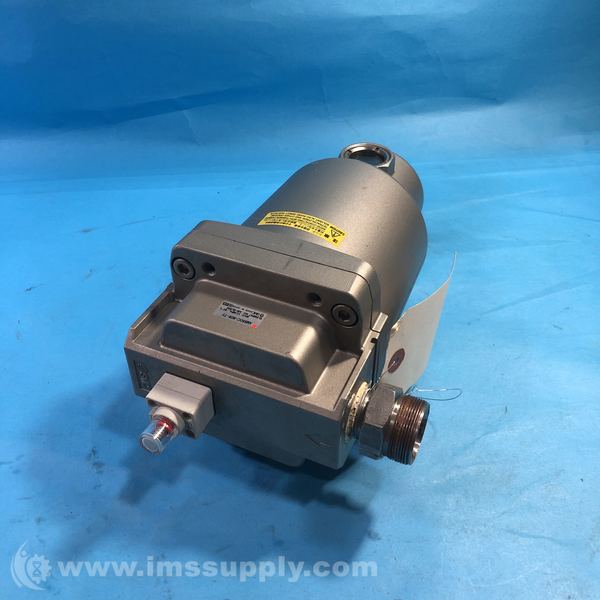

The product is connected to a fitting and additional pipe.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
