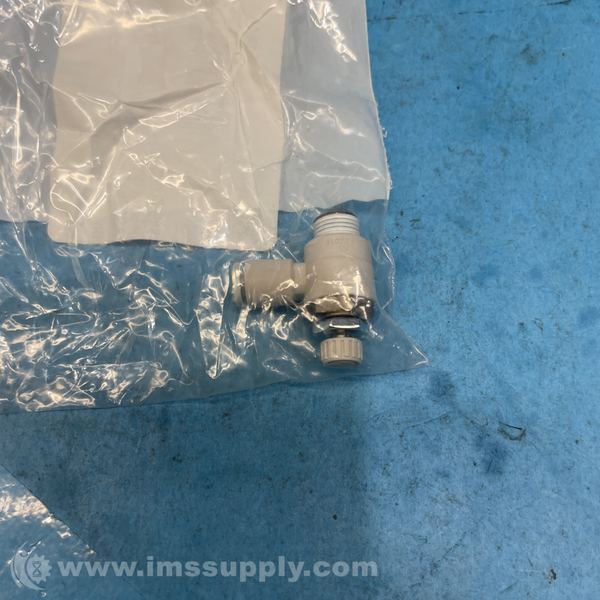

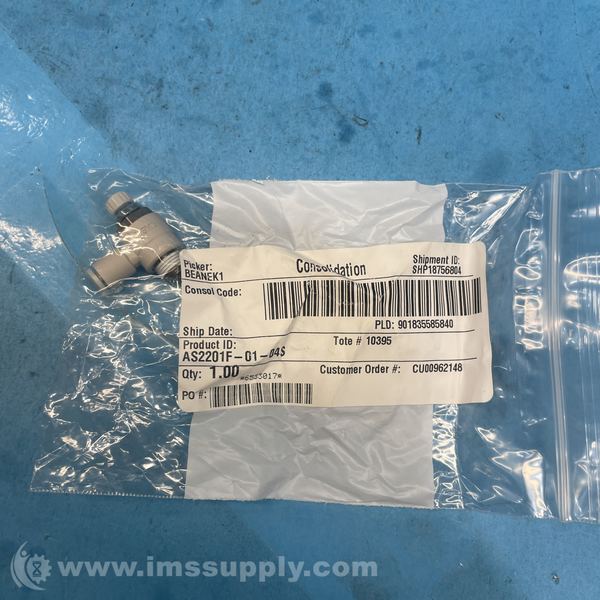

SMC AS2201F-01-04S ELBOW FLOW CONTROL
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AS2201F-01-04S
IMS Product Code: 1213058
Packaging: Sold Individually
Description:
SMC AS2201F-01-04S Elbow Flow Control
Elbow flow control valve with 1/8 port size and 4mm tube size
Specifications
- Series: AS***F
- Size: 1/8
- Thread Standard: INC (PT)
- Weight: .03617 lb
- Control method: 0 (meter-out)
- Lock nut: Standard (hexagon)
- Option: S (sealant)
- Port Size: 1/8
- Style: 2 (elbow)
- Tube size: 4
- Pressure Range: 0.1 to 1 MPa
- Flow Rate: 180 Lpm
- Body Material: PBT/Brass
- Piping Type: Elbow
- Metering: Meter Out
- Operating Medium: Air
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.1 to +1 MPa
- Operating Temperature Range: -5 to +60 degrees C
- Valve Function: Needle
- Port Connection Type: Push To Connect
- Output Port Type: 1/8 Female BSPT Threaded
- Overall Width: 14.2 mm
- Overall Height: 27.5 mm
- Overall Length: 35.2 mm
- Flow Coefficient Cv Flow Factor Kv: 2.7 mm
- Seal Material: Nitrile
- Standards Met: JIS
