SMC AS3201F-02-06S ELBOW SPEED CONTROL VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: AS3201F-02-06S
IMS Product Code: 1799000
Packaging: Sold Individually
Description:

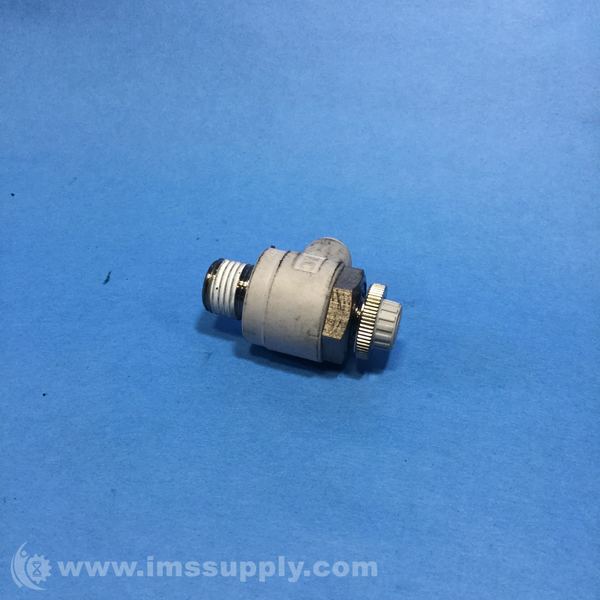

SMC AS3201F-02-06S Elbow Speed Control Valve
Elbow style speed control valve with push-to-connect tube connection and BSPT threaded output. Meter-out control with screw adjustment. Body made of brass/PBT with nitrile seal. For use with air, with operating pressure range of 0.1 to 1 MPa.
Specifications
- Series: AS3201F
- Body Material: Brass/PBT
- Seal Material: Nitrile
- Control Method: Meter Out
- Adjustment Type: Screw
- Port Connection Type: Push To Connect
- Output Port Type: 1/4 Female BSPT Threaded
- Operating Pressure Range: 0.1 to 1 MPa
- Operating Temperature Range: -5 to 60 degrees C
- Overall Length: 48.3 mm
- Overall Width: 23 mm
- Overall Height: 39.3 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 27 minutes.
