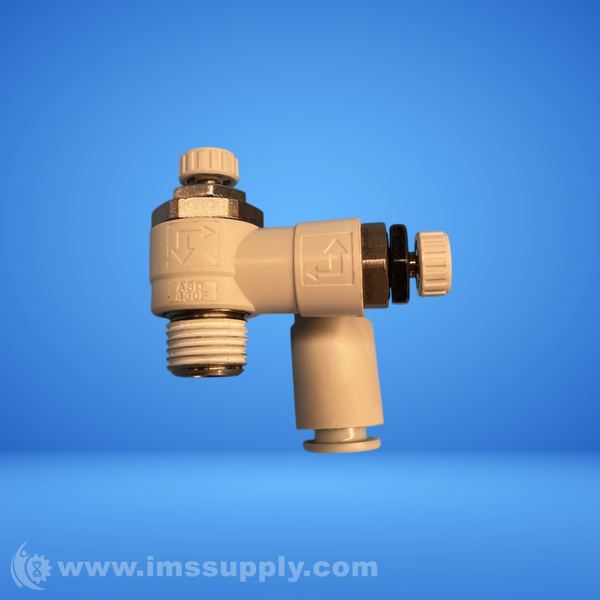

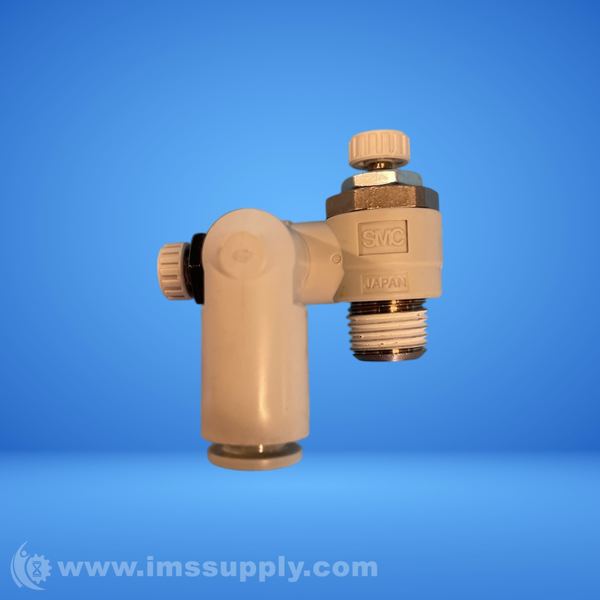

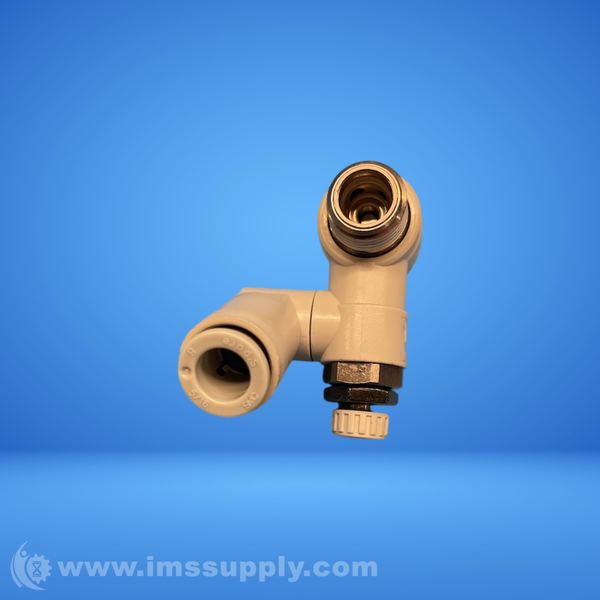

SMC ASD430F DUAL SPEED CONTROLLER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: ASD430F
IMS Product Code: 2121072
Packaging: Sold Individually
Description:
SMC ASD430F Dual Speed Controller
Dual speed controller with one-touch fitting, enables bi-directional flow control, meter-in and meter-out types.
Specifications
- Series: ASD
- Type: Dual Speed Controller
- Body Material: Brass, PBT
- Body Size: 1/4 Basis
- Flow Coefficient Cv Flow Factor Kv: 5.3 mm²
- Maximum Operating Pressure: +1 MPa
- Metering: Meter In, Meter Out
- Minimum Operating Pressure: +0.1 MPa
- Operating Medium: Air
- Operating Pressure Range: +0.1 to +1 MPa
- Operating Temperature Range: -5 to +60 °C
- Output Port Type: 1/4 Female NPT Threaded
- Overall Height: 40.4 mm
- Overall Length: 43.9 mm
- Overall Width: 18.5 mm
- Piping Type: Universal
- Port Connection Type: Push To Connect
- Port Size: 1/4
- Proof Pressure: +1.5 MPa
- Seal Material: Nitrile
- Standards Met: JIS
- Thread Standard: NPT
- Tube Size: 1/4 (OD)
- Valve Function: Needle
- Effective Area: 4.5 mm²
- Flow Rate: 295 l/min (ANR)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
